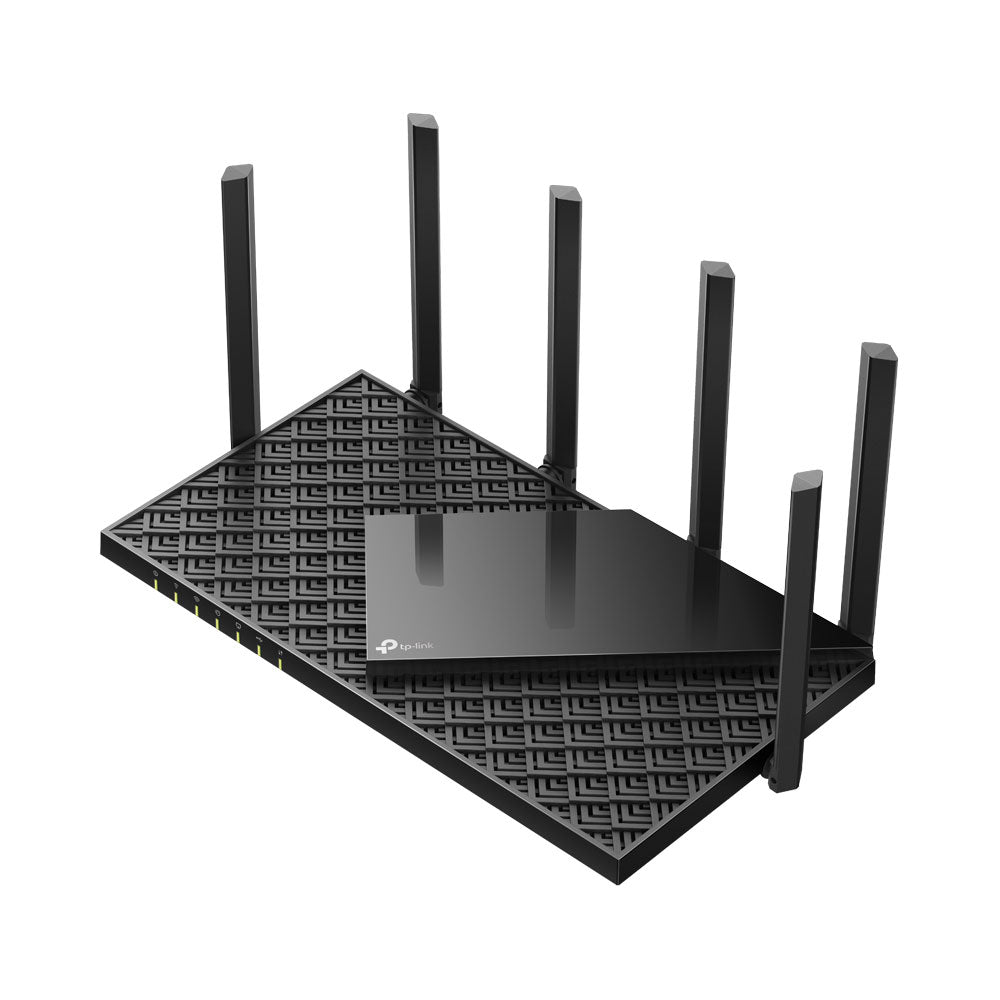

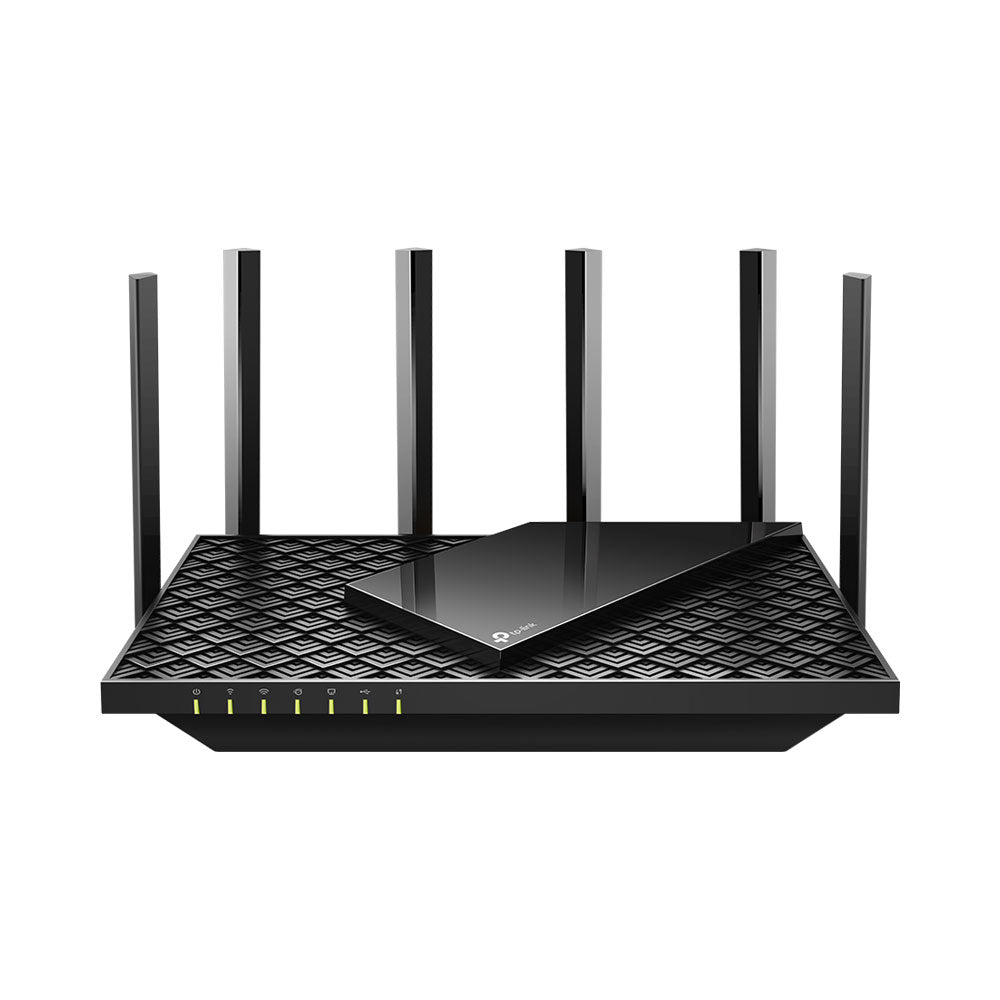

TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router
The TP-Link Archer AX73 is a high-performance AX5400 dual-band Wi-Fi 6 router designed to deliver ultra-fast wireless speeds, improved capacity, and reliable whole-home connectivity. Ideal for streaming, gaming, and smart homes, it provides smooth performance for multiple connected devices simultaneously.
Features
- Gigabit Wi-Fi for 8K Streaming
- Fully Featured Wi-Fi 6
- Connect 200+ Devices
- Extensive Coverage
- HomeShield
- More Vents, Less Heat
- USB Sharing
- Easy Setup
Wireless
- Standards: Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
- Wi-Fi Speeds: AX5400
- 5 GHz: 4804 Mbps (802.11ax, HE160)
- 2.4 GHz: 574 Mbps (802.11ax)
- 3 Bedroom Houses
- Wi-Fi Range
- 6× Fixed High-Performance Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
- Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
- Improves transmission power to strengthen signal coverage
4T4R
- Multiple streams in the same band strengthen the fault tolerance in transmission
Wi-Fi Capacity: High
Dual-Band
- Allocate devices to different bands for optimal performance
4×4 Mu-Mimo
- Simultaneously communicates with multiple MU-MIMO clients
Ofdma
- Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
- Improves network efficiency by limiting excessive occupation
Dfs
- Access an extra band to reduce congestion
6 Streams
- Connect your devices to more bandwidth
- Working Modes: Router Mode, Access Point Mode
Hardware
- Processor: 1.5 GHz Triple-Core CPU

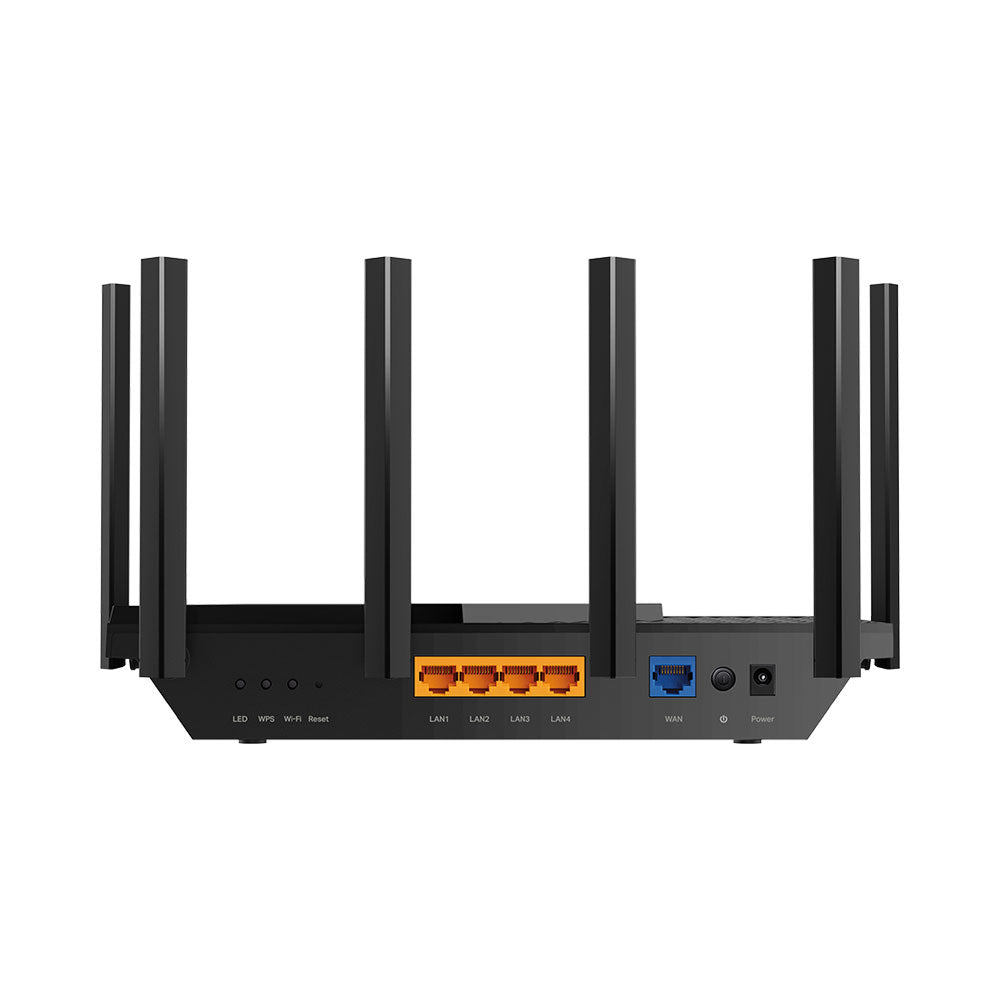

- Ethernet Ports: 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
- Static Link Aggregation (LAG) available with 2× LAN ports

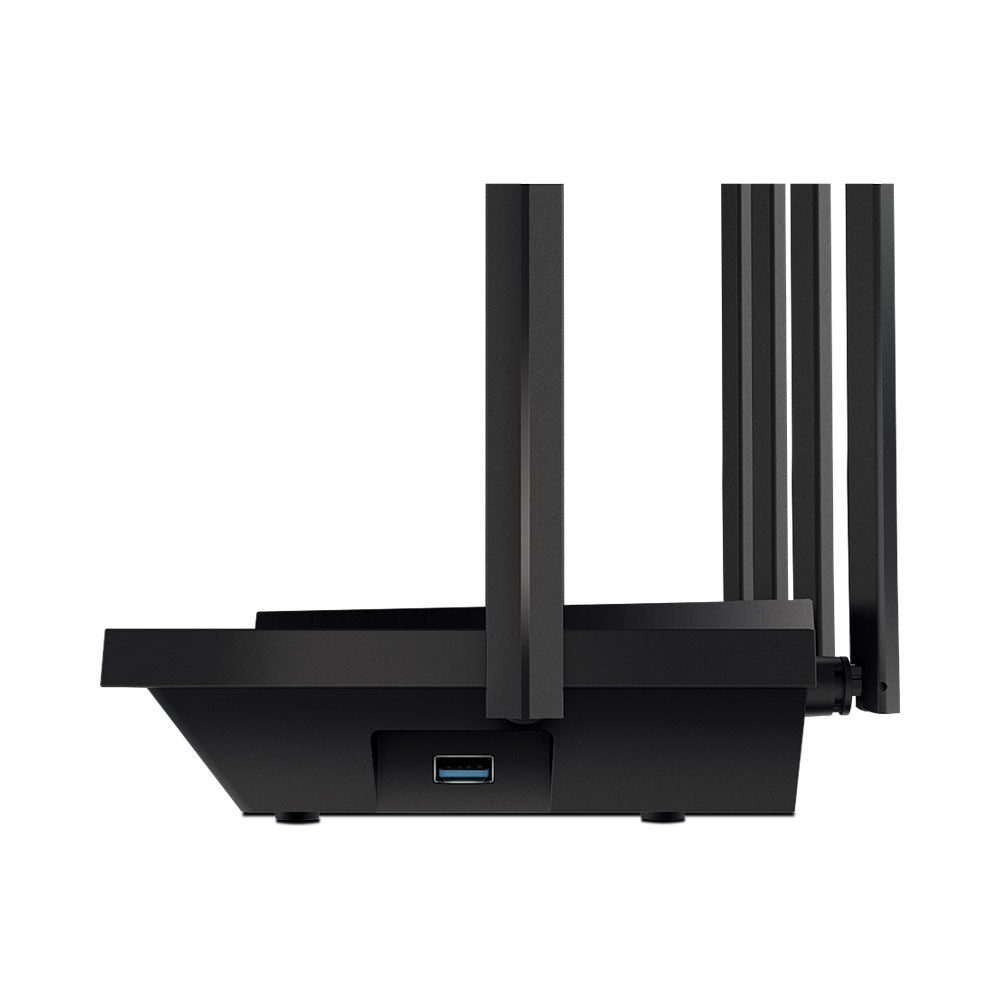

- USB Support1× USB 3.0 Port
- Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
- Apple Time Machine
- FTP Server
- Media Server
- Samba Server
- Buttons: Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
- Power: 12 V ⎓ 2.5 A
Security
- Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
- Network Security: SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
- Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
- VPN Server: OpenVPN
- PPTP
Software
- Protocols: IPv4, IPv6
- OneMesh: OneMesh Supported
Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
- HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- Cloud Service: Auto Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding: Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Virtual Server
- IPTV: IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP: Address Reservation
- DHCP Client List
- Server
- DDNS: TP-Link, NO-IP, DynDNS
- Management: Tether App
Physical
- Dimensions (W×D×H): 272.5 × 147.2 × 49.2 mm
- Package Contents: Wi-Fi Router Archer AX73
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Other
- System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
- Certifications:FCC, CE, RoHS
- Environment: Operating Temperature: 0°C~40°C (32℉ ~104℉)
- Storage Temperature: -40°C~70°C (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Test Data
- Wi-Fi Transmission PowerCE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
- Wi-Fi Reception Sensitivity 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
