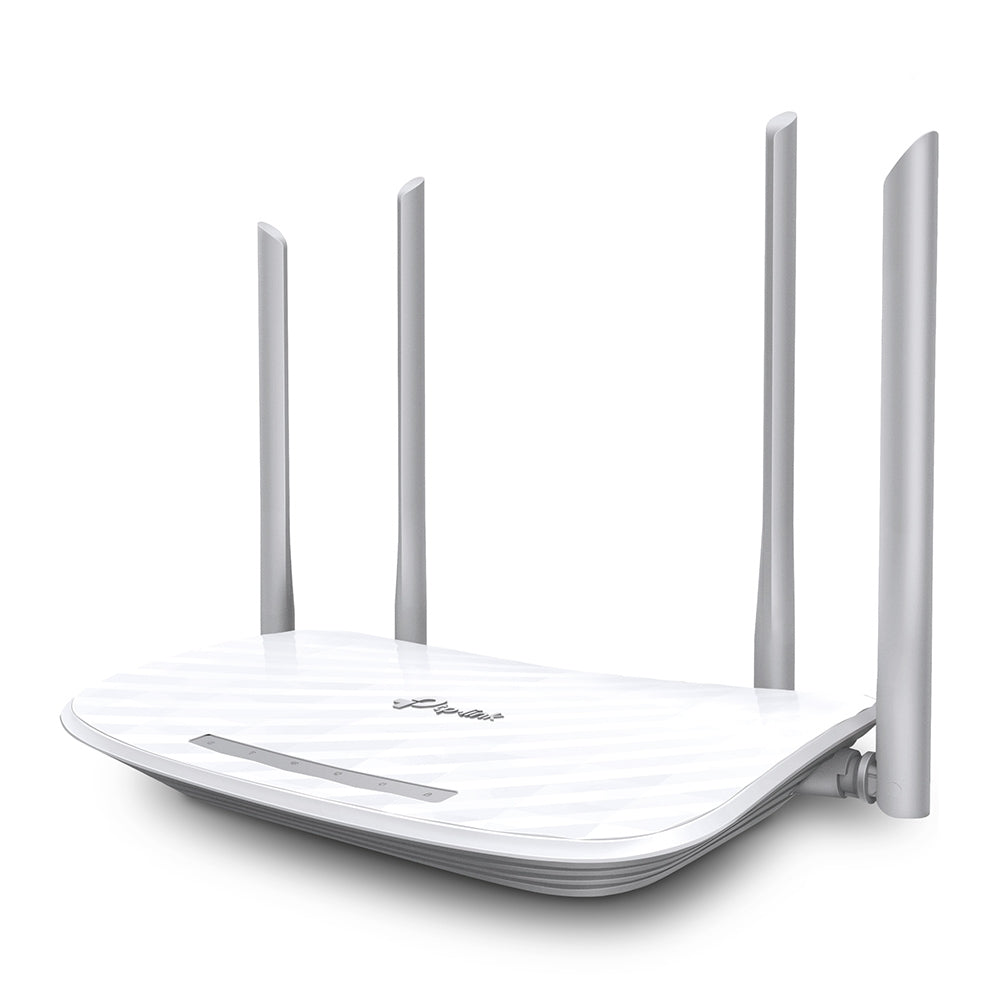

TP-LINK AC1200 WIFI DUAL BAND FE ROUTER

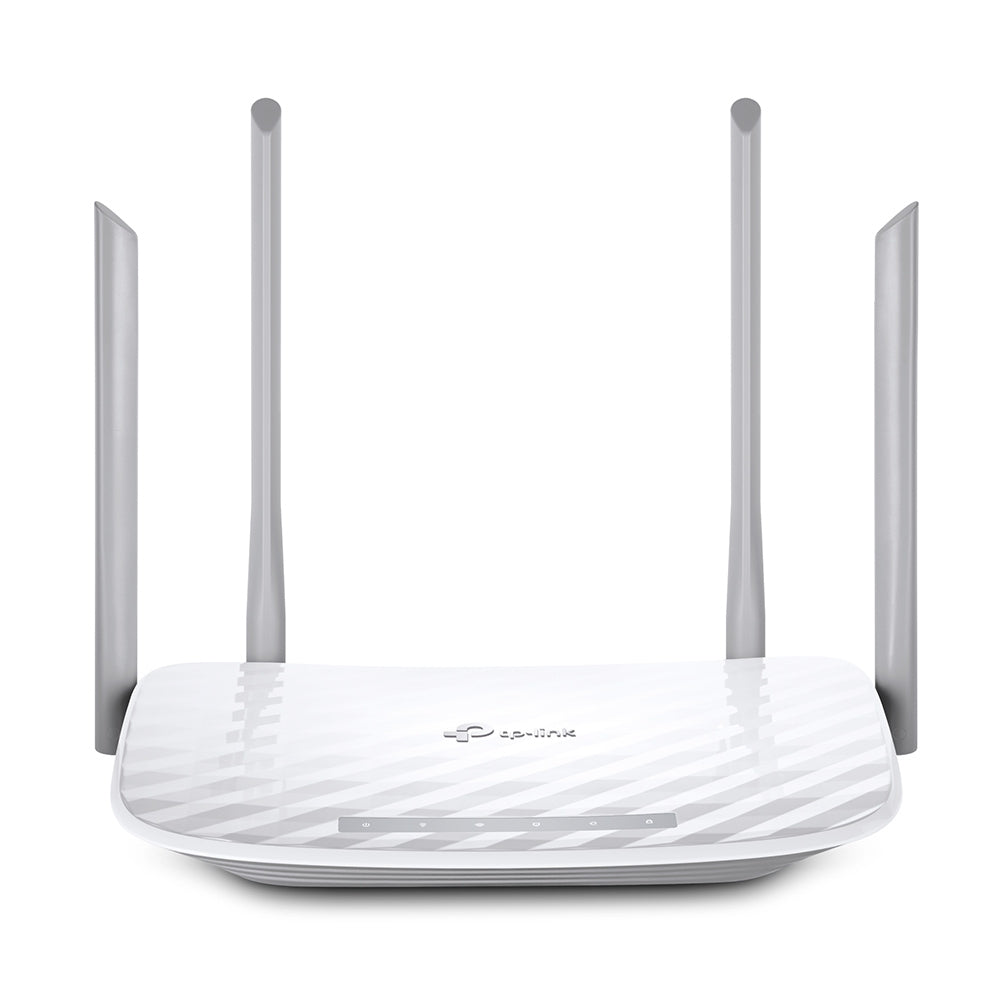

TP-Link Archer A5 AC1200 Wireless Dual Band Router

Features

• Supports 802.11ac standard
• Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1200Mbps of total available bandwidth
• 4 external antennas provide stable wireless connections and optimal coverage
• Easy network management at your fingertips with TP-Link Tether
• Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimise IPTV streaming
• Supports Access Point mode to create a new Wi-Fi access point

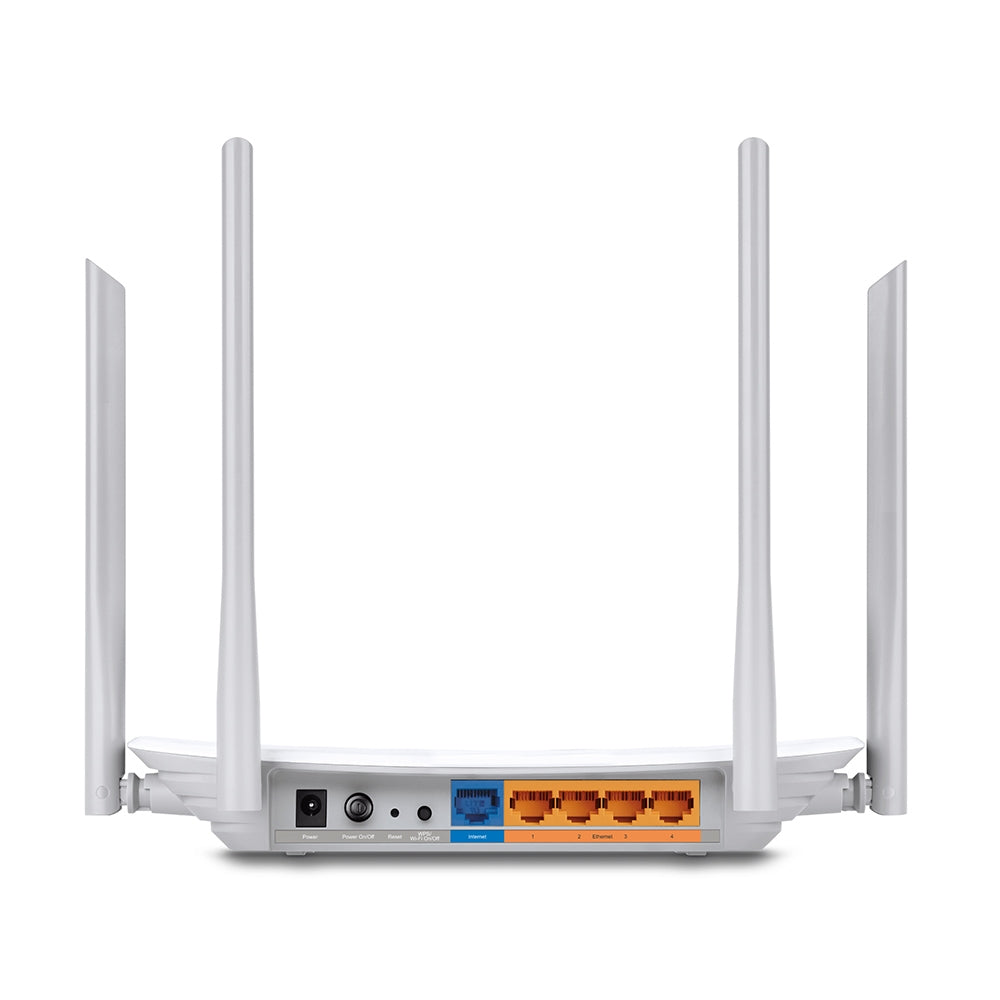

Hardware Features

• Interface4 10/100Mbps LAN Ports
• 1 10/100Mbps WAN Port
• ButtonReset Button
• WPS/Wi-Fi On/Off Button
• Power On/Off Button
• External Power Supply9VDC / 0.85A
• Dimensions ( W x D x H ) 229.87 x 144.19 x 36.85 mm
• Antenna Type4 External Antennas

Wireless Features

• Wireless StandardsIEEE 802.11n/g/b 2.4GHz
• IEEE 802.11ac/n/a 5GHz
• Frequency2.4GHz and 5GHz
• Signal Rate2.4GHz: Up to 300Mbps
• 5GHz: Up to 867Mbps
• Reception Sensitivity5GHz:
• 11a 54M: -73dBm
• 11ac VHT20 MCS8: -68dBm
• 11ac VHT40 MCS9: -64dBm
• 11ac VHT80 MCS9: -60dBm
• 2.4GHz:
• 11g 54M: -76dBm
• 11n HT20 MCS7: -74dBm
• 11n HT40 MCS7: -71d
• Transmit PowerCE:
• <20dBm(2.4GHz)
• <23dBm(5GHz)
• FCC:
• <30dBm
• Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless Security64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Software Features

• Quality of Service: WMM, Bandwidth Control
• WAN TypeDynamic IP/Static IP/PPPoE/ BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
• Management: tAccess Control
• Local Management
• Remote Management
• DHCPServer, Client, DHCP Client List,
• Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Control, Local Management Control, Host List, Access, Schedule, Rule Management
• Firewall Security: DoS, SPI Firewall
• IP Address Filter/MAC Address Filter/Domain Filter
• IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network × 1
• 5GHz guest network × 1

Others

• Certification: CE, FCC, RoHS
• Package Contents: AC1200 Wireless Dual Band Router Archer A5
• Power supply unit
• Ethernet Cable
• Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10
• MAC OS, NetWare, UNIX or Linux
• Environment: Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
