Pro'sKit 3PK-NT023N Tone and Probe Kit
The3PK-NT023N Tone & Probe Kit is a rugged cable-tracing tool set designed to help quickly identify wires or cables even in bundles, featuring a tone generator with three selectable outputs and continuity test mode, plus a probe with adjustable volume, visual signal strength indication, and compatibility with standard 9V battery operation
Features
- Fast, accurate wire identification
- Rugged industrial design
- Sends tone to identify wires
- Three selectable tone outputs
- Two-line polarity indication
- Continuity test
- Adjustable volume control
- Visual signal strength indication
- Powerful speaker for noisy environments
- Recessed telephone test set connectors
Specifications
Tone Frequency: 1kHz
Max. Testing distance: 1.5km
Max. Working Current: ≦20mA
Tone Mode: One / Two-note tone
Compatible Ccnnectors: De-energized AC wire, telephone/twisted pair wire, all voice
Continuity Test: 1 LED (≦10Ω), Coaxial cable & solid/ stranded wire by alligator clips patch cord
Max. Signal Voltage: 8Vp-p
LED Indicator: 1x Power indicator, 1x Phone line poliarity indicator, 1x Phone line status indicator
Voltage Protection: DC 48V
Low Battery Indication: 7V (Flashing Power Indication)
Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include)
Dimension (L x W x H): 65 x 58 x 34mm
Weight: 62g
Amplifier Probe
Frequency: 1kHz
Max. working current: ≦70mA
Function Selection: 4x Position mode switch (LED. NCV. OFF. SCAN)
Earphone Socket: 1x
Signal Status Indication: LED & Buzzer
NCV Indication: LED (AC 90~1000V)
LED Illumination: Yes
Power Indication: 1x LED
Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include)
Dimension (L x W x H): 230 x 56 x 25mm
Weight: 80g

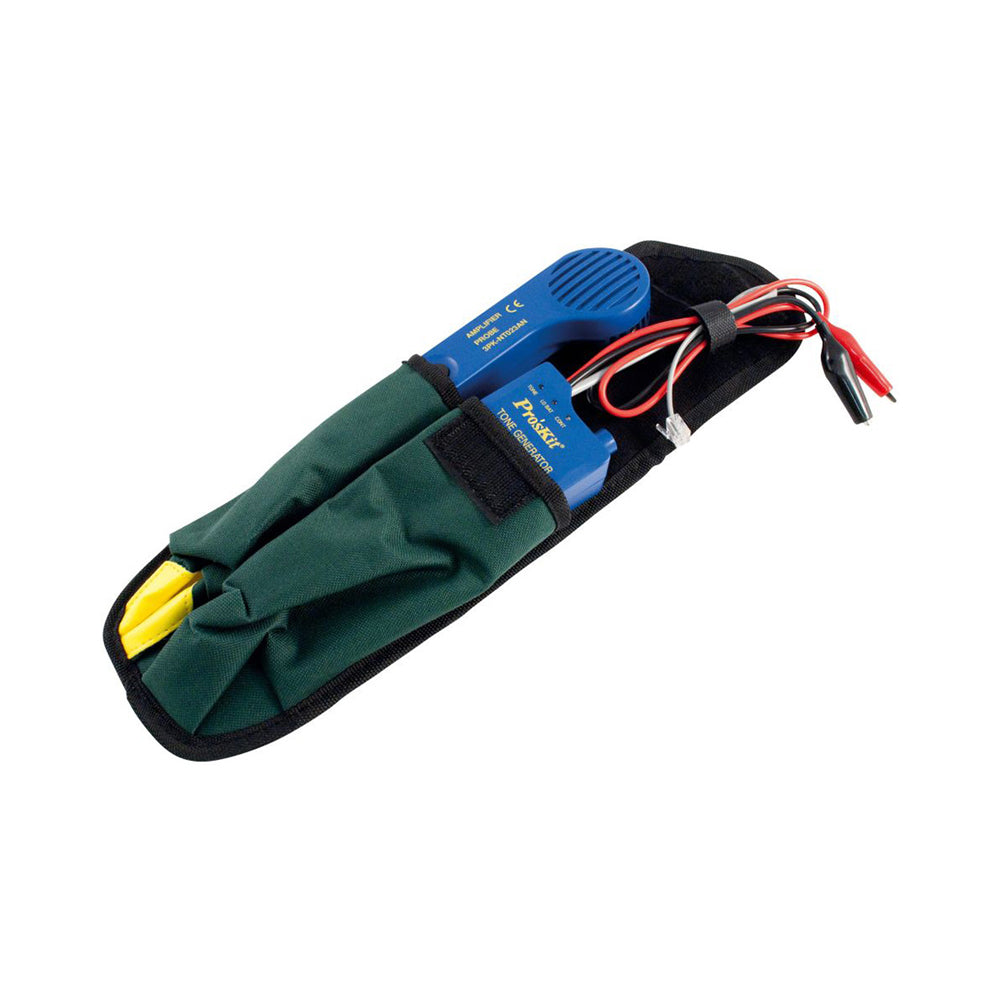

Accessory: 1x Storage bag
