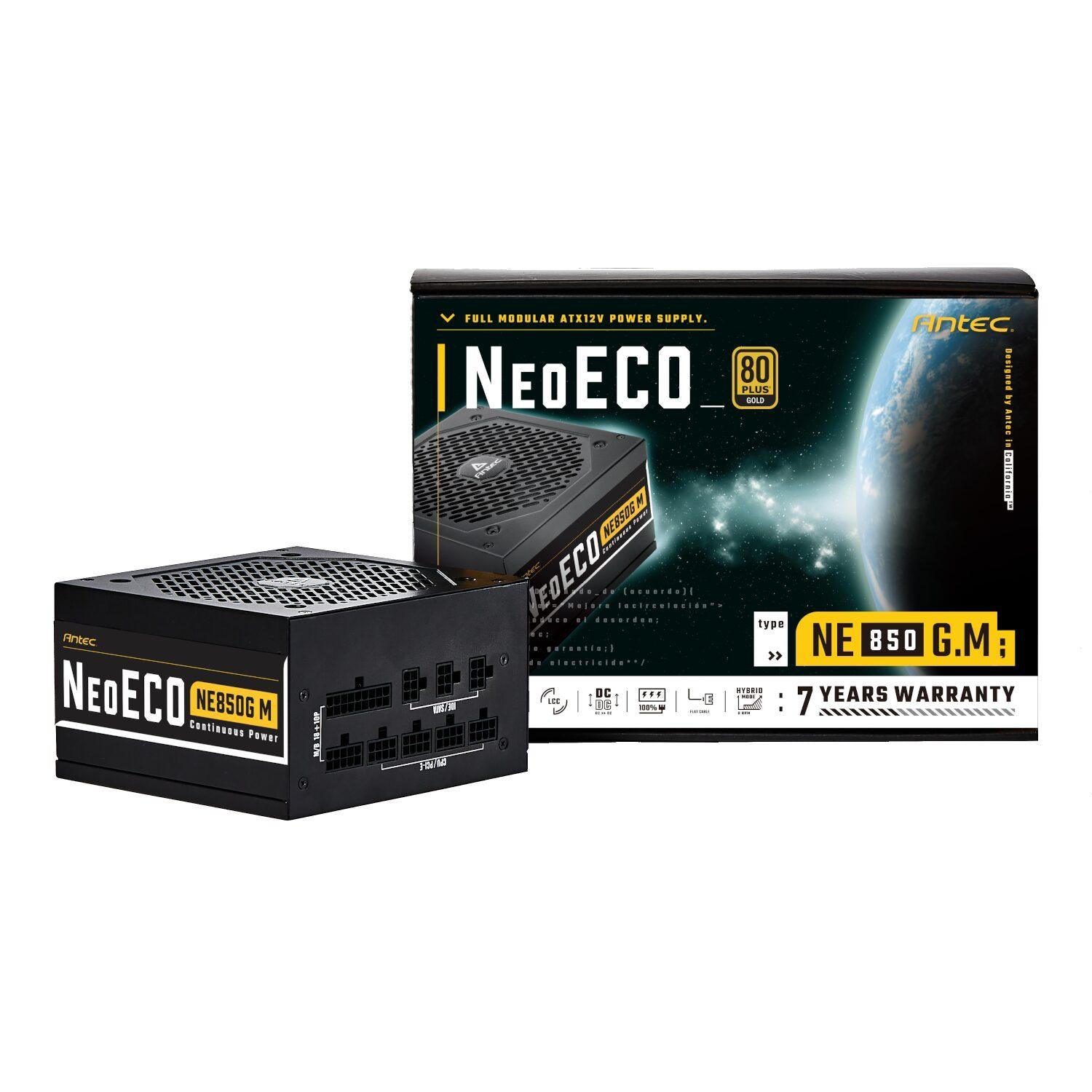

ANTEC NEOECO GOLD MODULAR 850W POWER SUP

FEATURES

• 850W continuous power output with over 99% on a resolute +12V rail
• 80 PLUS® Gold certified: Up to 92% efficiency under typical load
• PCIe 5.0 Ready: Includes native 12VHPWR cable for RTX 40 Series GPUs
• Half-Bridge LLC + DC-DC PhaseWave™ Design with synchronous rectification
• Silent 120mm FDB fan with Zero RPM mode for low-noise operation
• Fully modular design for best airflow and cable customisation
• High-grade Japanese capacitors ensure reliability and low ripple
• CircuitShield™ protection suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• Compact design for easy integration in mid and full tower chassis
• Backed by Antec’s trusted 7-year warranty

SPECIFICATIONS

Power Output

• Total Output: 850W Continuous
• Efficiency Rating: 80 PLUS® Gold (up to 92%)
• +12V Rail: >99% of total output (single rail)
• Active PFC: Yes
• Topology: Half-Bridge LLC + DC-DC
• PCIe 5.0 Support: Yes (native 12VHPWR included)

Cooling & Acoustics

• Fan Type: 120mm Silent Fluid Dynamic Bearing
• Zero RPM Mode: Yes (fan stays off under low loads)
• Thermal Control: Smart fan curve based on internal sensors

Cabling & Connectors

• Type: Fully Modular
• MB: 1 × 24(20+4) Pin
• CPU: 2 × 8(4+4) Pin EPS 12V
• GPU: 6 × 8(6+2) Pin PCIe, 1 × 16(12+4) Pin 12VHPWR
• Peripherals: 10 × SATA, 5 × Molex, 1 × FDD
• MBU: 28(18+10) pin future-ready socket

Electrical Specifications

• Input Voltage: 100–240 VAC
• Input Current: 10A Max
• Input Frequency: 50–60Hz
• Power Good Signal: 100–500ms
• Operating Temperature: 0°C – 40°C

Protection & Compliance

• CircuitShield™: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
• Certifications: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES

Physical Dimensions

• Size: 15cm (L) x 14cm (W) x 8.6cm (H)
• Net Weight: 1380g
• Gross Weight: 2710g

WHAT’S IN THE BOX

• Antec NeoECO Gold Modular 850W Power Supply Unit ×1
• Full modular cable kit ×1
• Power cable ×1
• Installation screws ×1
• Quick installation guide ×1
