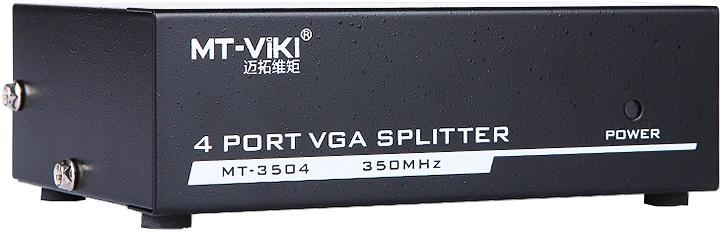

4 WAY VGA SPLTTER 350MHZ- MT-3504 MT-VIKI - 4 WAY VGA SPLTTER Features: One Video Input to 4 Video Outputs
Superior Video quality û up to 1920 x 1440 @ 60Hz
Supports up to 350MHz Bandwidth for High Performance Video
Long Distance Transmission û up to 45m
Supports VGA, SVGA, UXGA, WUXGA, and multisync
Support EDID (Default port 1)
Expandable û provides up to 4 Video Displays
Plug and Play û no Software Installation required

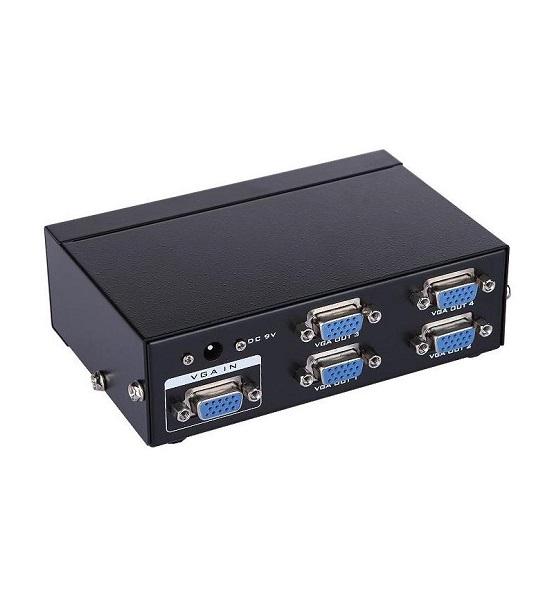

Video Input: Interface: 1 x HDB-15 Female (Blue)
Impedance: 75 Max Distance: 1.8 m
Video Output: Interface: 4 x HDB-15 Female (Blue)
Impedance:75
Video Max. Bandwidth: 350 MHz
Max. Resolutions: Up to 1920 x 1440
Max Distance: Up to 45 m
EDID Settings: Port 1 / Auto / Default
Power Connector: 1 x DC Jack
Consumption: DC 5V, 1A
Environment Operating Temp.: 0-50
Storage Temp.: -20 - 60
Humidity: 0-80% RH, Non-Condensing
Physical Properties Housing: Metal
Weight: 0.475kg
Dimensions: (L x W x H) 13 x 9 x 4cm
Package Contents: 1x User Manual, 1x Power Adapter
