Description
The NVIDIA® GeForce RTX™ 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics with DLSS 3. Experience ultra-high-performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
The Ada GPU architecture has been designed to provide revolutionary performance for ray tracing and AI-based neural graphics. It delivers a dramatically higher baseline of GPU performance and marks the tipping point for ray tracing and neural graphics.
The MSI GAMING SLIM series is a thinner variant of the GAMING series while maintaining high-performance capabilities and aggressive looks. The GAMING Slim series is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card. TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
A fan cowl extends beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoothly through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.
The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate and spread the heat along the full length of the heatsink. While Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat. Two sets of durable ball bearings spin the TORX fans for years of intense and lengthy gaming sessions. A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath. A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
FEATURES:
- Boost Clock - 2595MHz (Gaming and Silent)
- Memory Speed - 21 Gbps
- 24GB GDDR6X
- DisplayPort x2(v1.4a) / HDMI x2
- TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilise and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shaped heat pipes makes maximum contact with the GPU, and then spreads the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
- Dual BIOS gives you the choice to prioritise full performance in GAMING mode or low noise in SILENT mode.
SPECIFICATIONS:
- Graphics Processing Unit: NVIDIA® GeForce RTX® 4090
- Interface: PCI Express® Gen 4
- Core Clocks:
- Extreme Performance: 2610 MHz (MSI Center)
- Boost: 2595 MHz (Gaming and Silent Mode)
- CUDA® Cores: 16384 Units
- Memory Speed: 21 Gbps
- Memory: 24GB GDDR6X
- Memory Bus: 384-Bit
- Output:
- DisplayPort x 2 (v1.4a)
- HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
- HDCP Support: Yes
- Power Consumption: 450W
- Power Connectors: 16-pin x 1
- Recommended PSU: 850W
- DirectX Version Support: 12 Ultimate
- OpenGL Version Support: 4.6
- Maximum Displays: 4
- G-Sync® Technology: Yes
- Digital Maximum Resolution: 7680x4320
- Product Dimensions: 32.2 x 13.6 x 6.2 cm
- Product Weight: 1777g
WHAT'S IN THE BOX:

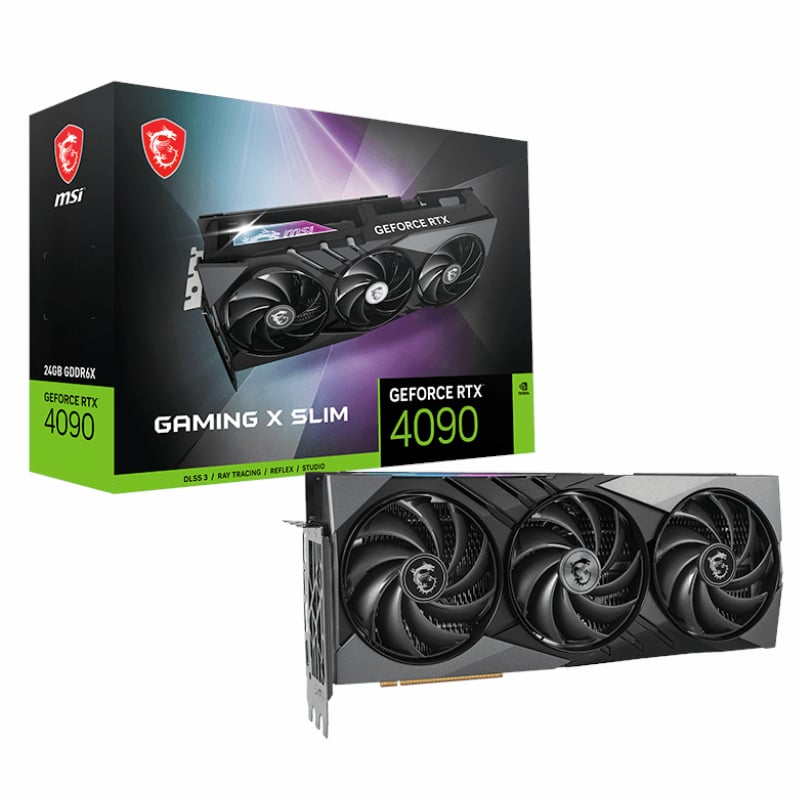

- MSI Nvidia GeForce RTX 4090 Gaming Slim 24GB 384-Bit Graphics Card - Black x1
