Description
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan. The bevelled edges are polished several times with a diamond-tipped cutter to achieve a mirror finish. Clean sharp lines emphasize the metal construction to sight and touch. The motif of straight lines continues around the fans with octagonal cutouts featuring polished 45-degree bevelled edges.
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI. TORX FAN 5.0 incorporates design improvements that result in a +23% increased airflow compared to an axial fan. For additional cooling, the solid nickel-plated copper base is CNC machined from a single piece of metal. Precision cuts and no welds allow heat from the GPU and memory to be immediately captured by the copper baseplate and then rapidly transferred to the heatsink.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate to then spread heat along the full length of the heatsink. Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise. Updated heat pipe pathing has allowed more space for additional heatsink fins.
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow. Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the centre, pushing out warm air faster like a nozzle. Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
FEATURES:
- Extreme Performance – 2760MHz (MSI Center)
- Boost Clock – 2745 MHz (GAMING & SILENT Mode)
- Memory Speed – 21Gbps
- 12GB GDDR6X
- Three DisplayPort and one HDMI Port
- TRI FROZR 3S Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
SPECIFICATIONS:
- Graphics Processing Unit: NVIDIA® GeForce RTX™ 4070 Ti
- Interface: PCI Express® Gen 4
- Core Clocks: Extreme Performance: 2760 MHz (MSI Center), Boost: 2745 MHz (GAMING & SILENT Mode)
- CUDA® Cores: 7680 Units
- Memory Speed: 21Gbps
- Memory: 12GB GDDR6X
- Memory Bus: 192-bit
- Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
- HDCP Support: Yes
- Power Consumption: 285W
- Power Connections: 16-pin x1
- Recommended PSU: 750W
- DirectX Version Support: 12 Ultimate
- OpenGL Version Support: 4.6
- Maximum Displays: 4
- G-Sync® Technology: Yes
- Digital Maximum Resolution: 7680 x 4320
- Product Dimensions: 33.8 x 14.2 x 7.3 cm
- Product Weight: 2019 g
WHAT’S IN THE BOX:

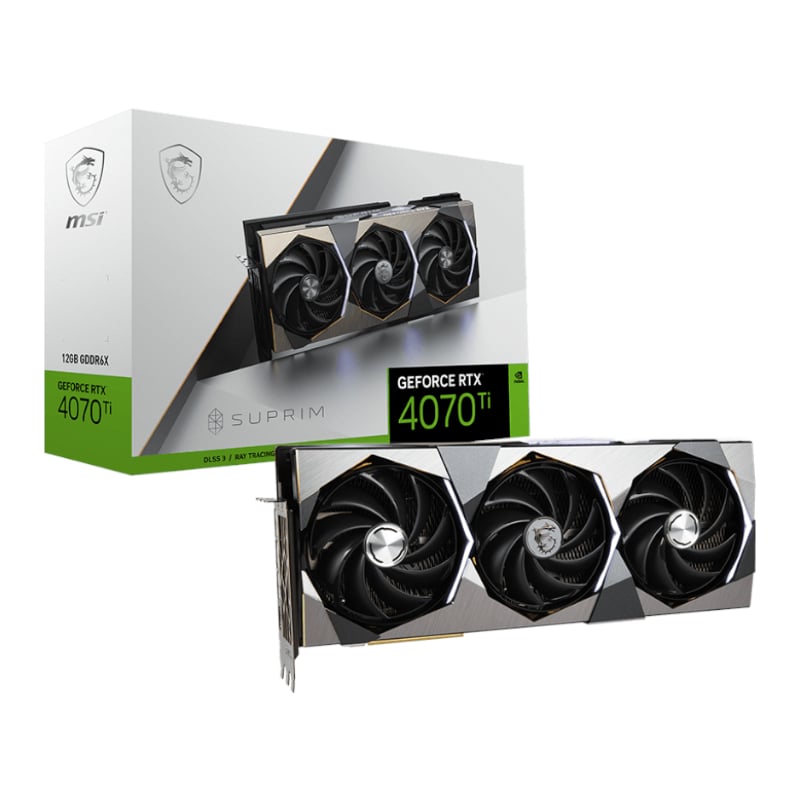

- MSI GeForce RTX 4070 Ti SUPRIM 12G Graphics Card – Grey x1
