Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience superfast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
GAMING X SLIM series is a thinner variant of the GAMING series while maintaining high-performance capabilities and aggressive looks.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain a high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate and spreads the heat along the full length of the heatsink.
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
FEATURES:
- Boost Clock / 2670MHz
- Memory Speed / 21Gbps
- 16GB GDDR6X
- DisplayPort x 3 / HDMI x 1
- TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
SPECIFICATIONS:
- Graphics Processing Unit: NVIDIA® GeForce RTX™ 4070 Ti SUPER
- Interface: PCI Express® Gen 4
- Core Clocks: Extreme Performance: Extreme Performance: 2685 MHz (MSI Center), Boost: 2670 MHz
- CUDA® Cores: 8448 Units
- Memory Speed: 21Gbps
- Memory: 16GB GDDR6X
- Memory Bus: 256-bit
- Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
- HDCP Support: Yes
- Power Consumption: 285W
- Power Connections: 16pin x 1
- Recommended PSU: 700W
- DirectX Version Support: 12 Ultimate
- OpenGL Version Support: 4.6
- Maximum Displays: 4
- G-Sync® Technology: Yes
- Digital Maximum Resolution: 7680 x 4320
- Product Dimensions: 30.7 x 12.5 x 5.1 cm
- Product Weight: 1094g
WHAT'S IN THE BOX:

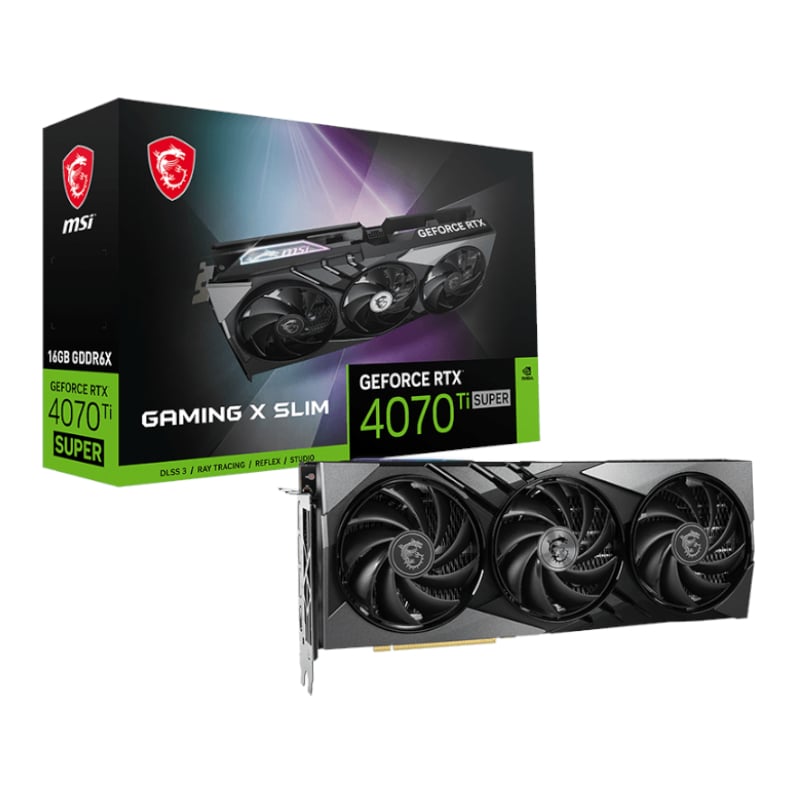

- MSI GeForce RTX™ 4070 Ti SUPER 16G GAMING X SLIM Graphics Card – Black x1
