The MSI MAG series stands by gamers in their quest for honour. These gaming products were revitalised as symbols of sturdiness and durability with the incorporation of military-inspired elements.
The MAG CORELIQUID Series, which has recently been introduced, offers a comprehensive range of features that make it an ideal choice for a liquid cooler. It boasts high-quality materials that ensure long-lasting durability, along with highly efficient heat dissipation technologies. Users can also enjoy perks such as ARGB lighting and a user-friendly 270-degree rotating blockhead. Additionally, the blockhead proudly showcases a distinctive and unconventional aesthetic that exudes both style and artistic flair. The MAG CORELIQUID Series is meticulously designed to prioritise effective cooling without making any compromises.
The pump has been integrated into the radiator to provide sound dampening and reduce noise. Furthermore, by placing the pump into the radiator, its life expectancy is increased as it is moved away from the heat source. The heat is rapidly dissipated through a split pathway in the radiator, and the cooled liquid is subsequently pumped back into the loop. It is made up of three layers of netted plastic tubing and has a reinforced mesh exterior. Easily connect and synchronise MSI coolers and cases using conveniently placed pin-header locations, which even include a dedicated pump-fan header.
FEATURES:
- 360mm Radiator with three 120mm ARGB Fans
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. The cooled liquid is then pumped back into the loop
- Intel and AMD CPU Compatible
- LGA1700 socket support
- AMD socket AM5 support
- Mount the cold plate at any orientation, and turn the water blockhead up to 270 degrees
SPECIFICATIONS:
- Radiator Size: 360 mm
- Radiator Dimensions: 397 x 120 x 27 mm
- Radiator Material: Aluminum
- Water Cooling Tube Material: Black Rubber + Mesh
- Number of Fans: 3
- Fan Dimensions: 120 x 120 x 25 mm
- Fan Air Flow: 21.63 ~ 78.73 CFM
- Fan Bearing: Two Ball Bearing
- Fan Life Expectancy: 70,000 hours
- Fan Rated Current: 0.35 A
- Fan Power Consumption: 4.2 W
- PWM Mode: YES
- Cable Length (PWM Cable): 350 mm / 13.78 inches
- Fan Lighting: ARGB
- Pump Life Expectancy: 100,000 Hours
- Pump Noise Level: 20 dBA
- Pump Rated Current 0.38 A
- Pump Power Consumption 4.56W
- Pump Speed: 3100 RPM ± 10%
- Pump Connector: 3 Pin
- Cold Plate Material: Copper + Plastic
- Block Dimensions: 67.26 x 59.95 x 55.9 mm
- Intel Socket Support: LGA 1150/1151/1155/1156/1200/1700, LGA 2011/2011-3/2066
- AMD Socket Support: AM5/AM4/TR4
WHAT’S IN THE BOX:

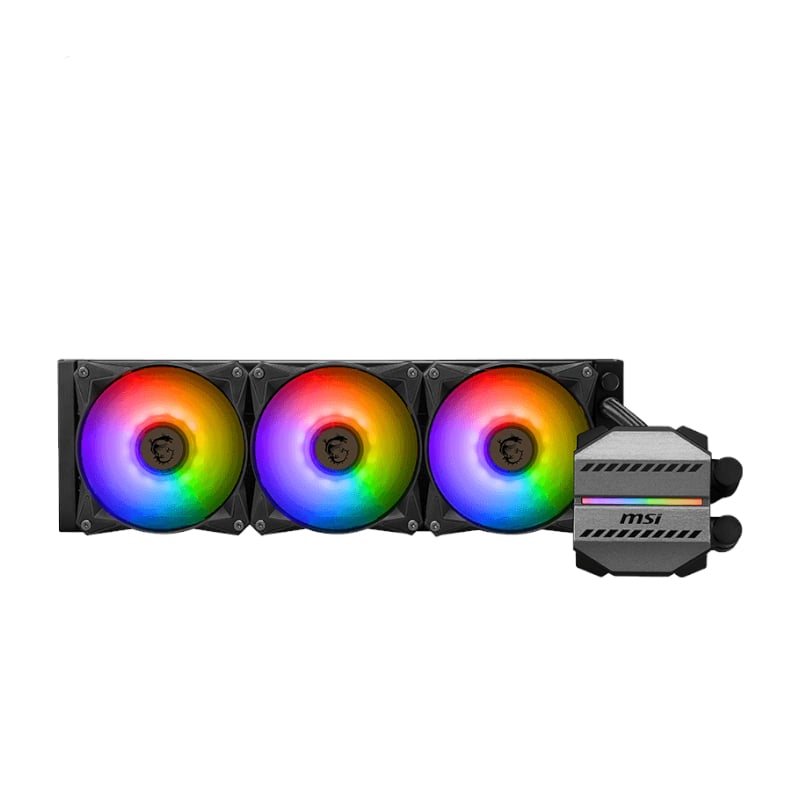

- MSI MAG Coreliquid M360 ARGB AIO Liquid CPU Cooler – Black x1
- Quick Installation Guide x1
