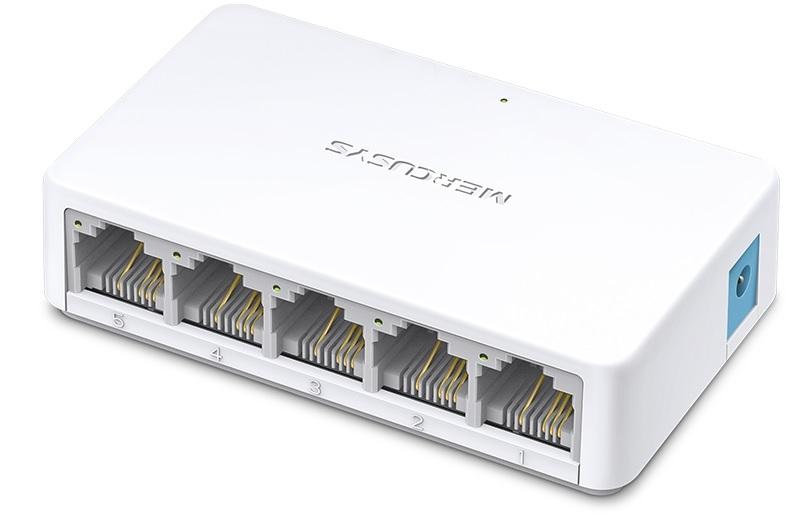

MERCUSYS 5 PORT 10/100 SWITCH - MS105
5 Port 10/100Mbps Desktop Switch
Five 10/100Mbps Auto-Negotiation RJ45 Ports with Auto MDI/MDIX Supported
The MS105 is flexible and is fully compatible with Computers, Printers
IP Cameras, Smart TVs, Game Consoles, and more
This makes it perfect for Home, Small Office, and even Dormitory Environments
Easily Wired Network Expansion
Compact Design for flexible arrangement
Plug and Play setup, no Configuration required
Specifications
Hardware
Dimensions (W X D X H) 82 x 49 x 21 mm
Interfaces
5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power Supply
External Power Adapter
(Output: 5.0VDC/0.6A)
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity
Fanless
Data Rates
10/100Mbps at Half Duplex
20/200Mbps at Full Duplex
Buffer Capacity
768Kb
Jumbo Frame
2KB
Switching Capacity
1Gbps
LED
Ethernet (1, 2, 3, 4, 5), Power
Others
Certifications
CE, RoHS
Package Contents
5-Port 10/100Mbps Desktop Switch
MS105
Power Adapter
Quick Installation Guide
Environment
Operating Temperature: 0 C-40 C (32 F-104 F)
Storage Temperature: -40 C-70 C (-40 F-158 F)
Operating Humidity: 10% - 90% Con-Condensing
Storage Humidity: 5%- 90% Non-Condensing
