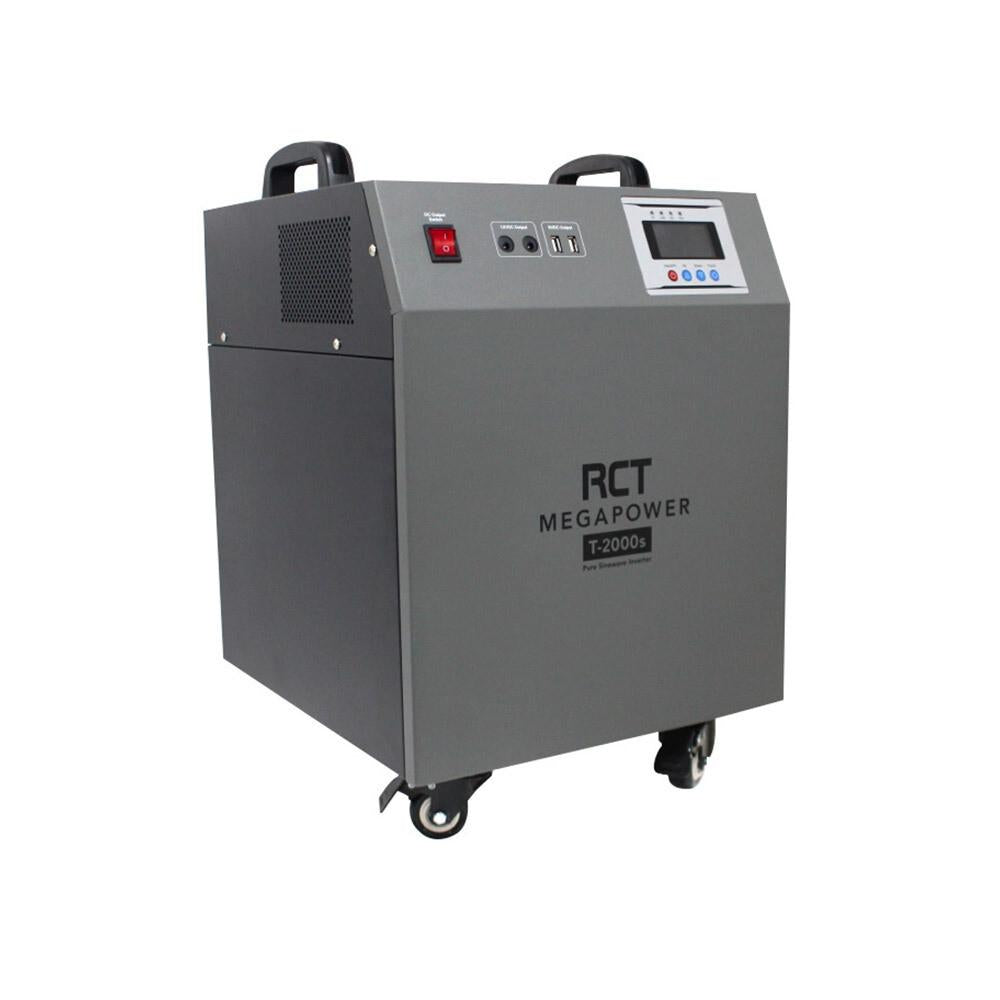

RCT MEGAPOWER 2KVA/2000W INVERTER TROLLEY - MP-T2000S
RCT MEGAPOWER 2KVA/2000W INVERTER TROLLEY WITH 2 X 100AH BATTERIES - (Lead Acid Battery)
SPECIFICATION
Pure Sinewave for Sensitive Electronics & Motorized Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-In MPPT Solar Charger
2 x USB 5 V DC Output and 2 x 12 V DC Output
Battery Cut Off Switch for safety
Pre-Installed Batteries
Inverter Battery
Rated Power: 2000 W.
Output Voltage: 220 VAC.
Output Frequency: 50 / 60 Hz.
Output Waveform: Pure Sine Wave.
Battery Voltage: 24V.
Battery Specifications: 100Ah 12V x 2.
Solar Input
Maximum Photovoltaic Voltage (VDC): = 150 V
Charge Voltage (VDC): 35 V - 150 V
Rated Charge Current (A): 30 A
Maximum Power (Wp): 800 Wp
Voltage Overcharge Protection (VDC): 28.4 V
Voltage Overcharge Recovery (VDC): 28.0 V
Voltage Of Floating Charge (VDC): 27.4V
DC Output
Voltage Of High-Voltage Protection (VDC): 32 V
Voltage Of High-Voltage Recovery (VDC): 32.4 V
Voltage Of Low-Voltage Recovery (VDC): 25.2 V
Voltage Of Low-Voltage Protection (VDC): 22V
5 V DC USB Output Port: 2 Units / MAX 2 A
12 VDC Output Port: 2 DC Ports (Max 2 A)
Starting Temperature Of The Exhaust Fan: > 45ºC
Ambient Temperature For Operation: 0 - 40ºC
Ambient Temperature For Storage: -25 - +55ºC
Operation / Storage Conditions: 0-90% (No Condensation)
General
Charge By A Mains Supply Rated Voltage: 220VAC.
Charge Current: 30A(max).
Product Dimensions: 380 mm x 380 mm x 520 mm.
Battery
Battery (2 x 12V/100Ah)
Rated Voltage: 12V/Battery (Note this is a 24V System).
Capacity (10hr,1.80V/Cell): 100Ah.
Weight: 31.5Kg.
Max Discharge Current: 30I10A(3min).
Max Charge Current: =0.25A C10.
Self- Discharge (25?): =3%/month.
Recommended Using Temperature: 15°C - 25C.
Cover Material: ABS.
Dimensions: 407mm x 174mm x 209mm.
6 Months Warranty
