Description

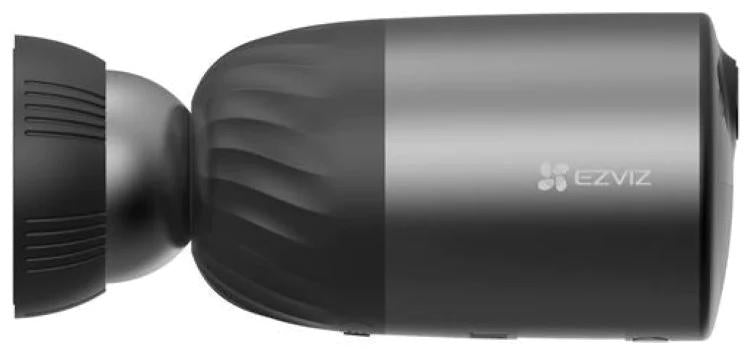

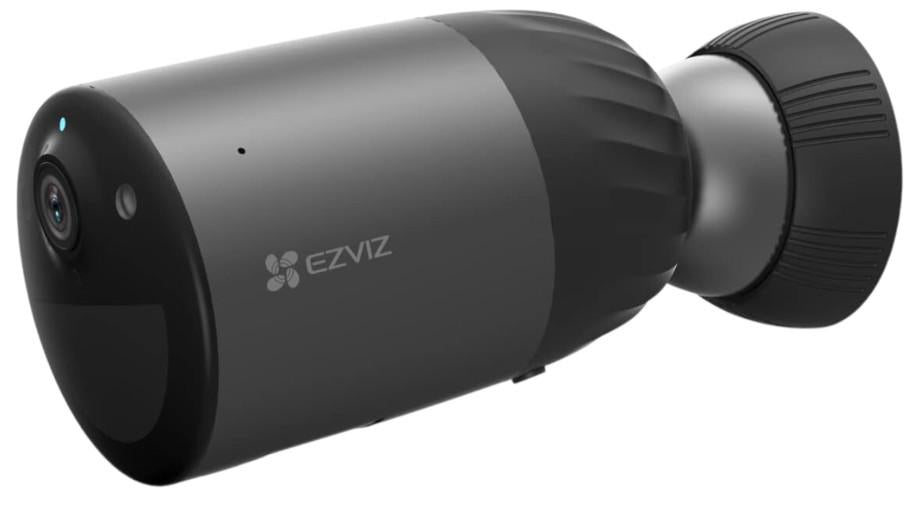

EZVIZ BATTERY POWERED CAMERA - BC1C
EZVIZ eLife
BC1C Battery-Powered Camera
Specifications
Model Parameters
Model: CS-BC1C
Camera Parameters
Image sensor: 1/2.8 2-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.2 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8 mm @ F1.6;125 (Diagonal), 107 (Horizontal)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
Night Vision: 10 m
Video & Audio
Max Resolution: 1920 × 1080
Frame Rate: 50Hz @ 15fps, 60Hz @ 15fps. Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Minimum Network Requirement: 2Mbps
Function
Smart Alarm: AI Human Detection
Customized Alert Area: Supports
Two-way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Build-in 32GB eMMC Storage
Cloud Storage: EZVIZ Cloud Storage
General
Operating Conditions: -20°C to 50°C (-4°F to 122 °F ), Humidity 95% or less (non-condensing)
IP Grade: IP 66
Power Supply: DC 5V/2A
Battery Capacity: 7800 mAh
Power Consumption: Max. 5W
Product Dimensions: 04.76 × 62.80 × 62.80 mm (4.12 × 2.47 × 2.47 inch)
Packaging Dimensions: 186.0 × 103.0 × 103.0 mm (7.3 × 4.0 × 4.0 inch)
Weight Product: 365 g (12.8 oz) With Package: 835 g (28.4 oz)
In The Box
In The Box: BC1C Camera
Magnetic Base
Screw Base
Power Adapter
USB Cable
Mounting plate
Drill template
Screw Kit
Regulatory Information
Quick Start Guide
Certifications:
Certifications: CE/FCC/WEEE/ROHS/REACH/UL
Hassle-Free Home Protection Supported By Extended Battery Life
The BC1C is a 100% Wire-Free Rechargeable Camera
That delivers well-rounded Home Protection for up to 210 days on one single Charge
It can be simply Installed anywhere for enhanced Security
Inheriting EZVIZ's Core Technologies of color night vision, two-way talk, active defence and more
Long-Lasting Battery Life For Extended Peace-Of-Mind
Equipped with a 7,800 mAh Rechargeable Battery
The BC1C can last for up to 210 days
On one full Battery Charge, ensuring stable performance all day and night
It can also be connected to EZVIZ Solar Panel to get Powered directly
Data from EZVIZ Labs test results, based on the usage of 5 minutes per day
Including the activities of Camera detection and auto-triggered recording
Actual use may vary due to environmental factors and the frequency of Camera activities
Vivid Night Vision
Thanks to two built-in spotlights, the BC1C can render Vivid Color imaging even in pitch-black darkness
This allows you to see crucial details that would otherwise be lost
Motion Alerts Are More Accurate Than Ever
Integrating a PIR Sensor and the person-shape detection algorithm
The BC1C Camera is intelligent enough to distinguish persons from other moving objects
Keeping you safe while also reducing unwanted notifications
A Vigilant Guard Over Your Property
Users can set specific time frames for detection
Once the Camera detects a person-shape
The BC1C will automatically set off a siren and flash two spotlights
To let them know they have been detected
The spotlights will not flash when color night vision mode is enabled
Customizable Voice Messages
A thoughtful Product by Design
The BC1C allows you to create Unique Voice Messages, for greeting or deterrence
Supports Recording three 10-second Audio Messages
Talk As If You Were There
See and hear whats going on and chat with your visitorsall with a tap on the EZVIZ App
Fast And Easy Wire-Free Setup
Featuring a large Battery
Wi-Fi Connectivity, and a magnetic base
The BC1C Camera requires exactly zero professional help in Installation
Simply attach the Camera to any metallic surface and it is good to go
Screw Base is also included as an Additional Installation option for you to screw the Camera firmly onto the wall
Built To Last
The BC1C Camera Features an IP66 Enclosure
Offering high levels of protection against dust and water
And delivering long-lasting protection in even the toughest weather conditions
BC1C helps you save money on storage and bandwidth.
The BC1C Camera Features the advanced H.265 Video Compression Technology
Achieving better video quality with only half the Bandwidth
And half the Storage Space required by the previous H.264 Video Compression Standard
We Protect Your Data And Privacy
Your Data Security and Privacy make up the cornerstone of every Product we Design
Data Transmission between the BC1C and the EZVIZ Cloud is Encrypted from end to end
Only you have the keys to Decrypt your Data
An Affordable Product With Built-In Storage
The BC1C is Embedded with 32 GB eMMC Storage Capacity
Which means you no long need to go through any hassle or spend extra money on expansive Storage Cards
You can also choose to save your Data onto the EZVIZ CloudPlay upon service Subscriptions
Or Additional Protection in case of Device damage or loss
Security At Your Fingertips
With the EZVIZ App, you can Capture, save, Protect, and Share what's Valuable to you
Live View
Audio Reception
Instant Alerts
Video History
Up to 8x Zoom
Smart Home Enabled
