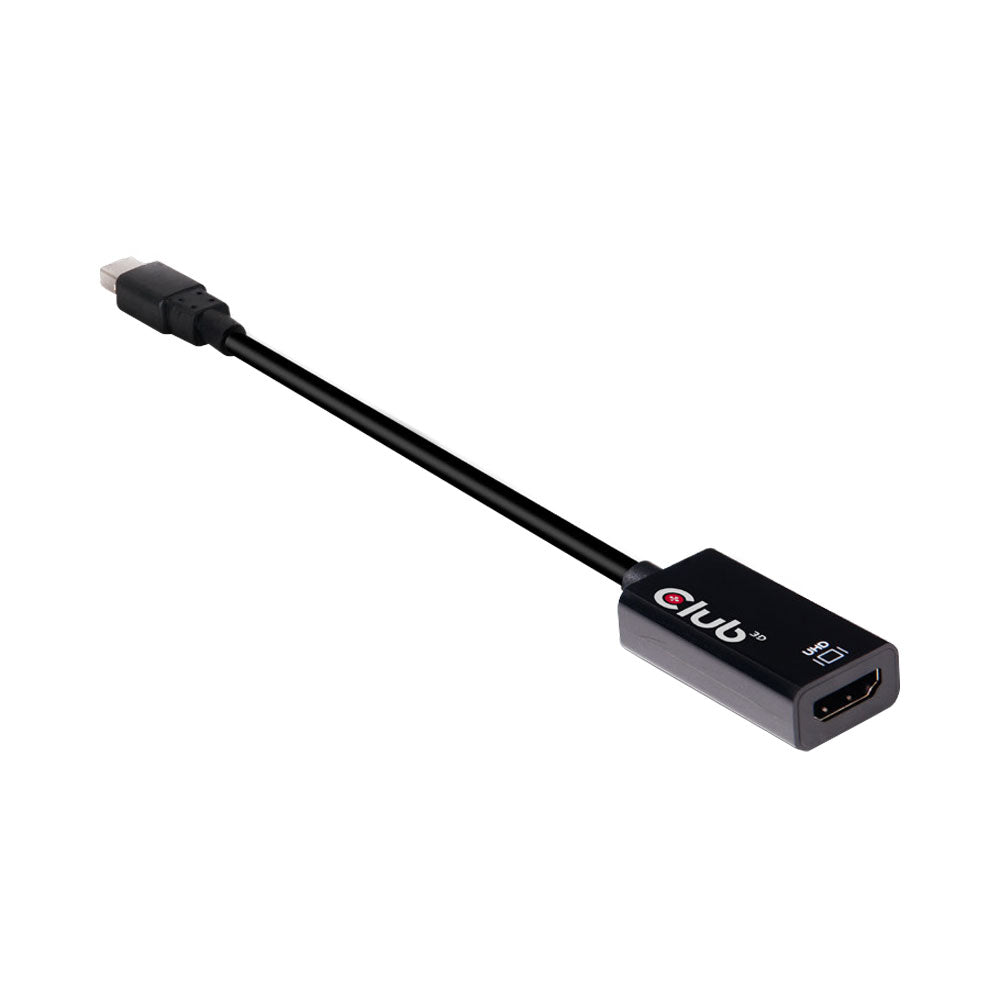

MINI DISPLAYPORT 1.4 TO HDMI 2.0 HDR 4096X2160P

Features

• DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
• Up to 600Mhz dual pixel path and 16bpc
• RGB/YCbCr 4:2:2/4:2:0 pixel format
• Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
• DisplayPort to HDMI Stereoscopic 3D Transport
• Frame Sequential to Stacked Top-Bottom Conversion
• Pass-trough of ther 3D Formats
• Audio Stream Handling
• LPCM and compressed Audio encoding formats
• Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
• HDCP 1.3 to HDCP 1.4 Repeater function
• HDCP 2.2 to HDCP 1.4 and 2.2 Repeater Fucntion
• HDMI transmitter
• Compliant to HDMI SPECIFICATIONS version 2.0b
• 600MHz max TMDS character clock
• High Daynamic Range (HDR) support both Static- and Dynamic HDR
• CEC Support - snooping, tunneling
• Max Video resolution and color depth on HDMI output
• 4K 60Hz YCbCr 4:2:2, up to 12bpc
• 4K 60Hz YCbCr 4:2:0, up to 12bpc
• 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
