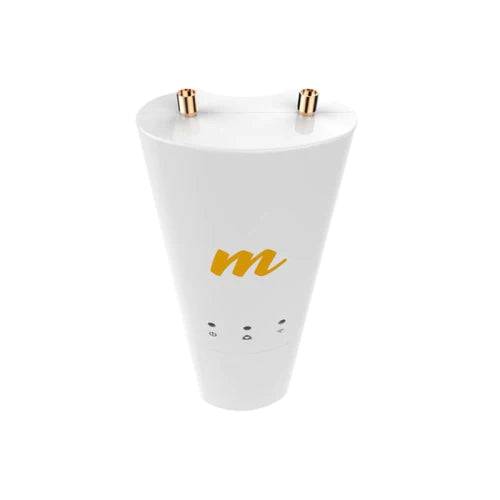

The Mimosa C5c is a versatile radio client solution that offers flexibility in accommodating long-range and customised antenna requirements. By integrating Multi-User MIMO technology and TDMA client technology, the C5c ensures the fastest speeds and offers unparalleled scalability in wireless access solutions.
It is a preferred choice for rural fixed wireless and long-range applications, providing the ability to connect to almost any dual-polarised antenna to create longer-distance client links. The C5c comes with dual RP-SMA connectors for easy cabled antenna connectivity and can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems.
Technical Specifications:
-
Max Throughput: 500+ Mbps IP (866 Mbps PHY)
-
Wireless Protocols: WiFi Interop Mimosa GPS Sync (TDMA)**
-
Modes: Client Mode only
-
MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
-
Bandwidth*: 20/40/80 MHz channels tunable to 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
-
Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
-
Max Output Power: 20 dBm
-
Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
-
Max Power Consumption: 15W
-
System Power Method: Passive PoE
-
PoE Power Supply: Passive PoE compliant, 48-56 V Power over Ethernet supply (sold separately)
-
Dimensions: Depth - 26.5 mm (1.04”) Width - 65 mm (2.56”) Height - 177 mm (6.97”)
-
Weight: 278 grams (9.8oz)
-
Mounting: Single pole strap
-
Connector Type: RP-SMA (x2)
-
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
-
Operating Humidity: 5 to 100% condensing
-
Operating Altitude: 4,420 m (14,500’) maximum
-
Shock & Vibration: ETS 300-019-2-4 class 4M5
-
Gigabit Ethernet: 10/100/1000-BASE-T
-
Multi-User MIMO**: CPE is MU-MIMO capable
-
Management Services: Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
-
Management: Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
-
Security: WPA2 + Mimosa 802.1x Client
-
QoS: Supports 4 pre-configured QoS levels
- Regulatory + Compliance
-
Approvals: FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
-
RoHS Compliance: Yes
-
Safety: UL/EC/EN/ 60950-1 + CSA-22.2
