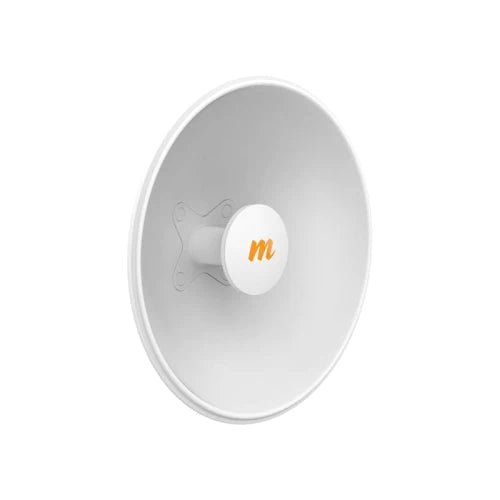

Exclusively designed for use with the C5x, the most versatile wireless radio solution on the market. With extended frequency operation from 4.9-6.4 GHz, the C5x delivers outstanding RF performance with Cassegrain and horn antenna options.
It offers five gain options (8, 12, 16, 20, and 25 dBi) and is ideal for 5 GHz deployments. The C5x is ultra-rugged, with best-in-class noise immunity, and can be used in PTMP mode straight out of the box, with Ethernet link speeds of up to 100 Mbps.
For faster speeds of up to 500 Mbps, purchase a PTMP speed feature key. To unlock and use PTP mode with speeds of up to 700 Mbps, a PTP feature key must be purchased. The N5-X family of antennas offers incredible sidelobe rejection, optimized to isolate noise for exceptional front-to-back and front-to-side performance.
| DETAILS |
|
| Product Code |
MM-N5X25 |
| Gain |
25dBi |
| Polarization |
Dual-slant 45° |
| Beamwidth, Symmetric (3dB) |
8dB |
| Front-to-Back Ratio (min) |
40dB |
| Front-to-Side Ratio (min) |
>45dB |
| Dimensions |
Diameter: 429mm, Depth: 116mm |
| Mount |
Mimosa N5-X twist-on |
| Wind Survivability |
200km/h (125mph) |
