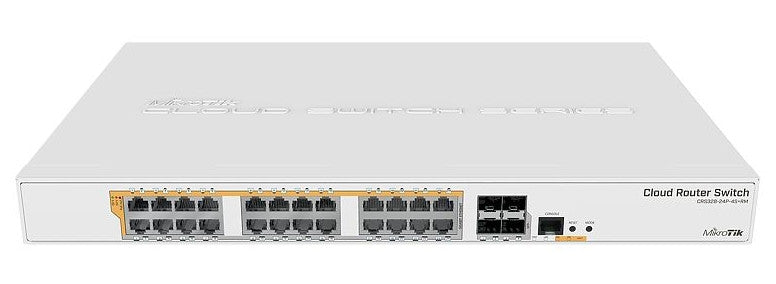

The MikroTik CRS328-24P-4S+RM is a 28-port 1U rackmount managed switch designed for versatile enterprise and service provider networks. It features 24x Gigabit Ethernet ports with PoE output and 4x SFP+ slots for high-speed fibre uplinks. Powered by a dual-core ARM v7 800 MHz CPU, 512 MB RAM, and a 98DX3236A1 switch chip, it supports non-blocking throughput of 64 Gbps, switching capacity of 128 Gbps, and forwarding rate of 95.2 Mpps. Dual boot functionality allows operation using either SwOS for simplified switching or RouterOS for advanced Layer 3 routing.
Key features:
24x Gigabit Ethernet ports with PoE+ (802.3at/af) and 24V passive PoE
4x SFP+ ports for 10G fibre connectivity
Dual-core ARMv7 CPU (800 MHz), 512 MB RAM, 16 MB flash
Non-blocking throughput: 64 Gbps
Switching capacity: 128 Gbps
Forwarding rate: 95.2 Mpps
Dual-boot support: SwOS and RouterOS (License Level 5)
16K host table, 802.1Q VLAN (up to 4,000), port isolation, security, mirroring
STP, RSTP, MSTP, ACLs, SNMP, MikroTik neighbour discovery
IGMP snooping, link aggregation, jumbo frames (up to 10,218 bytes)
RJ45 serial console port
100–240V AC input
Temperature-based fan control
Operating temperature: -20°C to +60°C
Dimensions: 443 x 305 x 44 mm (1U rackmount)
24 Gigabit 802.3af/at or 24V Passive PoE ports, 4 SFP+ ports, Dual boot SwOS and ROS L5
-
Brand: MikroTik
-
SKU: MT-RBCRS328-24P-4S+R
-
Manufacturer SKU: CRS328-24P-4S+RM
-
Barcode: 4752224002228
