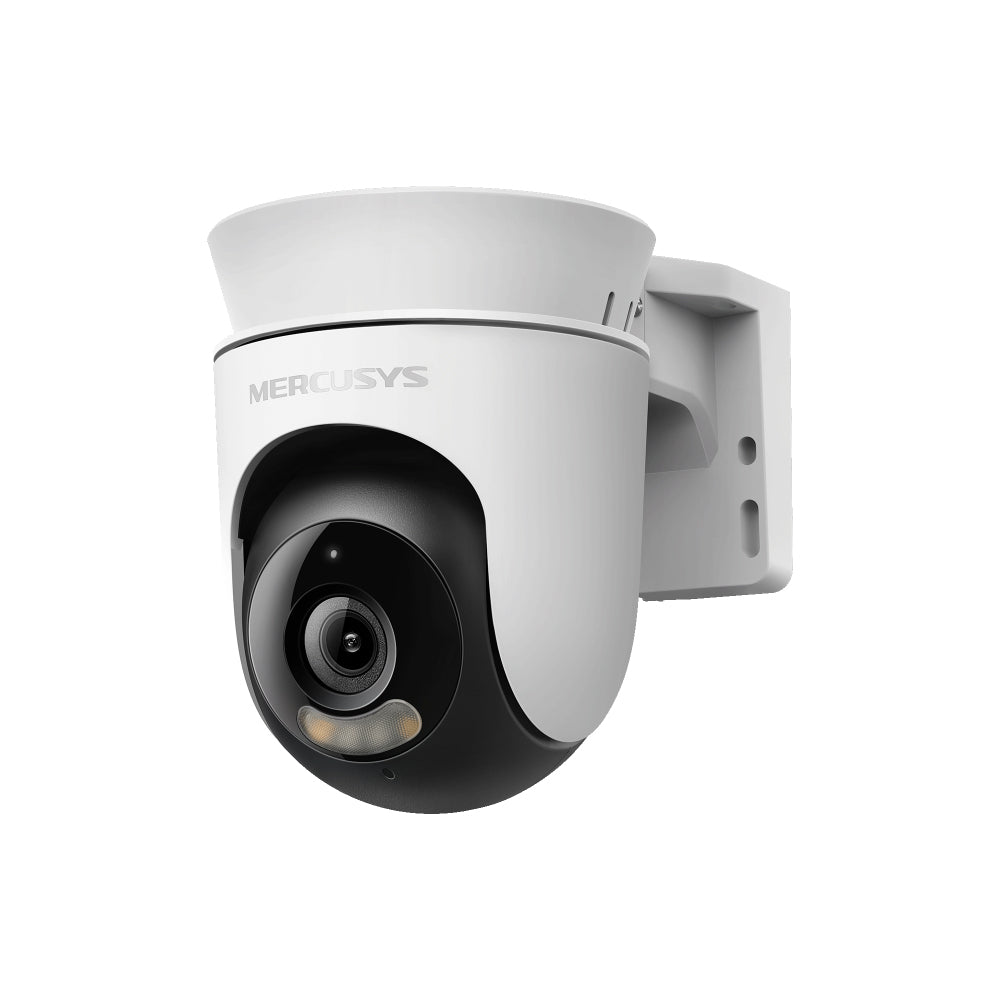

MERCUSYS OUTDOOR PAN/TILT 1080P CAM (RETAIL ONLY)

Features

• 1080p Full HD Resolution - Clear 2MP video (1920 × 1080) for reliable outdoor monitoring
• Pan and Tilt Coverage - 360° horizontal viewing with smart motion tracking and no blind spots
• Smart Detection - Motion and person detection with instant notifications
• Colour Night Vision - Full-colour visibility with spotlights for enhanced night monitoring
• IP65 Weatherproof Design - Reliable outdoor performance in rain, dust and harsh conditions
• Two-Way Audio - Built-in microphone and speaker for real-time communication
• Flexible Storage - Supports microSD (up to 512GB) and cloud storage options

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Lens: 4mm, F2.0
• Field of View: 87° (Diagonal), 74° (Horizontal), 40° (Vertical)
• Pan/Tilt Range: 340° Pan, 90° Tilt
• Night Vision: 850nm IR LED (up to 29.9m) + Full-Colour with Spotlights
• Interface: RESET Button, microSD Slot (up to 512GB)

Video And Audio

• Resolution: 2MP (1920 × 1080)
• Frame Rate: 15/20/25/30fps (15fps default)
• Video Compression: H.264
• Digital Zoom: up to 9×
• Image Enhancement: 3DNR, WDR
• Live View: Yes
• Audio: Built-in Microphone and Speaker
• Two-Way Audio: Yes (Noise Cancellation)
• Siren Volume: up to 88dB

Storage

• Local Storage: microSD Card Slot (up to 512GB)
• Cloud Storage: Mercusys Camera Care (Subscription Required)

Detection And Notifications

• Detection Types: Motion Detection, Person Detection
• Activity Zones: Yes
• Notifications: System Alerts

Network

• Connectivity: Wi-Fi
• Wireless: IEEE 802.11 b/g/n (2.4GHz)
• Transmission Rates: 11Mbps (11b), 54Mbps (11g), 72.2Mbps (11n)
• Protocols: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
• RTSP: Yes
• ONVIF: Yes

Security

• Encryption: 128-bit AES with SSL/TLS
• Wireless Security: WPA/WPA2-PSK

Power

• Power Supply: 9V DC Adapter
• Input: 100~240V AC, 50/60Hz
• Output: 9V 0.85A

General

• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP65
• Mounting Options: Wall, Ceiling, Pole Mount
• Operating Temperature: -20~50°C
• Storage Temperature: -40~60°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 0~90% RH (Non-Condensing)
• Dimensions: 141.5 × 93 × 122mm
• Certifications: • CE, NCC, BSMI, NTRA, KC, RCM, ONVIF
