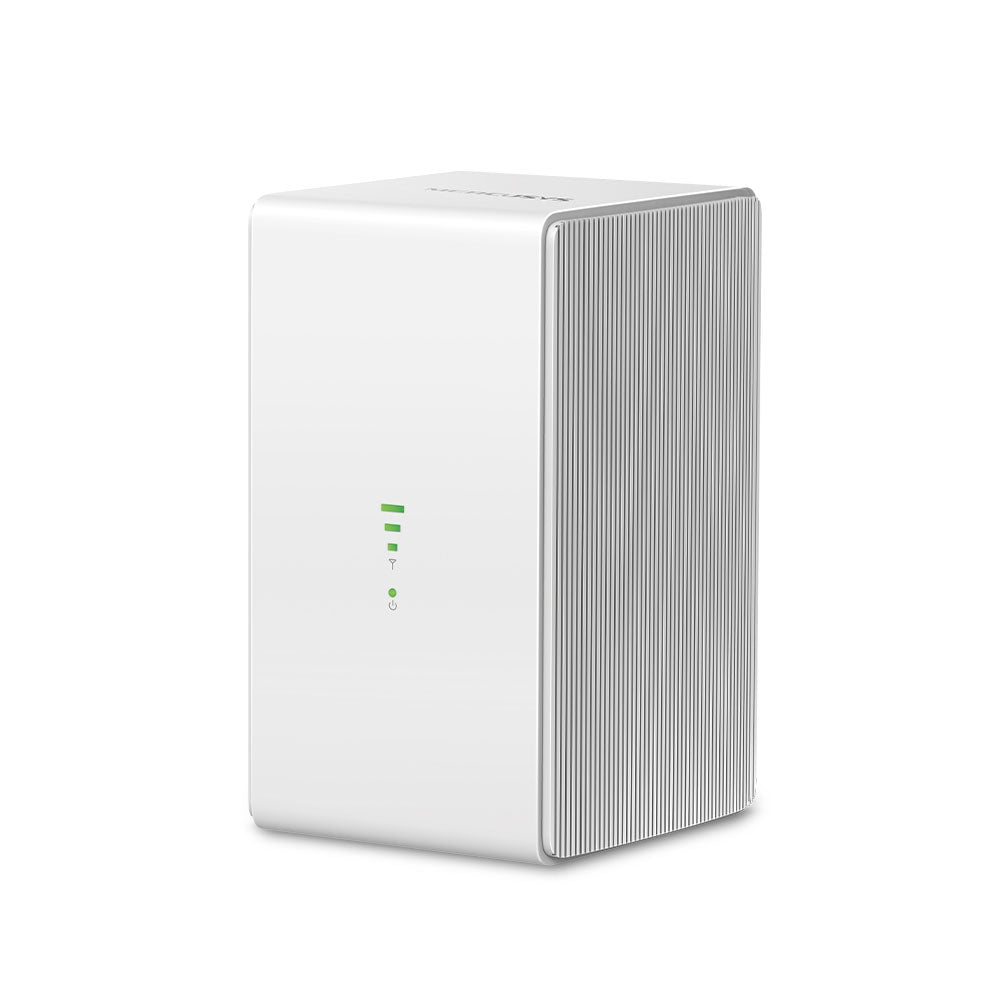

MERCUSYS N300 WIFI 4G LTE ROUTER

Features

• 4G Network - Share internet access with up to 32× Wi-Fi devices and enjoy download speeds of up to 150Mbps
• Plug In a SIM Card and Play - No configurations needed, compatibility of SIM cards are assured by years of field tests
• 300Mbps Wi-Fi - Fast Wi-Fi speeds up to 300Mbps to share your network
• Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Specifications

Wireless

• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4GHz
• Signal Rate: 300Mbps

Reception Sensitivity

• 11g 54M: -74dBm
• 11n HT20: -71dBm
• 11n HT40: -68dBm

Transmission Power

• < 20dBm (2.4GHz)

Wireless Security

• WPA-PSK
• WPA2-PSK

Wireless Functions

• Enable/Disable Wireless Radio
• Wireless Schedule
• WMM
• Wireless Statistics

Hardware

• Dimensions (W × D × H): 90 × 92 × 150.5mm

Interfaces

• 1× 10/100Mbps LAN/WAN Port
• 1× 10/100Mbps LAN Port
• 2× 4G/3G External Antenna Ports
• 1× Nano SIM Card Slot

Button

• WPS/Reset Button

Ethernet Ports

• 1× 10/100Mbps LAN/WAN Port
• 1× 10/100Mbps LAN

Network Type

• FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
• TDD-LTE: B38/B40 (2600/2300MHz)
• HSPA+/UMTS: B1/B5/B8 (2100/850/900MHz)

Software

• DHCP: Server

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 21 cm
• Width: 13.2 cm
• Height: 11.05 cm
• Weight: 0.54 kg
