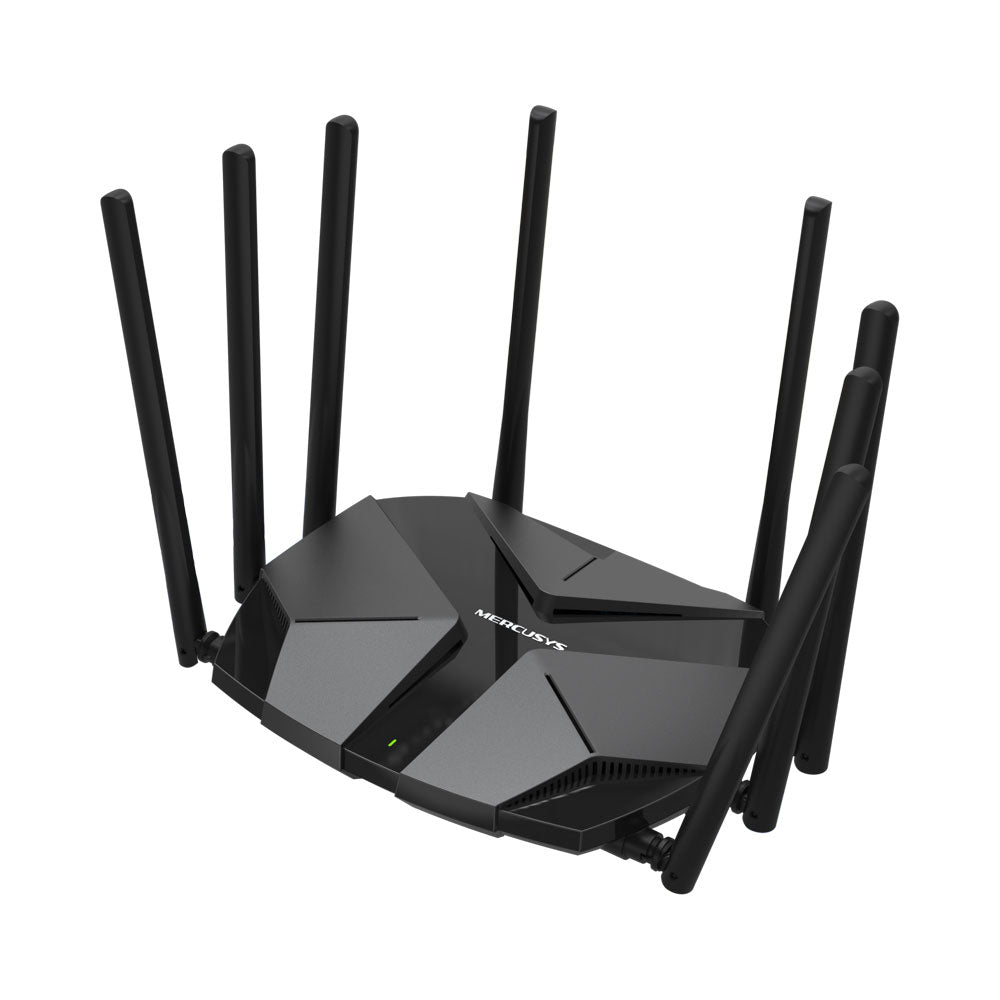

MERCUSYS AX6000 8-STREAM WIFI 6 ROUTER

Features

• Optimal Wi-Fi 6 Speeds - Optimal Wi-Fi 6 speeds reaching up to 6Gbps for faster browsing, streaming and downloading, all at the same time
• 2.5Gbps Multi-Gig Port - Break through the 1G bottleneck and drive your devices to peak performance
• More Devices, More Fun - Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
• Wi-Fi That Goes Further - 8× Multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner
• Overall Security Protection - The latest WPA3 provides improved Wi-Fi security
• Gigabit Wired Connections - Make full use of your internet access and transfer data at dizzying speeds for peak performance
• Eco-Friendly Power Saving - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
• Less Wi-Fi Interference - Minimises the interference from neighbouring signals to improve transmission efficiency with BSS colouring
• Smart Connect - Intelligently chooses the best available band for each device

Specifications

Wireless Standards

• IEEE 802.11ax/ac/a/b/g/n

Wi-Fi Speeds

• 4,804Mbps (5.0GHz)
• 1,148Mbps (2.4GHz)

Reception Sensitivity

2.4GHz

• 11g 6Mbps: -97dBm
• 11g 54Mbps: -79dBm
• 11n HT40 MCS7: -74dBm
• 11n HT20 MCS7: -77dBm

5.0GHz

• 11a 6Mbps: -97dBm
• 11a 54Mbps: -79dBm
• 11ac VHT20 MCS8: -75dBm
• 11ac VHT40 MCS9: -71dBm
• 11ac VHT80 MCS9: -67dBm
• 11ax VHT20 MCS11: -67dBm
• 11ax VHT40 MCS11: -64dBm
• 11ax VHT80 MCS11: -61dBm

Transmission Power

• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (Band 1, Band 2)
• 5.0GHz: <30dBm (Band 3)

Wireless Security

• WPA / WPA2-Personal
• WPA2 / WPA3-Personal

Wireless Functions

• Enable / Disable Wireless Radio
• WMM

Dimensions (W × D × H)

• 209 × 172.2 × 42.4mm

Interfaces

• 1× 2.5Gbps WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 2× Gigabit LAN Ports

Button

• Reset / WPS Button

Antenna Type

• 8× Fixed Omni-Directional Antennas

Wan Type

• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP

Management

• Access Control
• Local Management
• Remote Management

Dhcp

• Server
• DHCP Client List

Nat Forwarding

• Port Forwarding
• Port Triggering
• UPnP
• DMZ

Firewall Security

• SPI Firewall
• IP and MAC Address Binding

Guest Network

• 2.4GHz Guest Network
• 5.0GHz Guest Network

Vpn Server

• OpenVPN
• PPTP

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

Shipping Dimensions

• Length: 41.4 cm
• Width: 29 cm
• Height: 6.7 cm
• Weight: 1.05 kg
