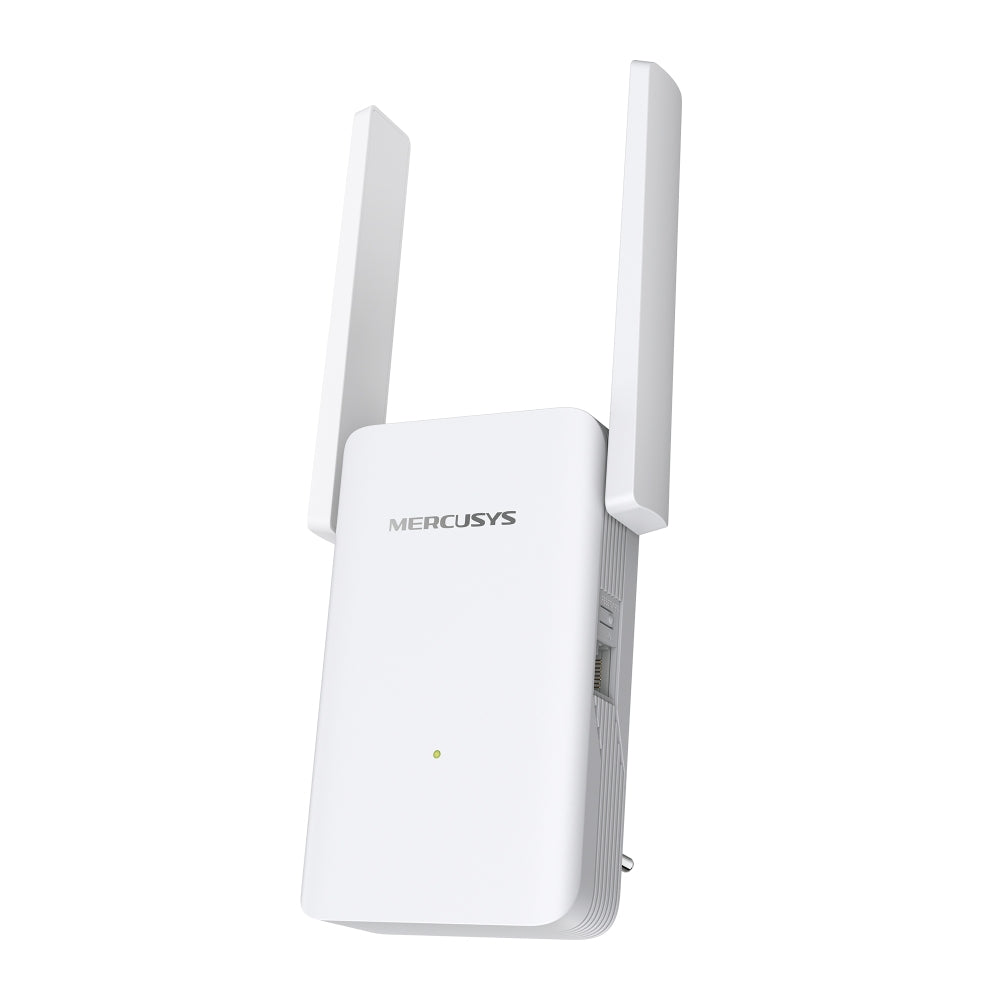

MERCUSYS AX3000 WI-FI 6 RANGE EXTENDER

Features

• AX3000 Dual-Band Wi-Fi Speeds - Up to 3,000Mbps with 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
• High-Efficiency Wi-Fi 6 Technology - Supports OFDMA and improved efficiency for better performance with multiple devices
• Gigabit Wired Connection - Provides high-speed wired connectivity for PCs, IPTV and gaming consoles
• Smart Signal Indicator - Helps you find the optimal placement for the best Wi-Fi coverage
• Easy One-Touch Setup - Press the WPS button to expand your Wi-Fi coverage in seconds
• Flexible Operation Modes - Supports both Range Extender Mode and Access Point Mode
• App-Based Network Management - Set up and manage your Wi-Fi easily through the Mercusys App on iOS or Android devices

Specifications

Wireless Standards

• IEEE 802.11a/n/ac/ax (5.0GHz)
• IEEE 802.11b/g/n/ax (2.4GHz)

Frequency

• 2.4GHz
• 5.0GHz

Signal Rate

• 574Mbps (2.4GHz)
• 2,402Mbps (5.0GHz)

Reception Sensitivity

5.0GHz

• 11a 6Mbps: -97dBm
• 11a 54Mbps: -78dBm
• 11ax HE20 MCS0: -96dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS0: -93dBm
• 11ax HE40 MCS11: -62dBm
• 11ax HE80 MCS0: -90dBm
• 11ax HE80 MCS11: -60dBm
• 11ax HE160 MCS11: -58dBm

2.4GHz

• 11g 6Mbps: -96dBm
• 11g 54Mbps: -78dBm
• 11ax HE20 MCS0: -96dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS0: -93dBm
• 11ax HE40 MCS11: -62dBm

Wireless Security

• WEP
• WPA
• WPA2
• WPA3-PSK

Dimensions (W × D × H)

• 138.6 × 100.3 × 68.4mm

Interfaces

• 1× Gigabit Ethernet Port

Button

• WPS / Reset Button

Antenna Type

• 2× External Antennas

Power Consumption

• 13W

Certifications

• RoHS

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing

Shipping Dimensions

• Length: 20.2 cm
• Width: 12.5 cm
• Height: 8.3 cm
• Weight: 0.42 kg
