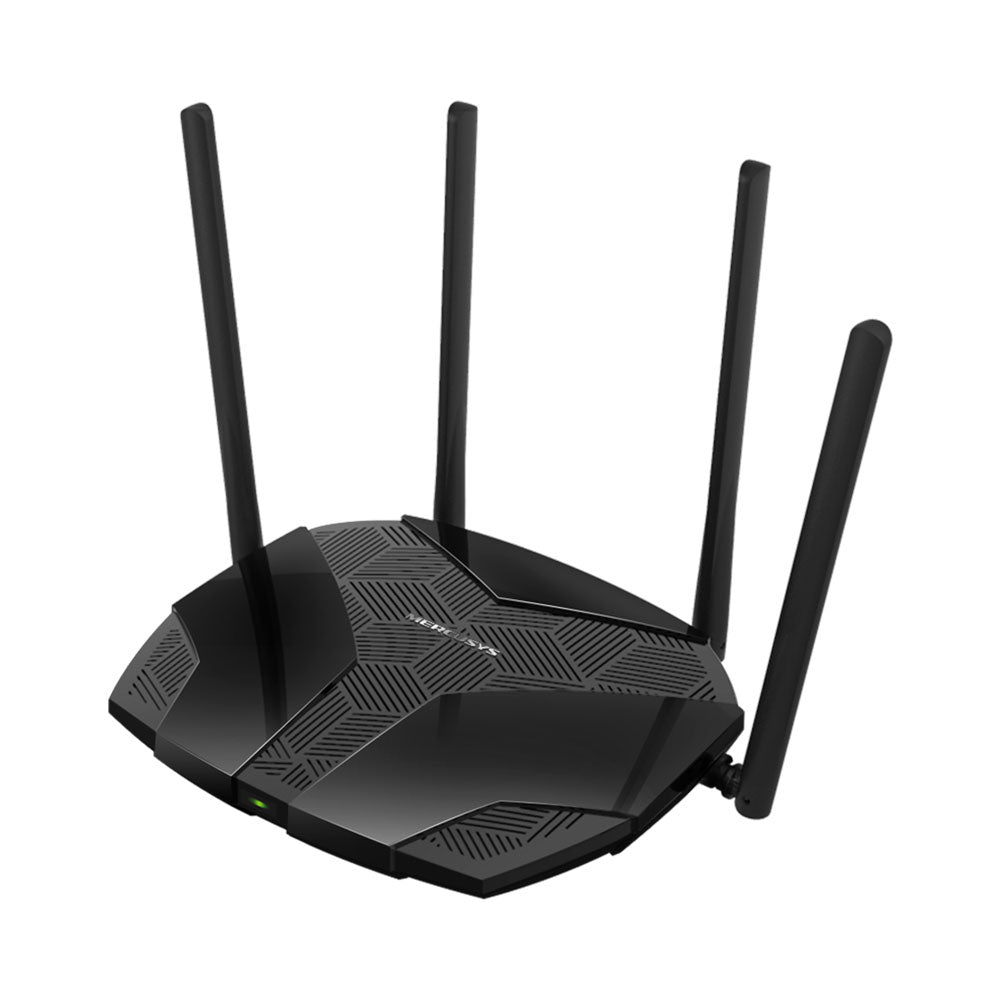

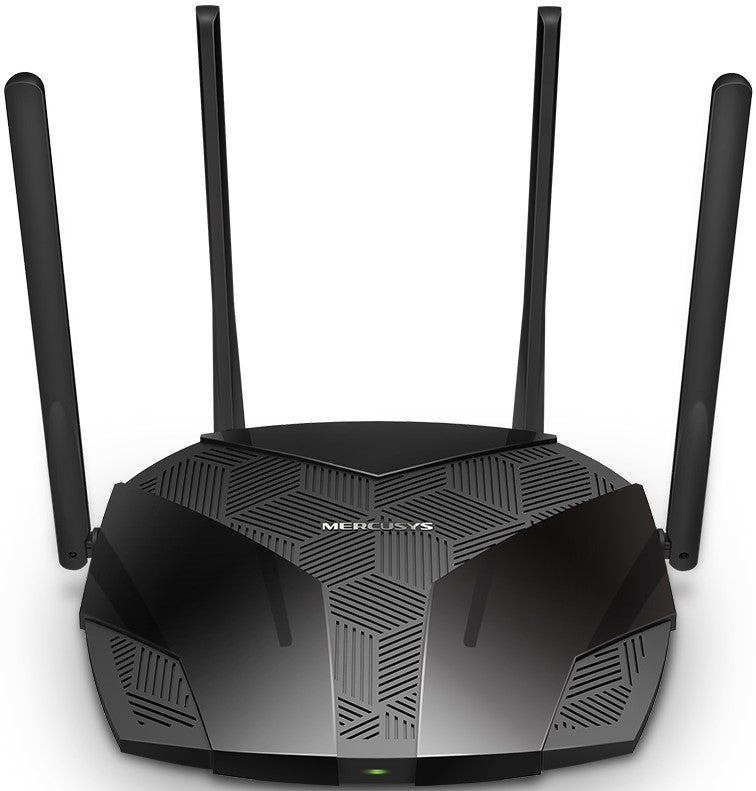

MERCUSYS AX3000 DUAL BAND WIFI 6 ROUTER

Features

• Optimal Wi-Fi 6 Speeds - Delivers combined wireless speeds of up to 3Gbps for faster browsing, streaming and downloads across multiple devices
• Extended Wi-Fi Coverage - Four multi-directional high-gain antennas with Beamforming provide stable connections and stronger signals throughout your home
• More Devices, More Performance - MU-MIMO and OFDMA technologies reduce congestion and improve network efficiency for multiple devices
• Gigabit Wired Connectivity - Gigabit Ethernet ports enable high-speed wired connections for PCs, smart TVs and gaming consoles
• Smart Connect Technology - Automatically selects the best available Wi-Fi band for each connected device
• Advanced Security Protection - WPA3 encryption enhances wireless security and protects your network from unauthorised access
• Reduced Wi-Fi Interference - BSS colouring minimises interference from neighbouring networks to improve wireless performance
• Energy-Efficient Networking - Target Wake Time (TWT) reduces power consumption for connected mobile and IoT devices

Specifications

Wireless

• Wireless Standards: Compatible with IEEE 802.11ax/ac/a/b/g/n Wi-Fi standards
• Signal Rate:
• 2402Mbps on 5.0GHz
• 574Mbps on 2.4GHz

Reception Sensitivity

• 11g 6Mbps: -97dBm
• 11g 54Mbps: -79dBm
• 11n HT40 MCS7: -74dBm
• 11n HT20 MCS7: -77dBm
• 11a 6Mbps: -97dBm
• 11a 54Mbps: -79dBm
• 11ac VHT20 MCS8: -75dBm
• 11ac VHT40 MCS9: -71dBm
• 11ac VHT80 MCS9: -67dBm
• 11ax VHT20 MCS11: -67dBm
• 11ax VHT40 MCS11: -64dBm
• 11ax VHT80 MCS11: -61dBm

Transmission Power

• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (Band 1, Band 2)
• 5.0GHz: <30dBm (Band 3)

Wireless Security

• WEP
• WPA
• WPA2-Personal
• WPA2 / WPA3-Personal

Wireless Functions

• Enable / Disable Wireless Radio
• WMM

Wan Type

• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP

Management

• Access Control
• Local Management
• Remote Management

Dhcp

• Server
• DHCP Client List

Nat Forwarding

• Port Forwarding
• Port Triggering
• UPnP
• DMZ

Firewall Security

• SPI Firewall
• IP and MAC Address Binding

Guest Network

• 2.4GHz Guest Network
• 5.0GHz Guest Network

Vpn Server

• OpenVPN
• PPTP

Hardware

• Dimensions (W × D × H): 208.8 × 171.6 × 41.7mm
• Interfaces:
• 1× Gigabit WAN Port
• 3× Gigabit LAN Ports
• Button: Reset / WPS Button
• Antenna Type: 4× 5dBi Fixed Omnidirectional Antennas

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 38.9 cm
• Width: 29 cm
• Height: 6.7 cm
• Weight: 0.85 kg
