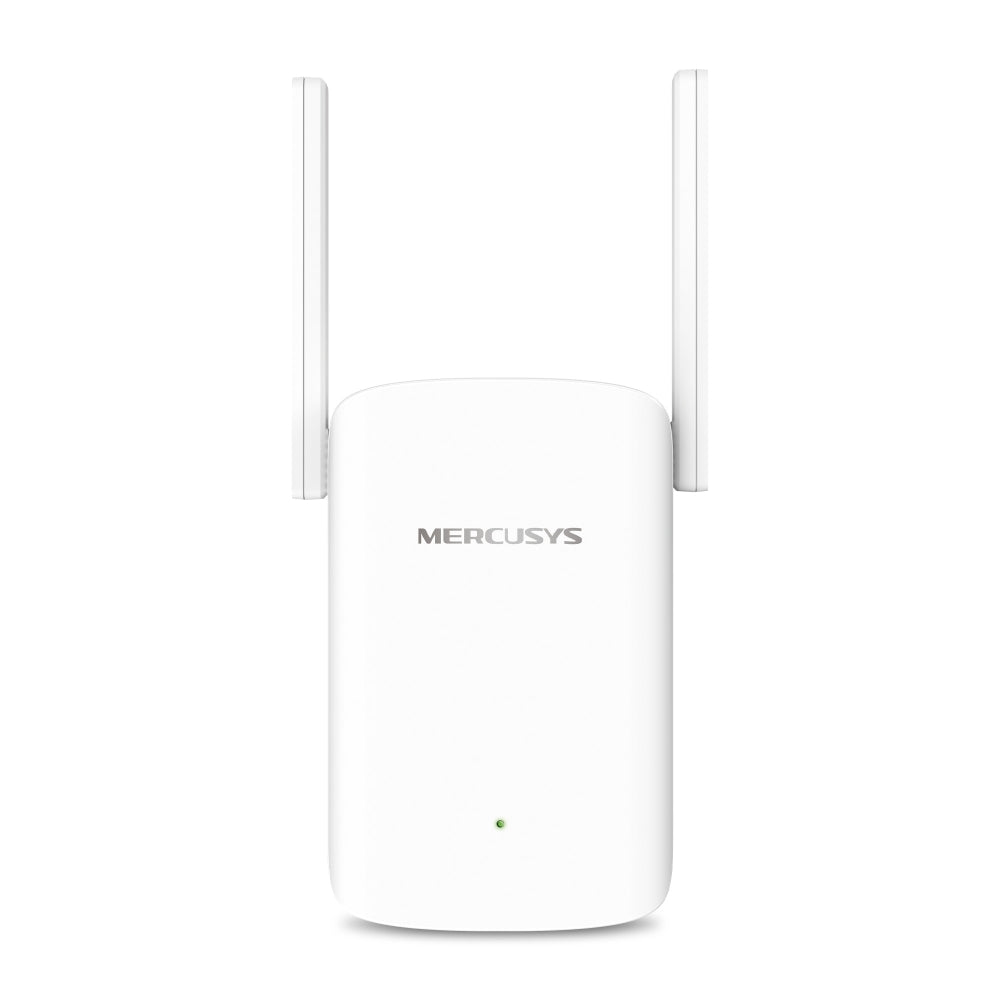

MERCUSYS AX1500 WI-FI 6 RANGE EXTENDER

Features

• Dual-Band Speeds up to 1,500Mbps - 1,201Mbps on 5.0GHz and 300Mbps on 2.4GHz
• Wi-Fi 6 Technology - Improves network speed, efficiency and capacity for more connected devices
• Gigabit Wired Connection - Provides high-speed wired connectivity for PCs, IPTV and gaming consoles
• Universal Compatibility - Works with any router to extend Wi-Fi coverage where you need it most
• One-Touch WPS Setup - Quickly expand your Wi-Fi network with a single button press
• Access Point Mode - Supports both Range Extender and Access Point operating modes
• App-Based Management - Easily set up and manage your network from iOS or Android devices

Specifications

Wireless Standards

• IEEE 802.11a/n/ac/ax 5.0GHz
• IEEE 802.11b/g/n 2.4GHz

Frequency

• 2.4GHz
• 5.0GHz

Signal Rate

• 300Mbps at 2.4GHz
• 1,201Mbps at 5.0GHz

Reception Sensitivity

5.0GHz

• 11ax HE80 MCS0: -88dBm
• 11ax HE80 MCS11: -58dBm
• 11a 6Mbps: -94dBm
• 11a 54Mbps: -76dBm
• 11ac VHT80 MCS0: -91dBm
• 11ac VHT80 MCS9: -63dBm

2.4GHz

• 11g 6Mbps: -95dBm
• 11g 54Mbps: -77dBm
• 11n HT40: -72dBm

Wireless Security

• WPA
• WPA2
• WPA3-PSK

Hardware

Dimensions (W × D × H)

• 84.7 × 39 × 112mm (Without Plug)

Interface

• 1× Gigabit Ethernet Port

Button

• WPS Button
• Reset Button

Antenna

• 2× External Antennas

Power Consumption

• 10W

Certifications

• RoHS

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing
