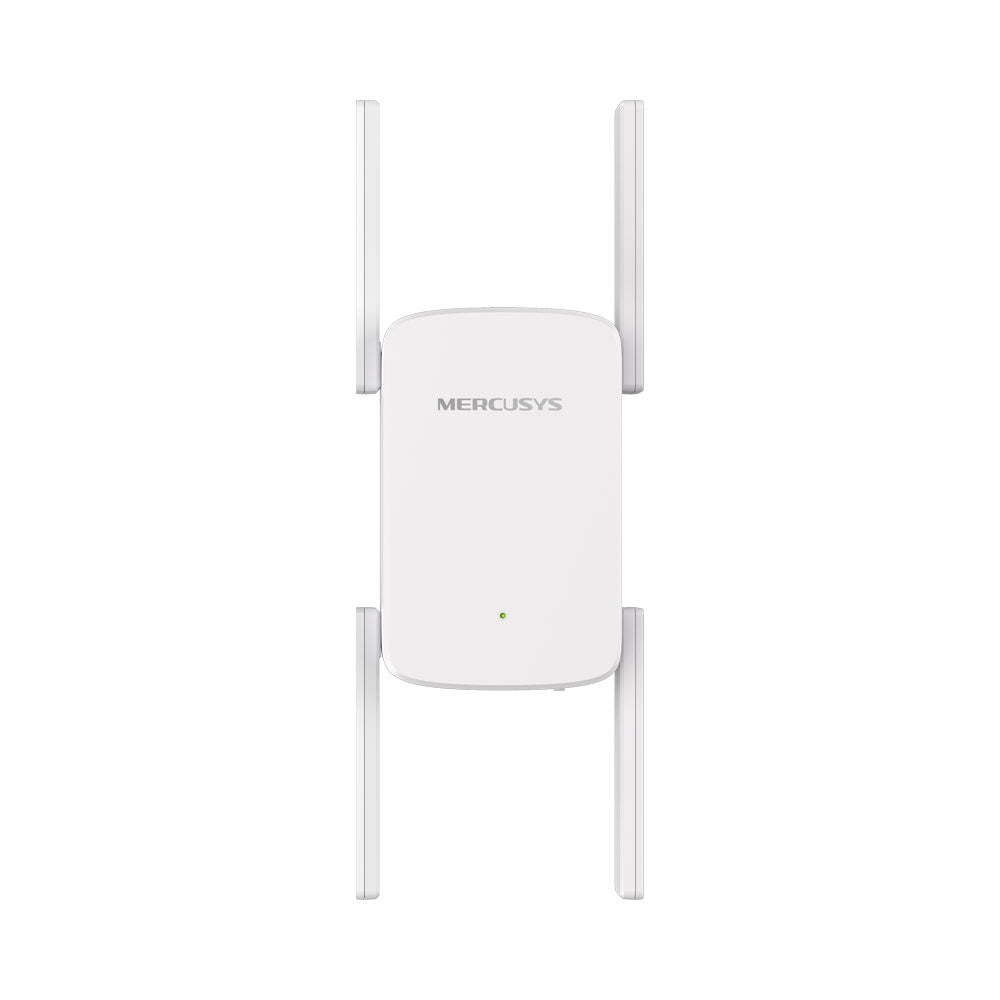

MERCUSYS AC1900 WIFI RANGE EXTENDER

Features

• Dual-Band Speeds up to 19,00Mbps - 1,300Mbps on 5.0GHz and 600Mbps on 2.4GHz
• Gigabit Wired Connection - Provides speedy wired connections for PCS, IPTVs and game consoles
• 3×3 MU-MIMO - Connect more devices simultaneously
• Easy One-Touch Setup - Press the WPS button to expand your Wi-Fi coverage in seconds
• Built-In Access Point Mode - Works in Range Extender and Access Point Mode
• Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android device

Specifications

Wireless

• Wireless Standards: IEEE 802.11a/n/ac (5.0GHz), IEEE 802.11b/g/n (2.4GHz)
• Frequency: 2.4GHz, 5.0GHz
• Wi-Fi Speeds:
• 1,300Mbps on 5.0GHz
• 600Mbps on 2.4GHz

Reception Sensitivity

5.0GHz

• 11a 6Mbps: -95.5dBm
• 11a 54Mbps: -75.5dBm
• 11n VHT20 MCS7: -71.5dBm
• 11n VHT40 MCS9: -67dBm
• 11n VHT80 MCS9: -63dBm

2.4GHz

• 11g 6Mbps: -94dBm
• 11g 54Mbps: -78dBm
• 11n VHT20 MCS7: -72dBm
• 11n VHT40 MCS7: -67.5dBm

Transmission Power

• ≤20dBm

Wireless Security

• WPA
• WPA2
• WPA3-PSK

Hardware

• Dimensions (With Plug): 84.7 × 75.3 × 112mm
• Dimensions (Without Plug): 84.7 × 39 × 112mm
• Interfaces: 1× Gigabit Ethernet Port
• Button: WPS / Reset Button
• Antenna Type: 4× External Antennas
• Power Consumption: 12W

Certification

• RoHS

Environment

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 15.2 cm
• Width: 12.3 cm
• Height: 10.25 cm
• Weight: 0.30 kg
