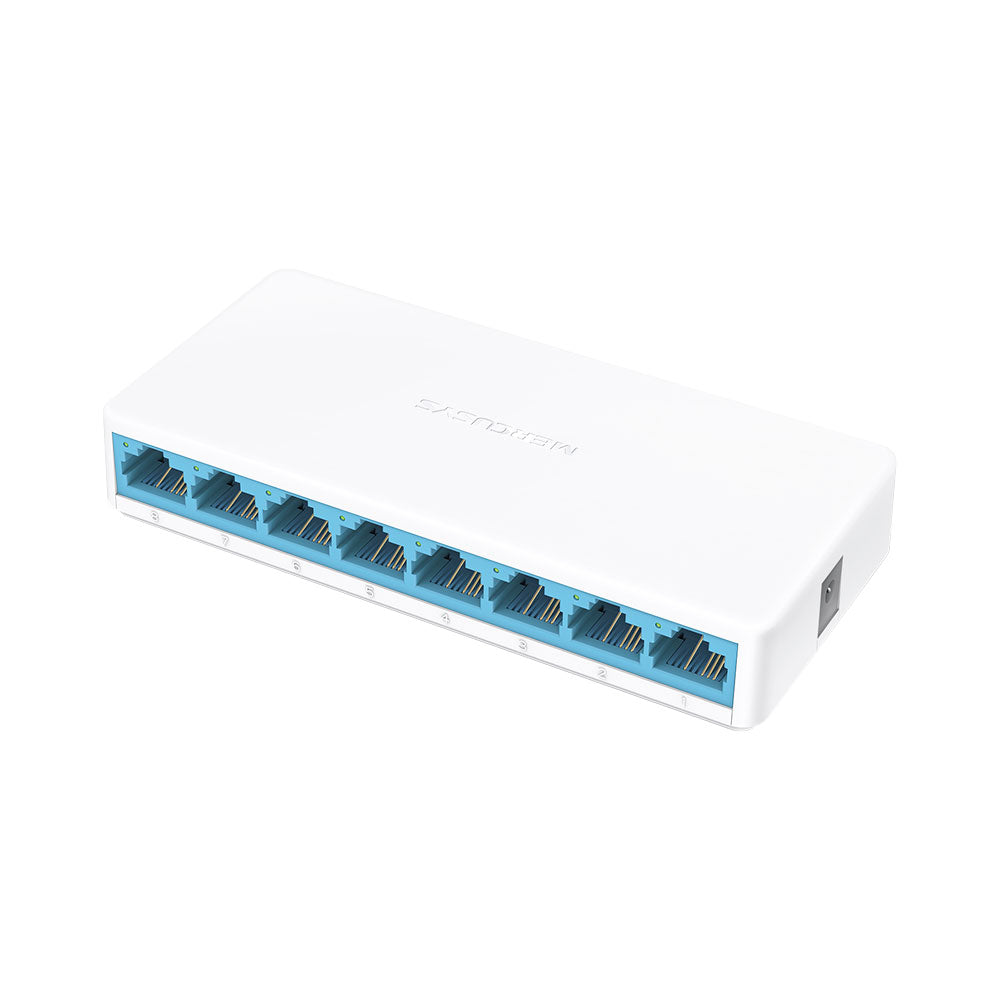

MERCUSYS 8-PORT FE ETHERNET DESKTOP SWITCH

Features

• Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required

Specifications

• Dimensions: (W X D X H) 127 x 60.3 x 22 mm
• External Power Supply: External power adapter (Output: 5.0VDC / 0.6A)
• Interfaces: 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
• Fan Quantity: Fanless
• Data Rates:10/100Mbps at half duplex, 20/200Mbps at full duplex
• Buffer Capacity: 768Kb
• Jumbo Frame: 2KB
• Switching Capacity: 1.6Gbps
• LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
• Transfer Method: Store and forward
• Certifications: CE, RoHS

Shipping Dimensions

• Length: 13.1 cm
• Width: 8.1 cm
• Height: 8.5 cm
• Weight: 0.19 kg
