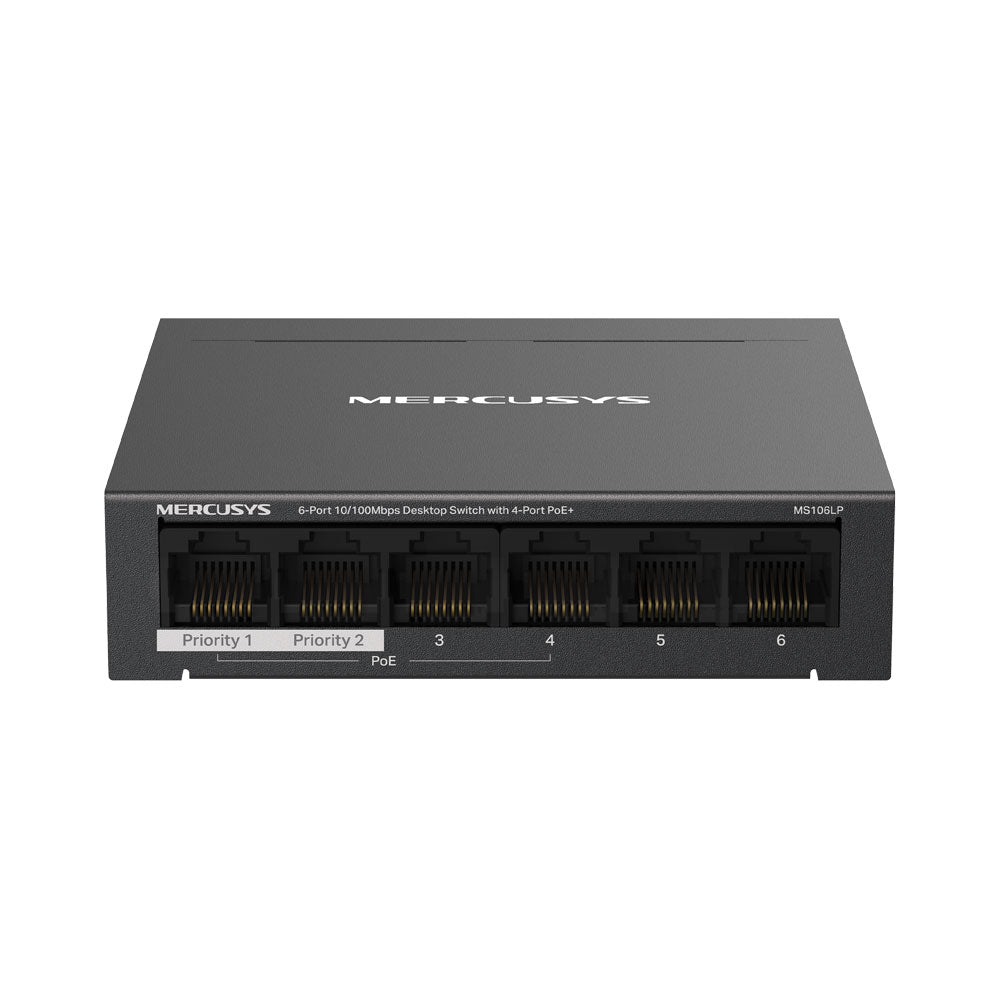

MERCUSYS 6-PORT DESKTOP SWITCH WITH 4-PORT POE+

Features

• 4× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 40W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 40W for reliable device deployment
• PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE-powered devices
• Fast Ethernet Connectivity - 6× 10/100Mbps RJ45 ports deliver stable wired networking for home or small business setups
• Extend Mode up to 250m - Extend Mode allows PoE transmission and data up to 250m, ideal for surveillance deployments
• Durable Metal Housing - Compact, robust metal design with desktop or wall-mount installation options

Specifications

Dimensions (W × D × H)

• 99.8 × 98 × 25mm

Poe Ports

• 4× PoE+ Ports (Ports 1~4)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 40W

Interfaces

• 6× 10/100Mbps RJ45 Ports
• Auto-Negotiation, Auto MDI/MDIX

External Power Supply

• External Power Adapter (Output: 53.5V 0.81A)

Installation

• Desktop
• Wall Mount

Standards And Protocols

• IEEE 802.3x Flow Control

Data Rates

• 10/100Mbps at Half-Duplex
• 20/200Mbps at Full-Duplex

Jumbo Frame

• 2KB

Mac Address Table

• 2K

Max Power Consumption

• 1.87W (220V 50Hz, No PD Connected)
• 44.8W (220V 50Hz, With 40W PD Connected)

Max Heat Dissipation

• 6.34 BTU/h (No PD Connected)
• 152.32 BTU/h (With 40W PD Connected)

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing

Shipping Dimensions

• Length: 13.7 cm
• Width: 12.5 cm
• Height: 8.6 cm
• Weight: 0.30 kg
