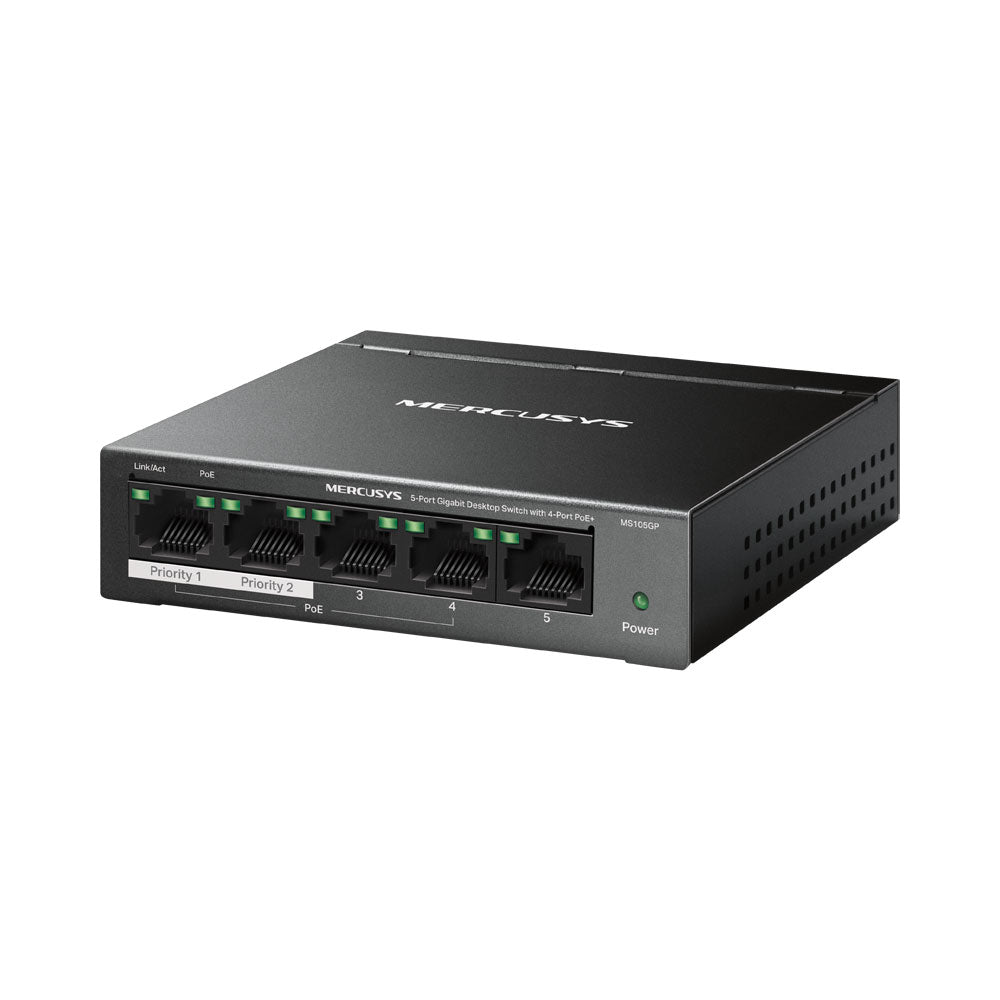

MERCUSYS 5-PORT GB DESKTOP SWITCH WITH 4-PORT POE+

Features

• Full Gigabit Ports - 5× 10/100/1000Mbps RJ45 ports
• Two Cables in One - With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
• Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)
• Isolation Mode - One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing - Allows for efficient heat dissipation and long network life
• Plug-and-Play - Simple to use and saves time and effort

Specifications

Dimensions (W × D × H)

• 99.8 × 98 × 25mm

Poe Ports

• 4× PoE+ Ports (Ports 1~4)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 65W

Interfaces

• 5× RJ45 Gigabit Ethernet Ports

External Power Supply

• External Power Adapter (Output: 53.5V 1.31A)

Installation

• Desktop
• Wall Mount

Standards And Protocols

• IEEE 802.3x Flow Control

Data Rates

• 10/100/1000Mbps at Half-Duplex
• 20/200/2000Mbps at Full-Duplex

Jumbo Frame

• 9KB

Mac Address Table

• 2K

Max Power Consumption

• 3.13W (220V 50Hz, No PD Connected)
• 75.15W (220V 50Hz, With 65W PD Connected)

Max Heat Dissipation

• 10.64 BTU/h (No PD Connected)
• 255.51 BTU/h (With 65W PD Connected)

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing

Shipping Dimensions

• Length: 13.7 cm
• Width: 12.5 cm
• Height: 8.6 cm
• Weight: 0.69 kg
