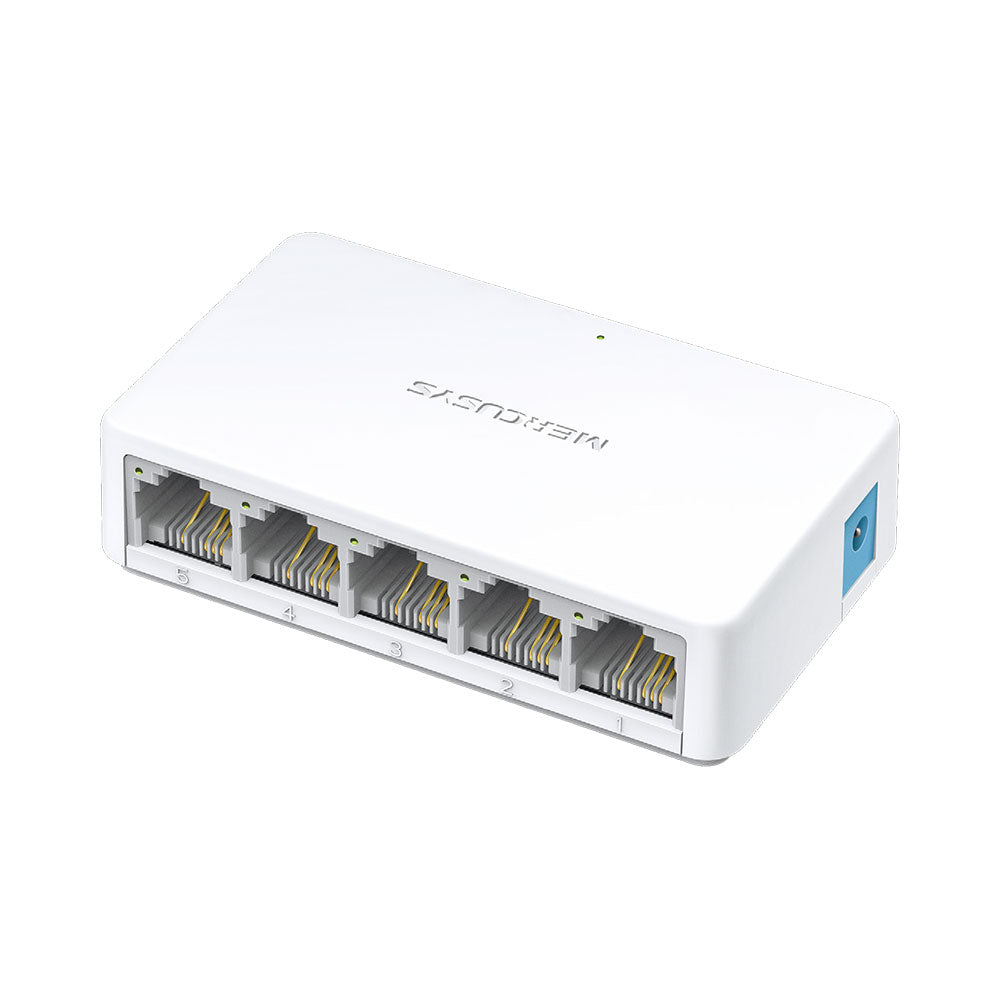

MERCUSYS 5-PORT FE ETHERNET DESKTOP SWITCH

Features

• Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required

Specifications

• Dimensions: (W X D X H) 82 x 49 x 21 mm
• External Power Supply: External power adapter (Output: 5.0VDC/0.6A)
• Interfaces: 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
• Fan Quantity: Fanless
• Data Rates: 10/100Mbps at half duplex, 20/200Mbps at full duplex
• Buffer Capacity: 768Kb
• Jumbo Frame: 2KB
• Switching Capacity: 1Gbps
• LED: Ethernet (1, 2, 3, 4, 5), Power
• Transfer Method: Store and forward
• Certifications: CE, RoHS

Shipping Dimensions

• Length: 8.7 cm
• Width: 8 cm
• Height: 8.5 cm
• Weight: 0.15 kg
