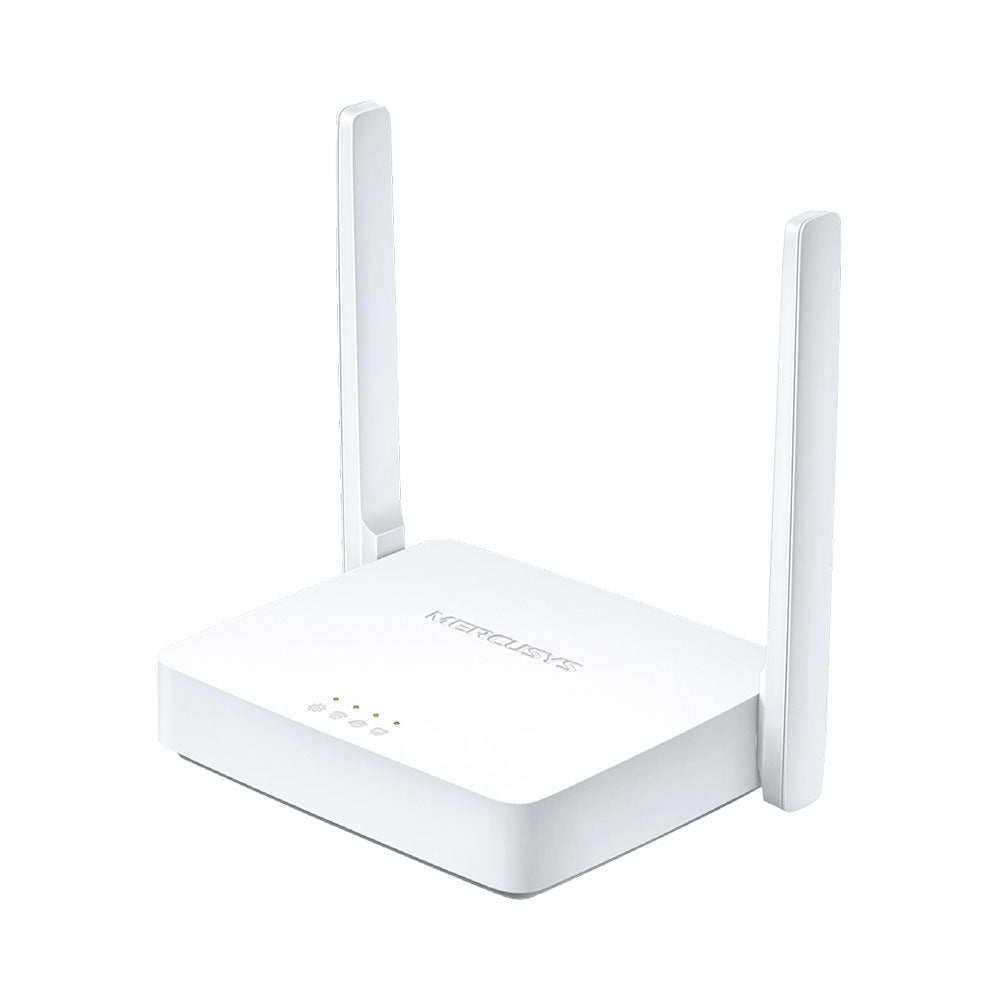

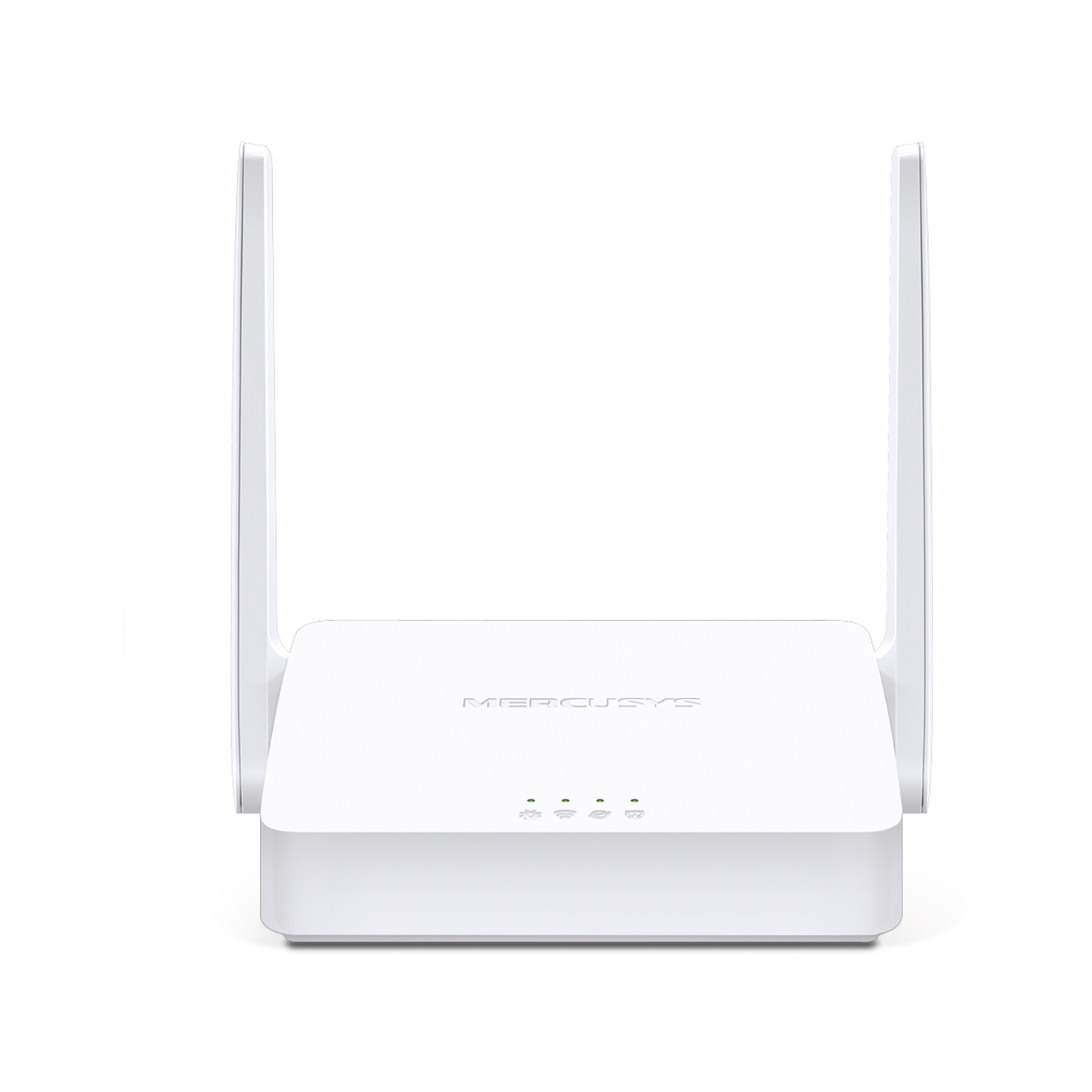

MERCUSYS 300MBPS WIRELESS N ROUTER

Features

• 300Mbps wireless transmission rate is ideal for basic work
• Two 5dBi antennas provides broad wireless coverage
• Intuitive webpage guides you through the setup process in minutes

Specifications

• Dimensions: (W X D X H) 135.77x93.31x25.85mm
• External Power Supply: 5VDC/0.6A
• Antenna Type: 2 x 5dBi fixed omni directional antennas
• Signal Rate: 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
• Button: RESET
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4 - 2.4835GHz
• Reception Sensitivity:
• 270M: -70dBm@10% PER
• 130M: -74dBm@10% PER
• 108M: -77dBm@10% PER
• 54M: -76dBm@10% PER
• 11M: -90dBm@8% PER
• 6M: -92dBm@10% PER
• 1M: -97dBm@8% PER
• Interfaces: 2 10/100Mbps LAN ports
• 1 10/100Mbps WAN port
• Certifications: CE, ROHS
• Transmission Power: <20dBm
• Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• Wireless Functions: WDS bridge
• WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
• Management: Parental Control, Access control, Local management, Remote management
• DHCP: Server
• Port Forwarding: Virtual server, UPnP, DMZ
• Dynamic DNS: DynDNS、NO-IP
• Firewall Security: IP and MAC address binding
• Protocols: IPv4
• Guest Network: 2.4GHz guest network

Shipping Dimensions

• Length: 23.8 cm
• Width: 16.5 cm
• Height: 3.6 cm
• Weight: 0.30 kg
