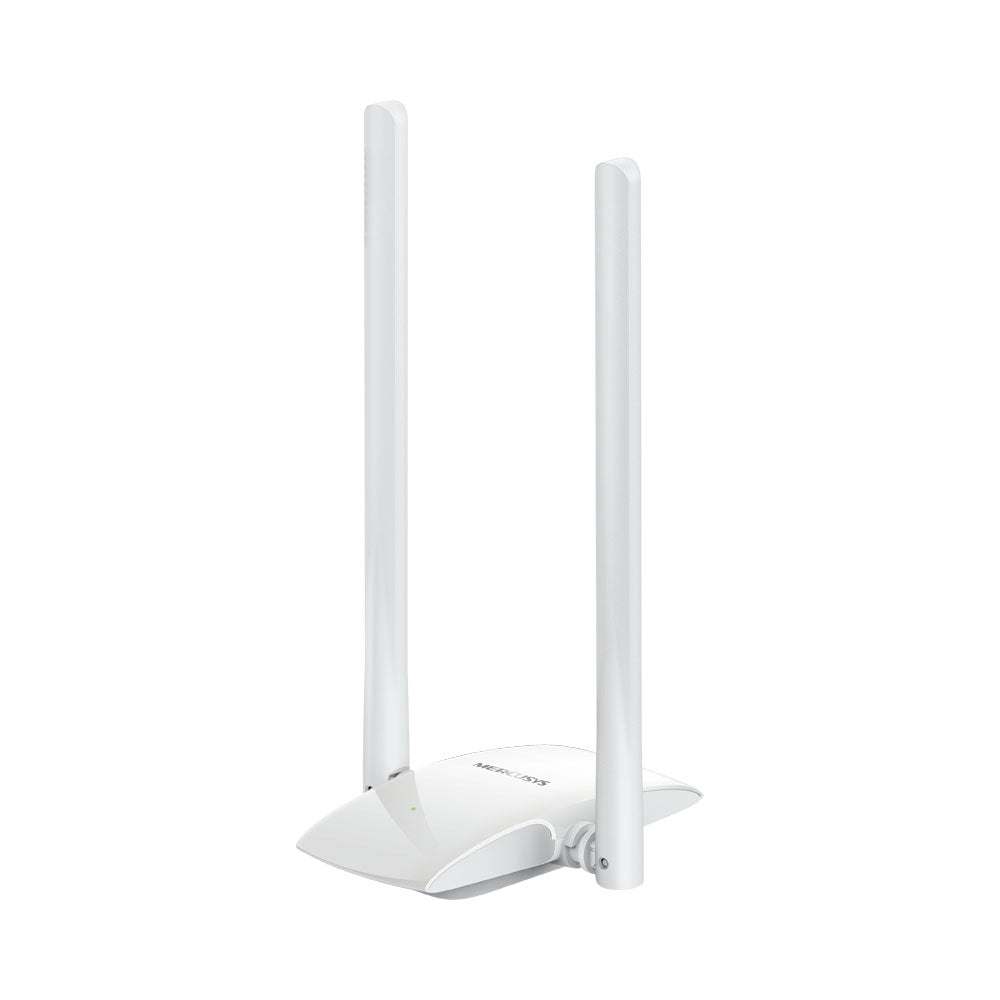

MERCUSYS 300MBPS HIGH GAIN WIRELESS USB ADAPTER

Features

• 300Mbps Wireless Speed - Enjoy stable Wi-Fi performance for everyday internet activities such as browsing, streaming, and video calls
• 5dBi High-Gain Antenna - External antenna significantly improves signal reception and transmission for stronger connectivity
• Adjustable Multi-Directional Antenna - Easily rotate and position the antenna for the best wireless signal
• Flexible USB Extension Cable - Allows convenient placement of the adapter to achieve optimal reception
• Enhanced Wireless Security - Supports WPA/WPA2 encryption to protect your network from unauthorised access
• Easy Setup for Windows - Quick installation with driver support for Windows operating systems

Specifications

Antenna Type

• External

Dimensions (W × D × H)

• 113.2 × 63.8 × 21.7mm (Without Antennas)
• 113.2 × 100.5 × 201.1mm (With Vertical Antennas)

Wireless Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

Frequency

• 2.400~2.4835GHz

Signal Rate

• 11n: up to 300Mbps (Dynamic)
• 11g: up to 54Mbps (Dynamic)
• 11b: up to 11Mbps (Dynamic)

Reception Sensitivity

• 300M: -68dBm @10% PER
• 270M: -68dBm @10% PER
• 144M: -71dBm @10% PER
• 130M: -71dBm @10% PER
• 54M: -74dBm @10% PER
• 11M: -86dBm @8% PER
• 6M: -90dBm @10% PER
• 1M: -94dBm @8% PER

Transmission Power

• ≤20dBm (EIRP)

Wireless Security

• WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK

Interface

• Micro USB2.0

Certifications

• CE
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

System Requirements

• Windows 10 / 8.1 / 8 / 7 / XP (32/64bit)

Shipping Dimensions

• Length: 28.25 cm
• Width: 13.45 cm
• Height: 4.15 cm
• Weight: 0.22 kg
