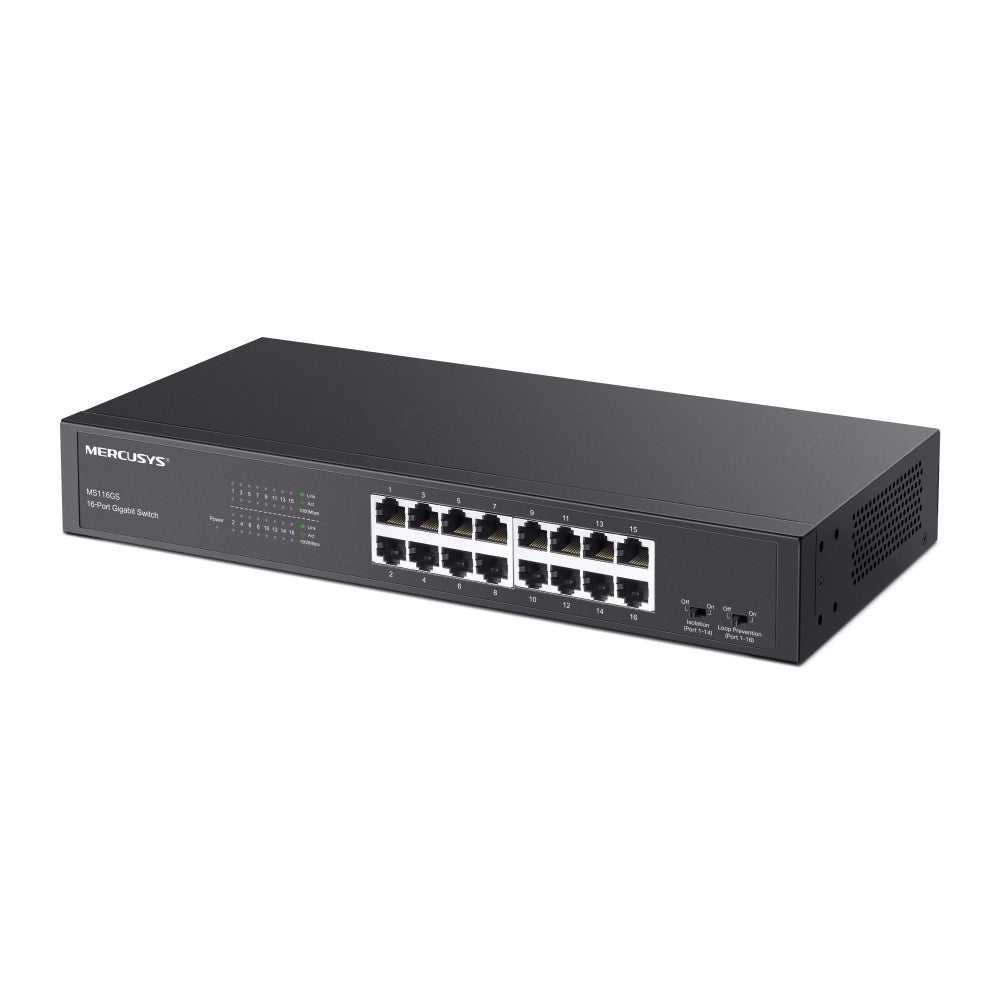

MERCUSYS 16-PORT GIGABIT DESKTOP/RACKMOUNT SWITCH

Features

• 16× Full Gigabit Ports - 16× 10/100/1000Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX for high-speed wired connectivity
• Plug-and-Play Operation - Simple setup with no configuration required, saving time and effort
• Isolation Mode - One-click client traffic separation for improved security and stable network performance
• Loop Prevention - Detects and prevents loop-related issues to maintain a reliable network structure
• Durable Metal Casing - Robust housing with efficient heat dissipation for long-term stability
• Flexible Desktop Design - Compact form factor suitable for home, office or small business networking environments

Specifications

Standards

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1p

Interface

• 16× 10/100/1000Mbps RJ45 Ports

Network Media (Cable)

• 10BASE-T: UTP CAT3, 4, 5 Cable (Max. 100m)
• 100BASE-TX/1000BASE-T: UTP CAT5, 5e or Above Cable (Max. 100m)

Auto-Negotiation

• Yes

Auto Mdi/Mdix

• Yes

Power Supply

• 100~240VAC, 50/60Hz

Forwarding Mode

• Store and Forward

Switching Capacity

• 32Gbps

Mac Address Table

• 8K

Advanced Features

• 802.3X Flow Control
• 802.1P/DSCP QoS
• Loop Prevention
• Isolation

Led Indicators

• Power
• Link/Act
• 1,000Mbps

Dimensions (W × H × D)

• 294 × 140 × 44mm

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

Certifications

• CE
• RoHS

Shipping Dimensions

• Length: 34 cm
• Width: 23.5 cm
• Height: 8 cm
• Weight: 1.73 kg
