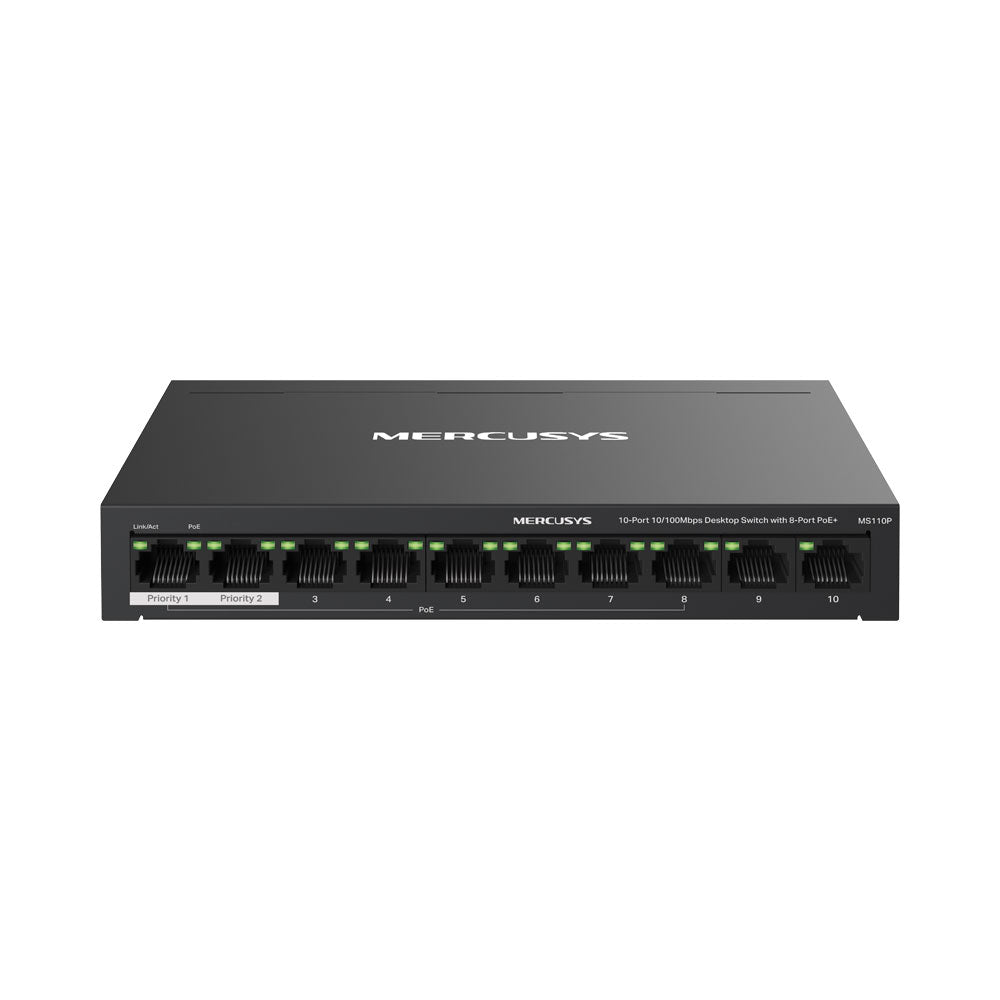

MERCUSYS 10-PORT DESKTOP SWITCH WITH 8-PORT POE+

Features

• 8× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 65W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment
• PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE powered devices
• Fast Ethernet Connectivity - 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems
• Extend Mode up to 250m - Extends PoE transmission distance up to 250m for flexible camera and device placement
• Durable Metal Housing - Robust metal design with desktop or wall-mount installation for long-term reliability

Specifications

Dimensions (W × D × H)

• 171 × 98 × 27mm

Poe Ports

• 8× PoE+ Ports (Ports 1~8)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 65W

Interfaces

• 10× 10/100Mbps RJ45 Ports
• Auto-Negotiation, Auto MDI/MDIX

External Power Supply

• External Power Adapter (Output: 53.5V 1.31A)

Installation

• Desktop
• Wall Mount

Standards And Protocols

• IEEE 802.3x Flow Control

Data Rates

• 10/100Mbps at Half-Duplex
• 20/200Mbps at Full-Duplex

Jumbo Frame

• 2KB

Mac Address Table

• 2K

Max Heat Dissipation

• 10.064 BTU/h (No PD Connected)
• 263.568 BTU/h (With 65W PD Connected)

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing

Shipping Dimensions

• Length: 18.7 cm
• Width: 12.5 cm
• Height: 8.6 cm
• Weight: 0.57 kg
