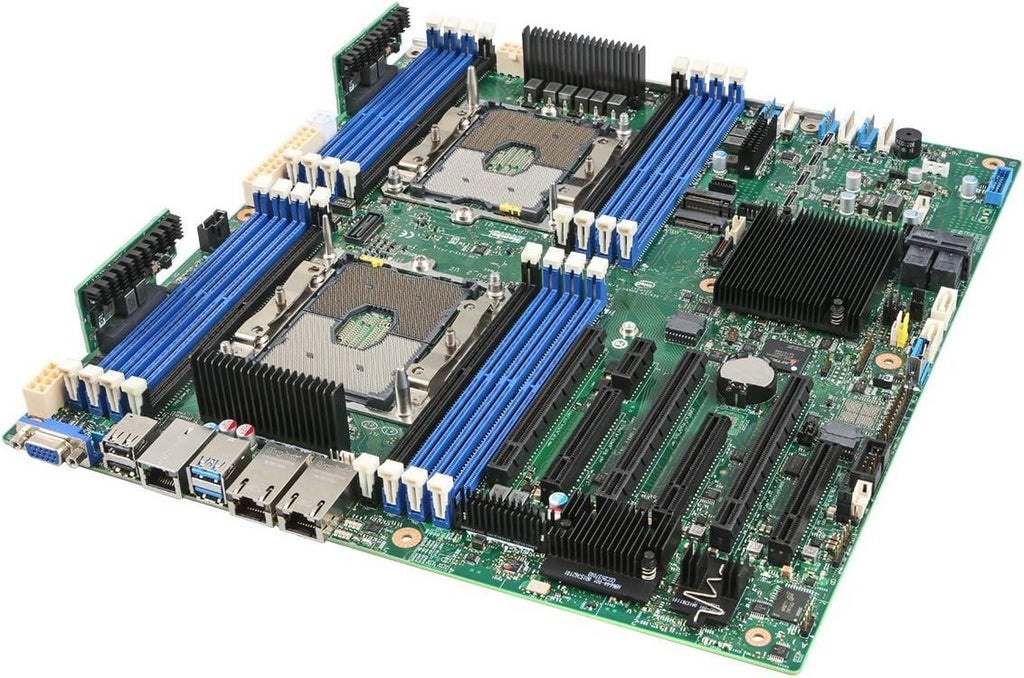

Intel s2600STB Dual Socket LGA3647 Sever Mainboard
For Xeon Scalable series
Intel C624 chipset with VRoC ( VMD+RSTe5.0 )
16x 6-channels DDR4-2666 Memory (ECC-Registered or LRDiMM only) up to 768GB
10x SATA6G with raid 0/1//0+1/10 (2x SATA6G + 8x SAS/SATA6G)
2x M.2/NGFF (SATA or PCiE)
4x OCuLink connectors (for direct attach 2.5? NVME SSD with intel VMD)
On-board VGA + Dual intel 10Gb LAN
3x Pci-E 3.0(16x) + 3x Pci-E 3.0(8x)
2x USB3.0+ 2x USB2.0
Support optional serial/RS232 add-on cable
The S2600STB is ideal for pedestal, rack mount or customer servers. The S2600STB is compatible with the Intel Server Chassis P4304XXMFEN2 and the Intel Server Chassis P4304XXMUXX. Custom and non-Intel chassis are also supported
