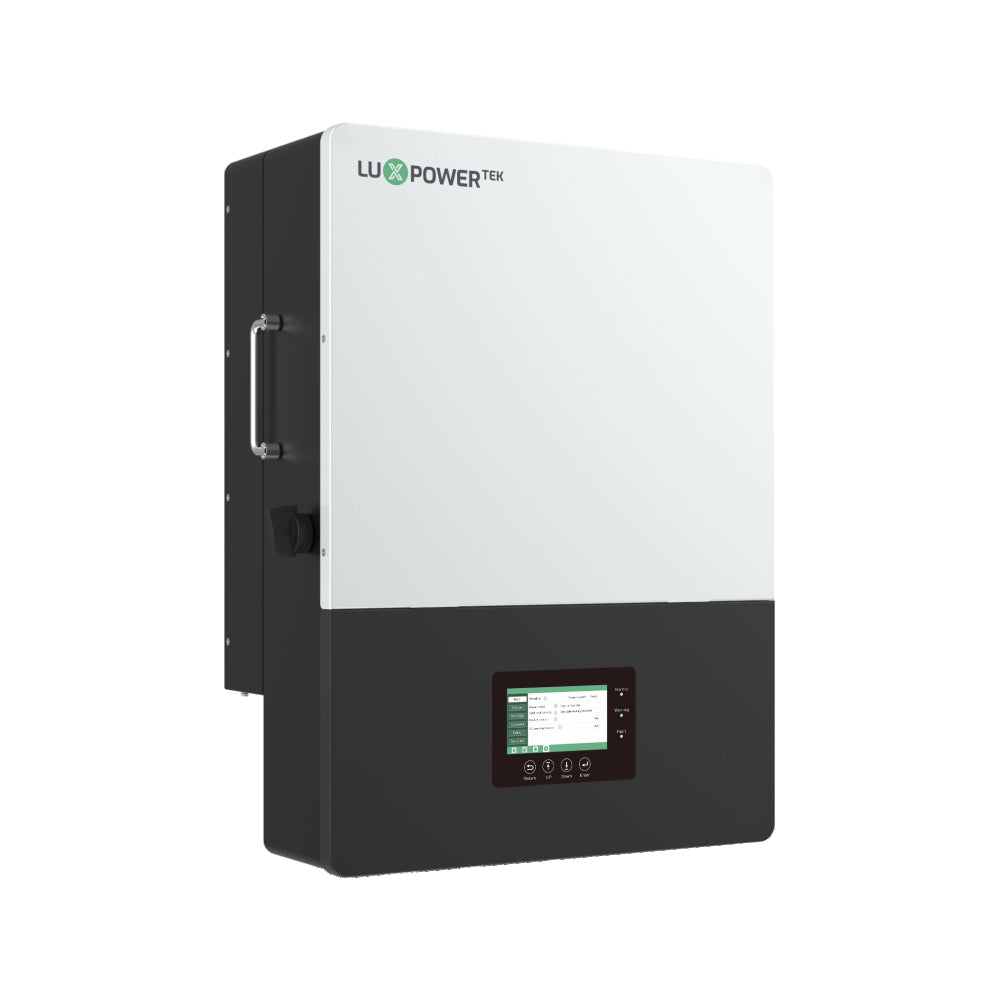

LUXPOWER LXP-LB-EU-12K 12KW SINGLE-PHASE HYBRID ON-GRID 3X MPPT INVERTER

Features

• 12kW High Output Performance - Delivers reliable power for residential and light commercial energy demands
• Triple MPPT Technology - Maximises solar harvesting with 3 independent MPPT inputs
• Hybrid Energy Management - Seamlessly integrates solar, battery, grid and generator power
• Fast UPS Switching - <20ms transfer ensures uninterrupted power during outages
• High Efficiency Design - Up to 99% efficiency for optimised energy conversion
• 250A Charge and Discharge Capability - Enables rapid battery charging and high load support
• Parallel Expansion Support - Scale systems with up to 10 units in parallel
• Smart Load Control - Prioritises and manages energy usage efficiently
• AC Coupling Support - Ideal for upgrading existing solar installations
• IP65 Rated Enclosure - Durable design for indoor and outdoor installations

Specifications

Pv Input (Dc)

• Max. PV Array Power: 18,000W
• Rated PV Input Voltage: 360V
• MPPT Voltage Range: 120~480V
• PV Voltage Range: 100~600V
• MPPT Inputs: 3

Battery

• Battery Type: Lithium-Ion and Lead-Acid
• Nominal Voltage: 48V
• Voltage Range: 40~60V
• Max. Charge and Discharge Current: 250A
• Max. Charging Power: 12,000W

Ac Output (Grid)

• Rated Output Power: 11,500W
• Rated Voltage: 230V
• Frequency: 50Hz
• Rated Output Current: 50A
• Power Factor: 0.99

Ups Output

• Rated Output Power: 11,500W
• Rated Voltage: 230V
• Output Frequency: 50/60Hz
• Switching Time: 20ms

Efficiency

• Max. Efficiency: 99%
• MPPT Efficiency: 99%
• EU Efficiency: 97.5%
• Max. Charging Efficiency: 96%
• Max. Discharging Efficiency: 94%

Protection

• PV Reverse Polarity Protection: Yes
• Over Current and Over Voltage Protection: Yes
• Anti-Islanding Protection: Yes
• AC Short Circuit Protection: Yes
• Leakage Current Protection: Yes
• Surge Protection: Type III

General

• Ingress Protection: IP65
• Cooling: Fan
• Noise Level: <50dB
• Display: Colour Touch LCD
• Communication: RS485, Wi-Fi, CAN
• Dimensions: 490 × 670 × 265mm
• Weight: 50kg
