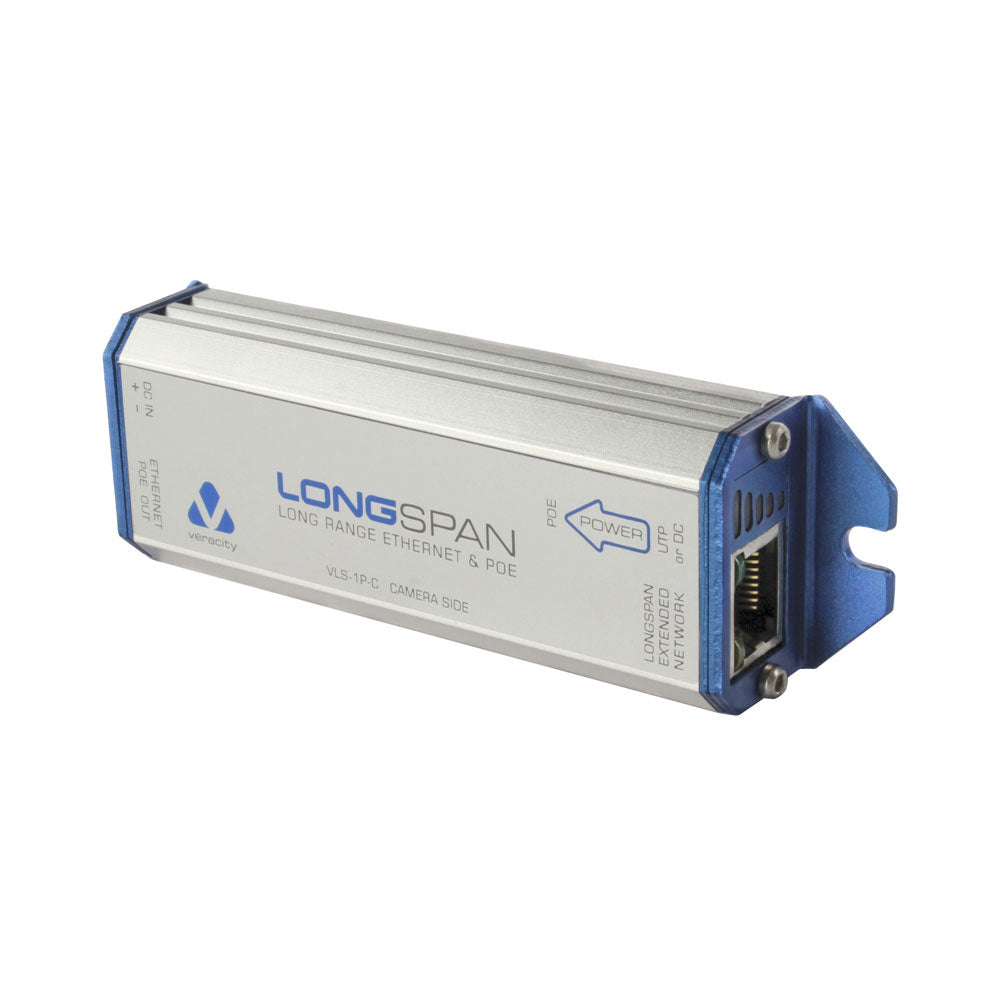

LONGSPAN POE CAMERA UNIT

Features

• Camera-Side LONGSPAN Device - Connects directly to IP cameras for extended-distance installations
• Full-Bandwidth Ethernet - Supports 100Base-TX Ethernet up to 820m using standard network cable
• PoE and PoE+ Delivery - Provides up to 25W of power to connected IP cameras
• Plug-and-Play Operation - Automatically optimises performance without manual configuration
• SAFEVIEW LED Diagnostics - Displays link status and available power for easy installation
• Ideal for Remote Surveillance Deployments - Perfect for long cable runs in security and monitoring

Specifications

Power

• PoE Out (Camera): IEEE 802.3af (PoE) or IEEE 802.3at (PoE+)

Longspan Interface

• Connector: RJ45
• Cable: CAT6, CAT5e, CAT3 or Other 1/2/4-Pair UTP
• Wiring: Patch Wiring Recommended, Other Wiring Auto-Corrected
• Rate: 200Mbps (100Mbps Full-Duplex) up to 820m (CAT6)
• Rate: 20Mbps (10Mbps Full-Duplex) up to 1050m (CAT6), Auto-Adapts

Ethernet Interface

• Connector: RJ45
• Cable: Patch or Crossover, Auto-Detected
• Rate: 100Base-TX or 10Base-T, Full-Duplex with Auto-Negotiation

Led Indicators

• Ethernet RJ45: Yellow - Link/Activity, Green - Power Good
• LONGSPAN Link RJ45: Yellow - Link/Activity, Green - 10/100Mbps
• PoE: Power Available (5/10/15/20/25W)
• PoE and Link Status: Green/Amber, Diagnostic Codes (Red)

Physical / Environmental

• Dimensions: 120 × 36 × 23mm (Including Brackets)
• Weight: 100g
• Operating Temperature: -40~70°C
• Relative Humidity: Up to 85% Non-Condensing
• Compliance: FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 (Rail + Metro)

Shipping Dimensions

• Weight: 0.20 kg
