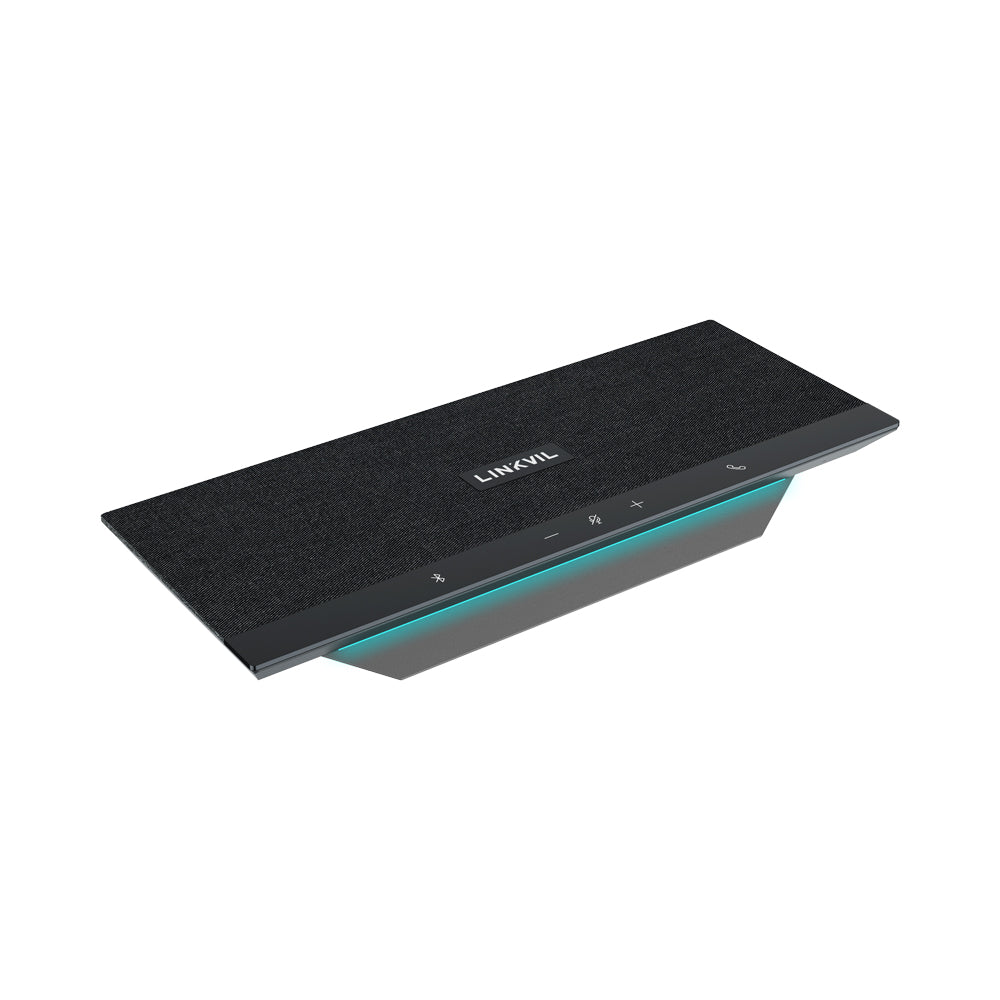

LINKVIL CS40 5W CONFERENCING SPEAKERPHONE

Features

• Trio-mic with speaker - 5W speaker for medium meeting rooms with trio-omnidirectional microphones and up to 3m voice pickup, featuring ENC, ANS and AGC
• Flexible connectivity - Supports USB Type-A, USB Type-C and Bluetooth
• Wide compatibility - Works with mainstream softphone and UC platforms
• Instant access touch controls - Pickup/Hangup, Play/Pause, Volume Up/Down, Mute and Bluetooth with softphone/UC command support
• Multi-device support - Pair up to 8× devices and connect 2× simultaneously
• Elegant design - Fabric-covered speaker with a clean, premium finish
• Modern aesthetics - Ambient lighting enhances any workspace

Specifications

Peaker

• Speaker Size: ø52mm
• Rated Power: 4Ω 5W
• Max Output Power: 8W
• RMS Power: 5W
• Sensitivity: 87dB ±2dB
• Frequency Range: 100Hz~20kHz
• Music Mode Bandwidth: 100Hz~20kHz
• Speak Mode Bandwidth: 100Hz~8kHz

Microphone

• Type: 3× Omnidirectional Analogue Microphones
• Voice Pickup Range: Up to 3m
• Sensitivity: -32dBFS
• Frequency Range: 20Hz~8kHz
• SNR: >65dB

Audio

• Full Duplex: Supported
• ENC: Environmental Noise Cancellation
• ANS: Adaptive Noise Suppression
• AGC: Automatic Gain Control

Connectivity

• Connection: USB Type-A / USB Type-C and Bluetooth
• Bluetooth Version: 5.4
• Profiles: HSP V1.2, HFP V1.7, A2DP V1.2
• Operating Range: Up to 10m
• Pairing Capacity: Up to 8 Devices
• Simultaneous Connections: 2×

Battery

• Capacity: 4,000mAh
• Charging Time: 3.5 Hours
• Max Charging Current: DC5V 2A
• Talk Time: Up to 10 Hours
• Music Playback: Up to 8 Hours
• Standby Time: Up to 16 Hours

Physical

• Controls: 5× Touch Buttons
• Power: USB / Lithium Polymer Battery
• Dimensions: 300 × 120 × 38mm
• USB Cable Length: 1.2m
• Weight: 526g

Environment

• Operating Temperature: -10~60°C
• Storage Temperature: -20~70°C
• Operating Humidity: 10~95% RH

Shipping Dimensions

• Length: 33.5 cm
• Width: 14.9 cm
• Height: 6.6 cm
• Weight: 0.75 kg
