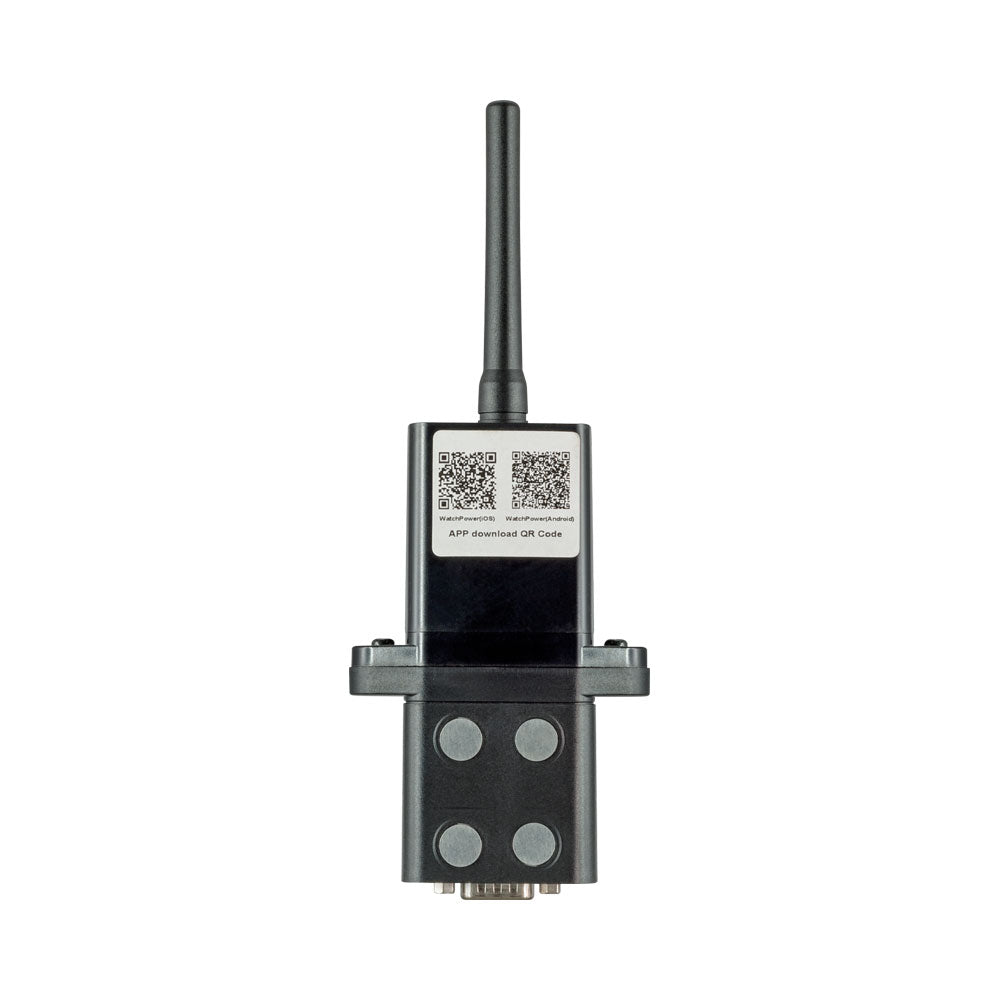

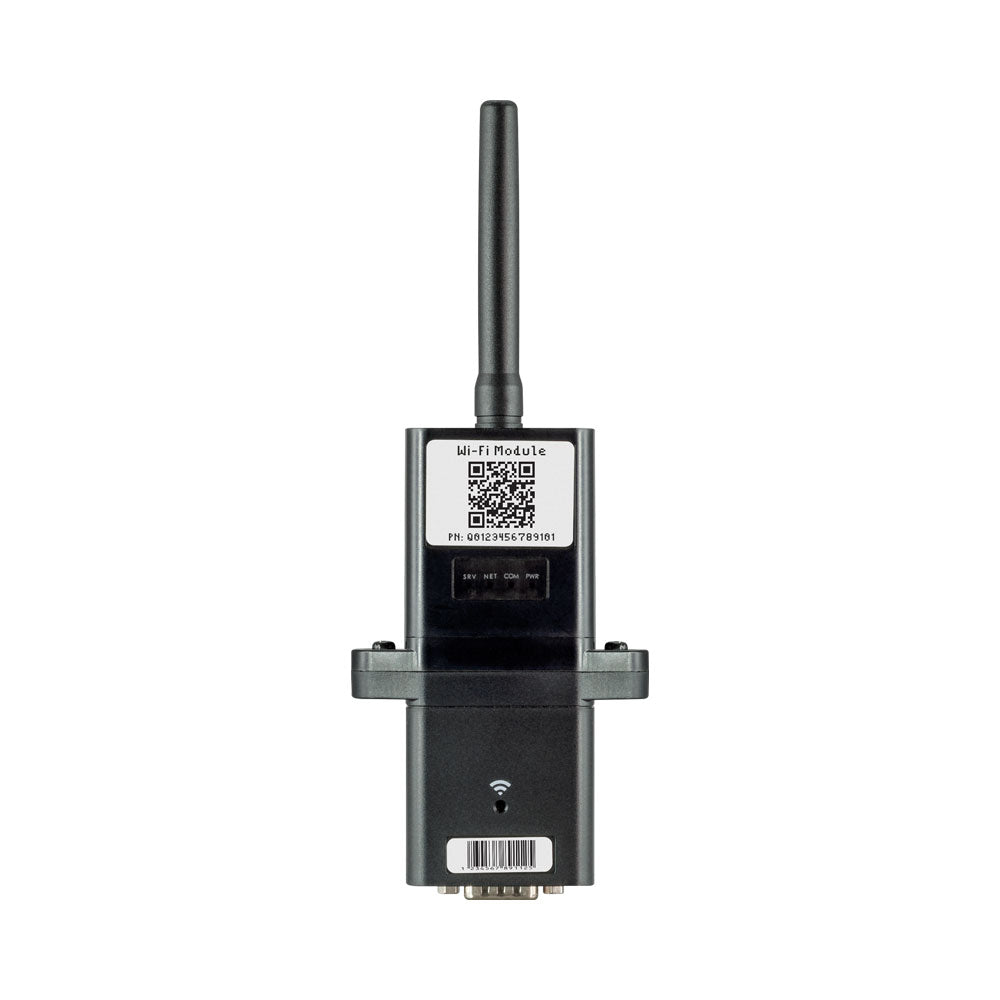

LinkQnet Wi-Fi Module for MKS and King Inverters
This Wi-Fi module enables wireless communication between off-grid inverters and monitoring platforms. Users have a complete remote monitoring and controlling experience for inverters when combining the Wi-Fi module with the WatchPower APP, available for both iOS and Android-based Devices. All data loggers and parameters are saved in iCloud.
FEATURES:
- Real-time dynamic graphs of inverter data
- Cloud storage for history data and event log
- Remote monitoring and control of multiple inverters via mobile APP (iOS and Android)
- Parameter settings available (output setting, output priority setting, AC input range, battery setting, etc.)
| 120 |
| 802.11 b/g/n |
| WEP, WPA/WPA2 |
| 2.4G |
| 2.5dBi |
| 100 meters (open environment) |
| 72Mbps |
| 18.5dbm (70mW) |
| Yes |

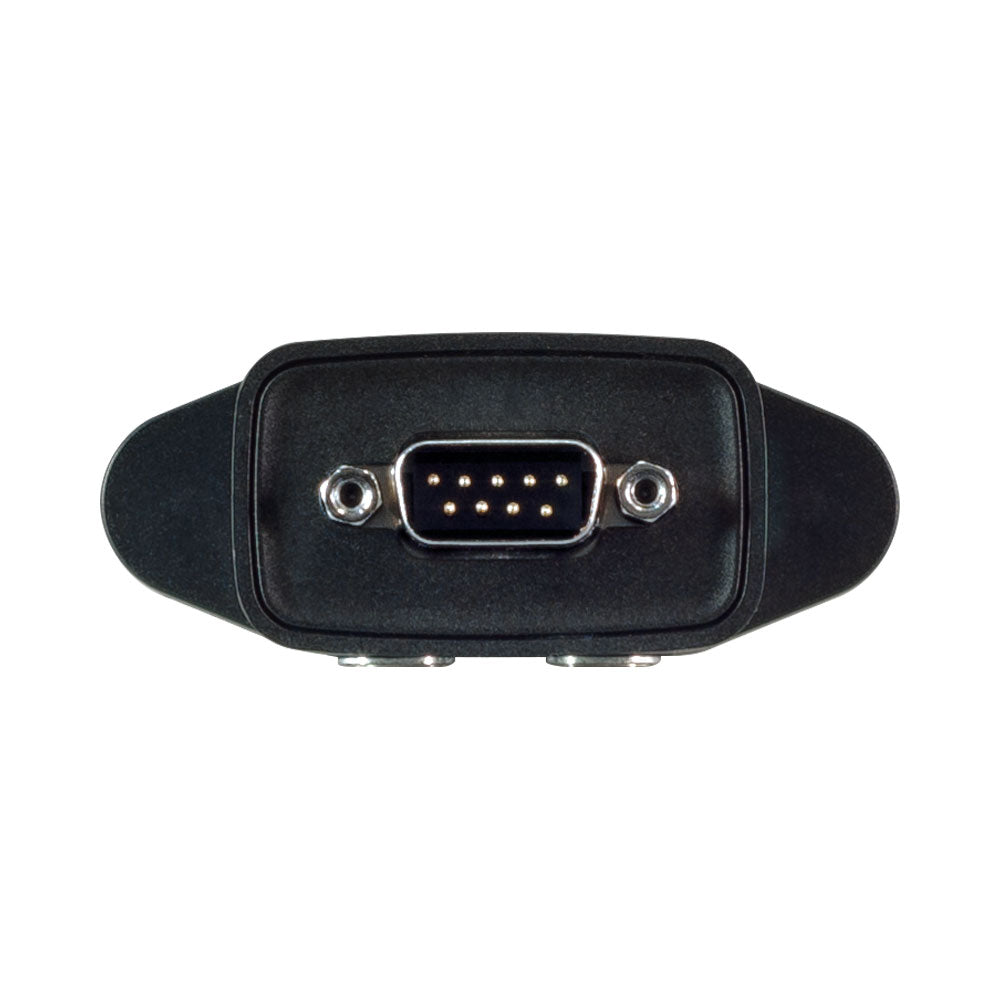

| RS232 |
| Modbus-TCP |
| AP/STA |
| Mobile APP |
| 5V-12V |
| 2 watt (max.) |
| -20°C ~ 75°C |
| 0 ~ 95% |
| -30°C ~ 80°C |
| 28 x 46 x 172 |
