Description
Features
- High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance SPECIFICATIONS
- The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd
- Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers
- Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement
- It uses internationally sourced components to ensure consistency, performance and reliability
- The firmware is interactively developed and robust
- The flexibility of both CAN bus and RS485 communications allows for a wide range of applications
- The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer
Specifications
Basic Parameters
- Rated Voltage: 25.6 Volts
- Rated Capacity: 200 Amp Hours
- Rated Energy: 5120 Watt Hours
- Rating: 0.5C
Operating Parameters
- Operating Voltage Range: 22.4 Volts - 28.0 Volts
- Charge Voltage Range: 27.6 Volts - 28.0 Volts (Typical Inverter Bulk/Float Charge can be set to 27.7V)
- Cut-Off Voltage: 22.4 Volts (Typical Inverter Cut Off can be set to 23.0V)
- Recommended Charge Current: 50 Amps
- Maximum Charge Current: 100 Amps
- Maximum Discharge Current: 100 Amps
Physical Parameters

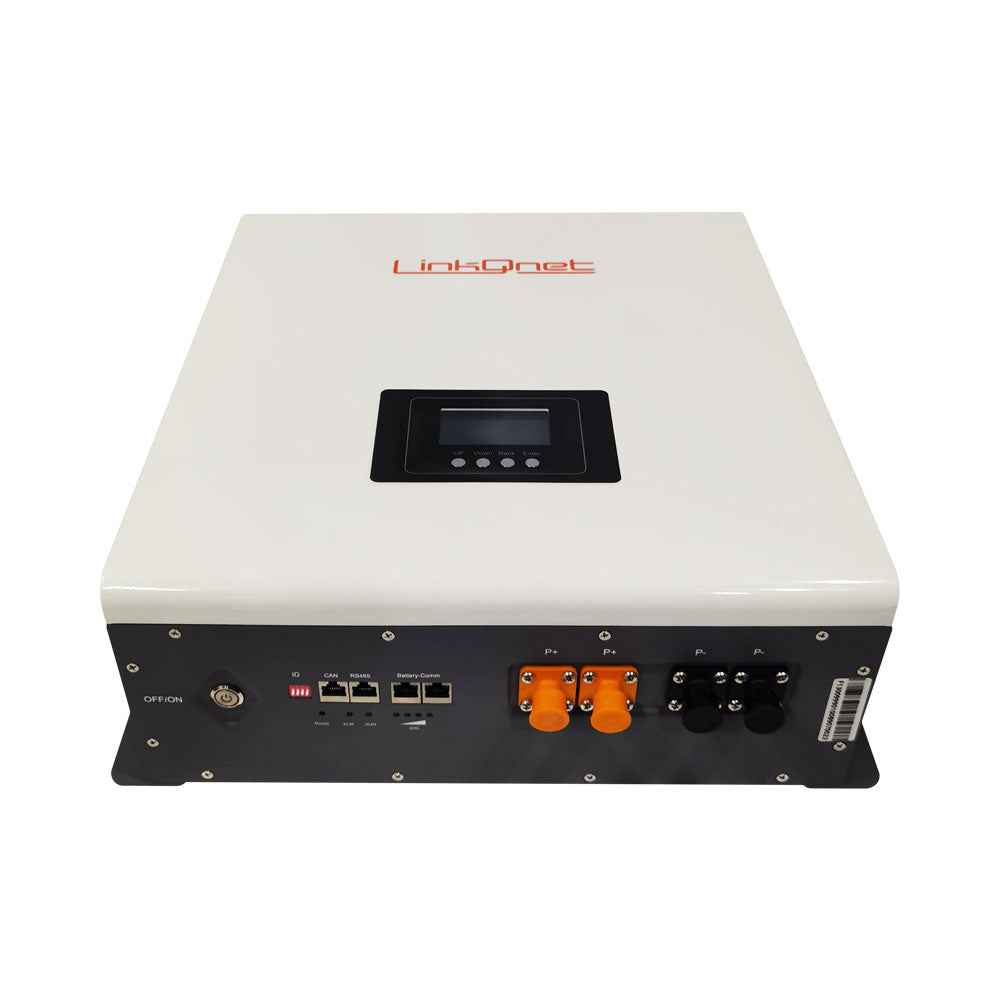

- Dimensions: 400mm (D) x 550mm (W) x 160mm (H) - Optimised for wall mounting
- Weight: 49kg
- Communication Ports: RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports
- Display: LED and LCD with cursor keys for BMS Status and State of Charge
- Output Terminal: 2 x Red Amphenol SurLok Positive, 2 x Black Amphenol SurLok Negative
- Output Protection: Internal Electronic Circuit Disconnecter
Environmental
- Humidity: 5% - 95% Relative Humidity
- Charge Temperature Range: 0°C to 45°C
- Discharge Temperature Range: -20°C to 60°C
- Storage Temperature Range: -20°C to 45°C
Service Life
- Cycle Life: More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge
- Hardware Design Life: Fifteen Years
- Warranty: Five Years, based on the terms and conditions of the warranty policy
Certification
- Safety: CE, EMC, TUV (IEC62619), UL1973
- Transportation: UN38.3
Installation
- Inverter Integration to BMS: Requires customised cable for each specific inverter brand, refer to manual
- Inverter Integration without BMS: Will emulate Lead Acid battery, can be optimised by altering inverter parameters
- BMS base protocol compatibility: Voltronic “LIb" BMS protocol / Optional Pylontech BMS protocol
- Addressable Parallel Stacking: Battery packs can be paralleled up to sixteen addressable units per solution
- Installation Competency: Not consumer installable. Needs to be wired into inverter/UPS by a qualified electrical contractor with appropriate experience.
Shipping Dimensions
- Weight: 51.00 kg
