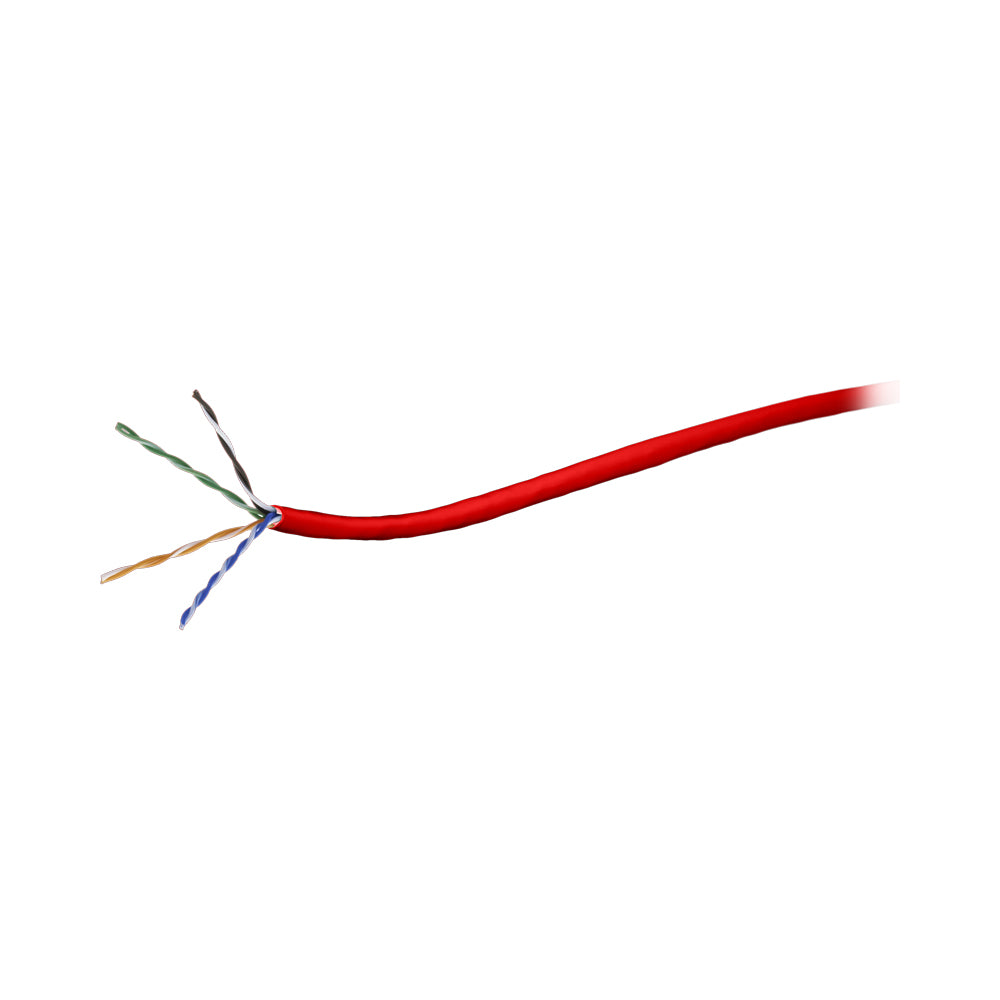

LINKQNET CAT5E UTP SOLID NETWORK CABLE - RED (SOLD PER METER OR 500M DRUM)

Features

• Category 5e Performance - Supports high-speed Ethernet networking for reliable LAN connectivity
• 24AWG Solid Copper Conductors - Ensures stable signal transmission and consistent network performance
• Four Twisted Pair Design - Minimises crosstalk and interference for cleaner data signals
• Standards Compliant - Meets ISO 11801, TIA/EIA 568-C.2 and EN50173 structured cabling standards
• Durable PVC Jacket - Provides protection and flexibility for structured cabling installations
• Wide Operating Temperature Range - Reliable performance from -20°C to +70°C

Specifications

Conductor

• 24AWG Solid Bare Copper (0.511mm)

Insulation

• Polyethylene

Pair Colours

• Blue / White-Blue (0.95mm)
• Green / White-Green (0.95mm)
• Orange / White-Orange (0.91mm)
• Brown / White-Brown (0.91mm)

Sheath

• PVC
• Nominal OD: 5.2mm

Fire Safety Rating

• IEC 60332-1

Temperature Range

• Installation: 0~50°C
• Operational: -20~70°C

Electrical Characteristics (At 20°C)

• DC Resistance: 93.8 Ohms/km Max.
• Resistance Unbalance: 2% Max.
• Mutual Capacitance: 56 nF/km Max.
• Capacitance Unbalance: 1000 pF/km Max.
• Skew: 450 ns/km Max.
• Velocity of Propagation: 68% (0.68 × 3 × 10⁸ m/s)
• Characteristic Impedance: 100 Ohms ±15% (1~100MHz)
