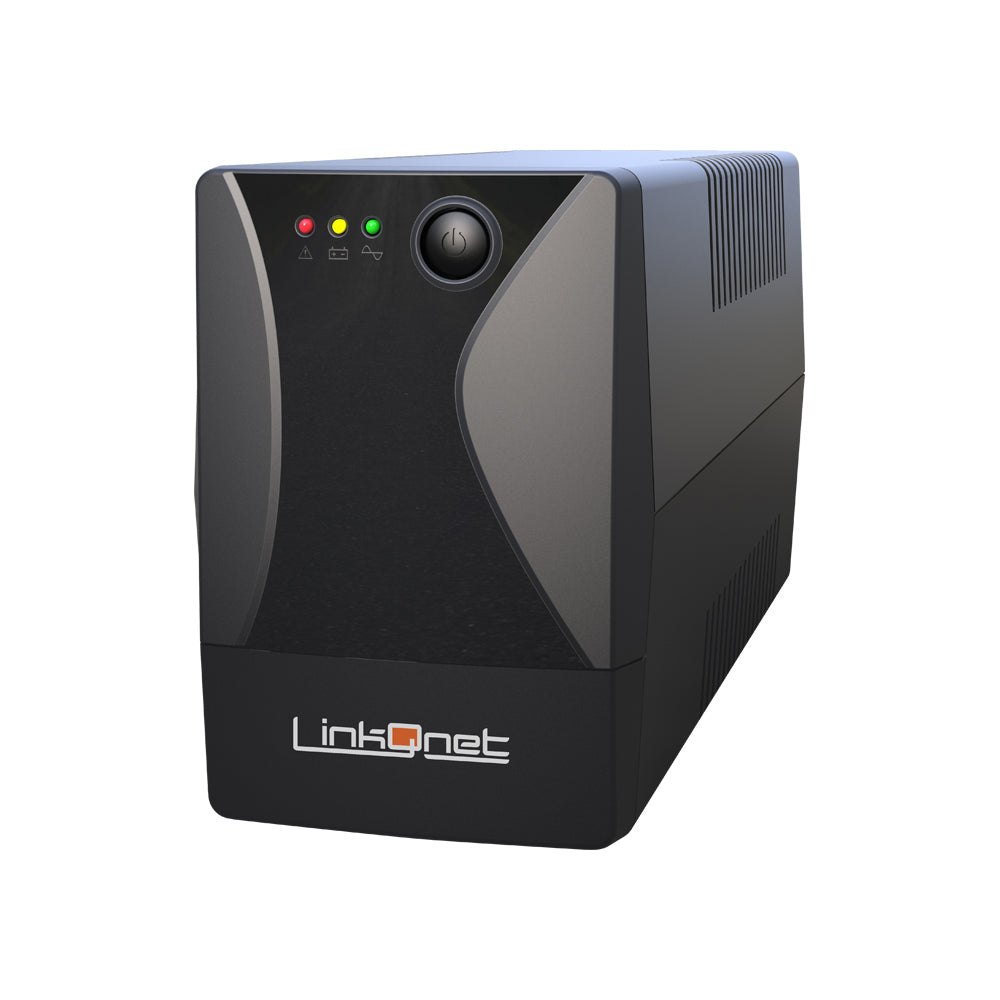

LINKQNET 800VA/480W 230V/50HZ LED DISPLAY 9AH

Features

• Comprehensive power protections for surges and spikes
• Boost and buck AVR for voltage stabilisation
• Built-in self-diagnostic function
• Supports cold-start
• Supports off-mode charging
• Auto restart while AC is recovering

Specifications

• Capacity: 800 VA (480 W)
• Input Voltage: 230 Vac
• Input Voltage Range: 140 V ~ 300 V AC
• Input Frequency: >40 Hz (Auto-Sensing)
• Output Voltage Regulation (Battery Mode): 220 V / 230 V / 240 V ± 10%
• Output Frequency (Battery Mode): 50 Hz ± 1 Hz or 60 Hz ± 1 Hz
• Transfer Time: Typical 4 – 8 ms (Max ~13 ms)
• Output Waveform (AC Mode): Simulated sinewave
• Battery Configuration: 1 × 12 V 9 Ah
• Max Charge Current: 1 A
• AC Mode: Green Light (no LCD)
• Battery Mode: Orange Flash
• Fault: Red Light
• Protection: Short-Circuit, Overload, Over-Charge and Over-Discharge
• Battery Mode: Sounding every 10 s
• Low Battery: Sounding every 1 s
• Overload: Sounding every 0.5 s
• Fault: Continuous alarm
• Approx. Dimensions (D × W × H): 306 × 86 × 140 mm
• Operating Environment: 0 – 90% RH @ 0 – 40°C (non-condensing)
• Noise Level: Less than 40 dB

Shipping Dimensions

• Length: 21.3 cm
• Width: 35 cm
• Height: 14.2 cm
• Weight: 5.00 kg
