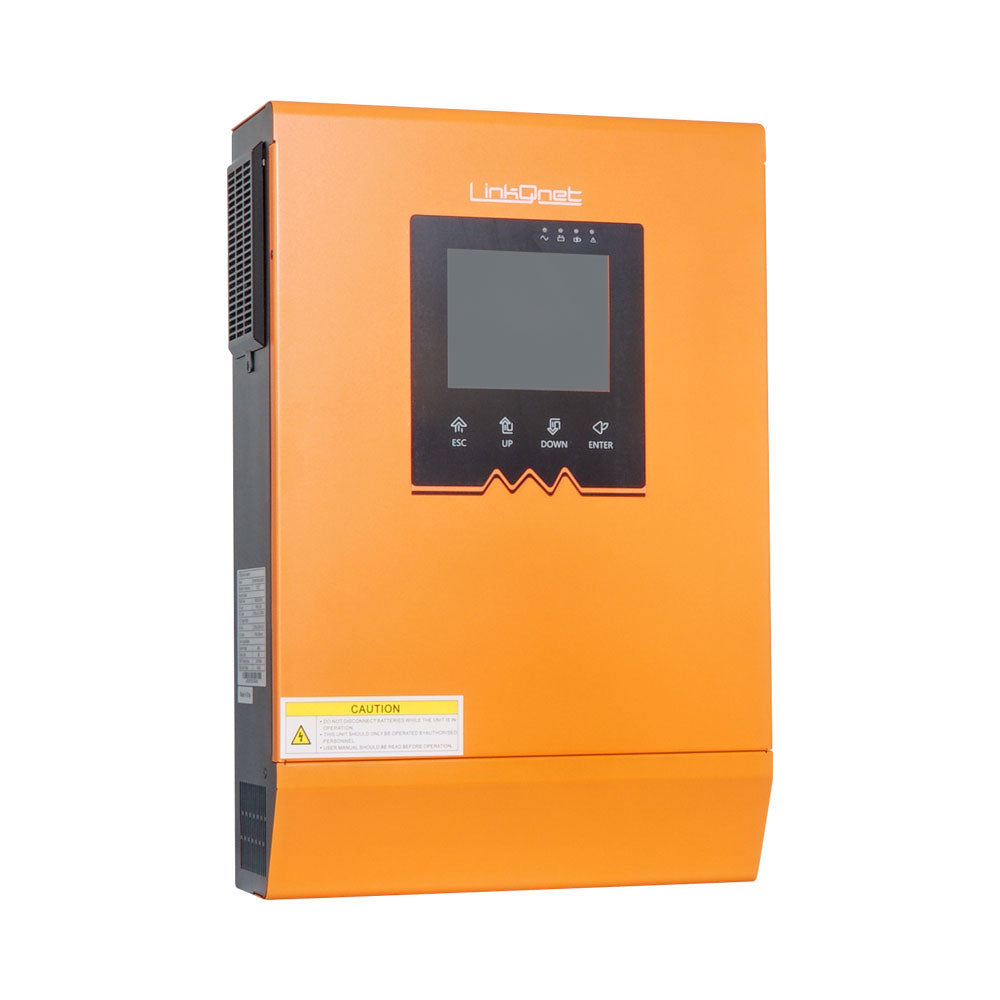

LINKQNET 5048TG2 PREMIUM 5KW OFF-GRID ON-GRID BACKUP MPPT SOLAR INVERTER

Features

• Parallel-Able Pure Sinewave Inverter with Unity Power Factor
• Built in 6000W MPPT High Voltage Solar Charge Controller (500V DC MAX)
• Configurable Input Voltage Range for Home Appliances or UPS Transfer (<10ms)
• Configurable Smart Battery Charging Current Based on Application with BMS Support
• Configurable AC/Solar Charger Priority with Load Power Source Mixing
• Battery Independent Design (MPPT voltages > 130V DC - Single Unit Only)
• Compatible With Mains or Generator Power
• Auto Restart When AC Recovers or PV Power is Available
• Overload / Over Temperature / Short Circuit Protection, Quieter Variable Speed Fans
• Dual Programmable AC Outlets (Allows You to Split Essential Loads and Critical Loads)
• Cold Start Function, Wi-Fi Monitoring Included (Wi-Fi Coverage is Required at Install Site)

Specifications

Inverter

• Peak Power: 5000VA (10000VA surge for max 10 seconds)
• RMS Power: 5000W (PF=1)
• AC Voltage: 230V (220V–240V adjustable)
• AC Waveform: Pure sine wave (50Hz / 60Hz auto sensing)
• Efficiency (Peak): >94%
• DC Voltage: 48V (Single unit can operate without batteries if MPPT voltage > 130V DC)
• Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode)
• Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode)

Charging

• AC Charge: 80A (adjustable)
• SCC Type: MPPT
• SCC Voltage: 120V–430V DC
• Max PV OC Voltage: 500V DC
• Max SCC Power: 6000W
• SCC Charge: 80A (adjustable)
• Max Combined Charge: 80A (adjustable)
• SCC Efficiency: 98%
• Standby Power Consumption: 2W (inverter can be configured to shut down if no load is present)

Options

• Parallel Capable: up to nine units in 1PH or three units in 3PH – parallel kit included
• Communication: USB-B, Wi-Fi module included
• Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom
• BMS Support: Yes – RS485/CANbus port for compatible battery packs
• Wi-Fi Support: Wi-Fi cloud data logging dongle included (2.4GHz, WPA2 Wi-Fi is required)
• Relay Support: Relay port (NC/NO) for remote control of a generator start or other devices
• Warranty: Two years – conditional

Physical

• Weight: 8.45kg
• Dimensions: 110mm (D) × 300mm (W) × 440mm (H)
• Operating Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature: 0°C to 50°C (room temperature)

Installation

• Installation Environment: Indoor environment with no exposure to direct external air in coastal regions
• Input Isolator and Surge Protection Device: 40A–63A dual pole (to be purchased), surge protection device recommended
• Input Circuit Breaker: 40A normal curve (to be purchased)
• Output Circuit Breaker: 25A normal curve (to be purchased)
• Bypass Switch: 40A–63A dual pole, double throw with centre off (to be purchased)
• Output Isolator: 25A–63A dual pole (to be purchased)
• Earth Leakage Relay: 63A with 30mA break leakage for plug circuits (to be purchased)
• PV Configuration and Surge Protection Device: 2 × 20A 600V solar fuse / isolator with surge protection device required if PV panels are installed; typical PV layout is 9 × 380W to 600W panels in series
