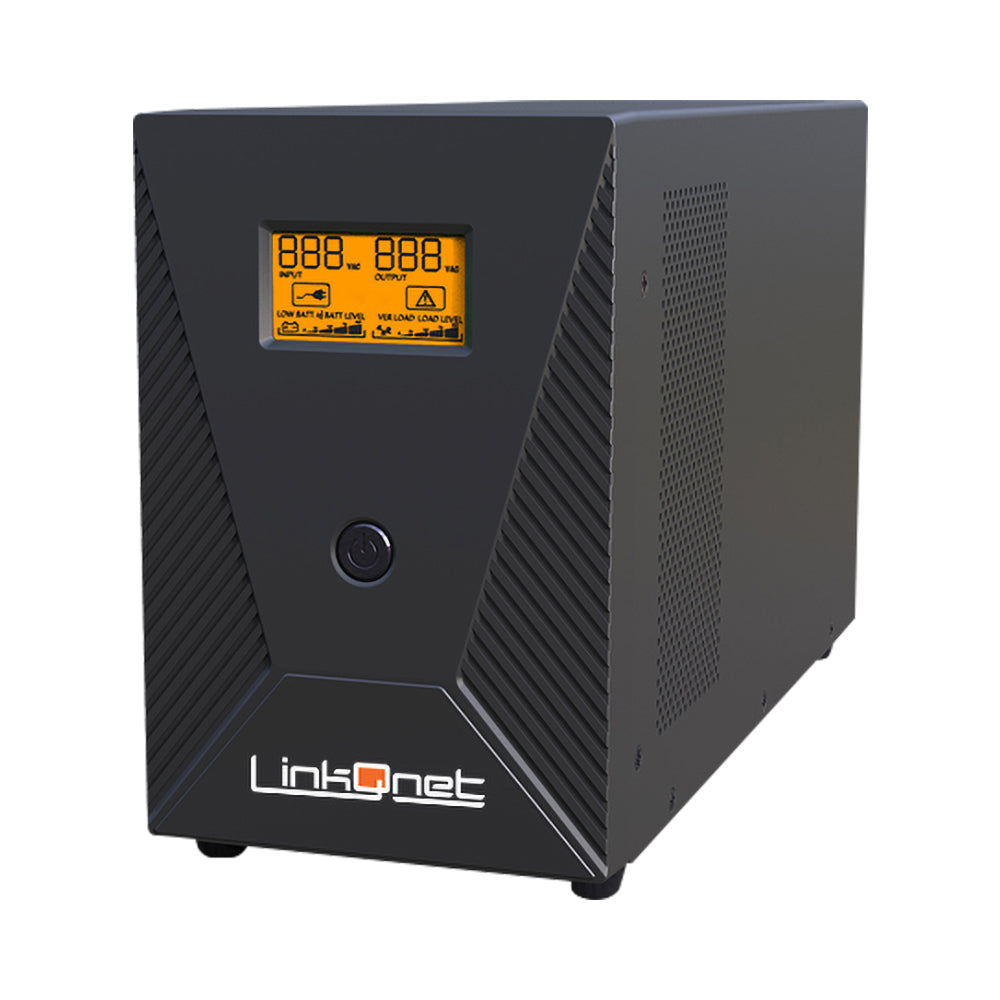

LINKQNET 3000VA/1800W,230VAC/50HZ,LCD DISPLAY,9AH

Features

• Comprehensive power protections for surges and spikes
• Boost and buck AVR for voltage stabilisation
• Built-in self-diagnostic function
• Supports cold-start
• Supports off-mode charging
• Auto restart while AC is recovering

Specifications

• Capacity: 3000 VA / 1800 W
• Input Voltage: 230 Vac
• Input Voltage Range: 140 V ~ 300 V ac
• Input Frequency: Auto-sensing (>40 Hz)
• Output Voltage Regulation (Battery Mode): 220 V / 230 V / 240 V ± 10 %
• Output Frequency (Battery Mode): 50 Hz ± 1 Hz or 60 Hz ± 1 Hz
• Transfer Time (Mains to Battery): Typical 4 – 8 ms (Max ~13 ms)
• Output Waveform (AC Mode / Battery Mode): Simulated Sinewave
• Battery Configuration: 4 × 9 Ah (12 V each)
• Max. Charge Current: 2 A
• Indicators: LCD display (AC mode, battery mode, fault)
• Protection: Short-circuit, overload, over-charge, over-discharge protection
• Battery Mode: Sounds every 10 s
• Low Battery: Sounds every 1 s
• Overload: Sounds every 0.5 s
• Fault: Continuous alarm
• Operating Environment: 0 ~ 90 % RH @ 0 ~ 40 °C (non-condensing)
• Approx. Dimensions: 345 × 148 × 230 mm
• Noise Level: Less than 40 dB

Shipping Dimensions

• Length: 30.5 cm
• Width: 51 cm
• Height: 21 cm
• Weight: 24.00 kg
