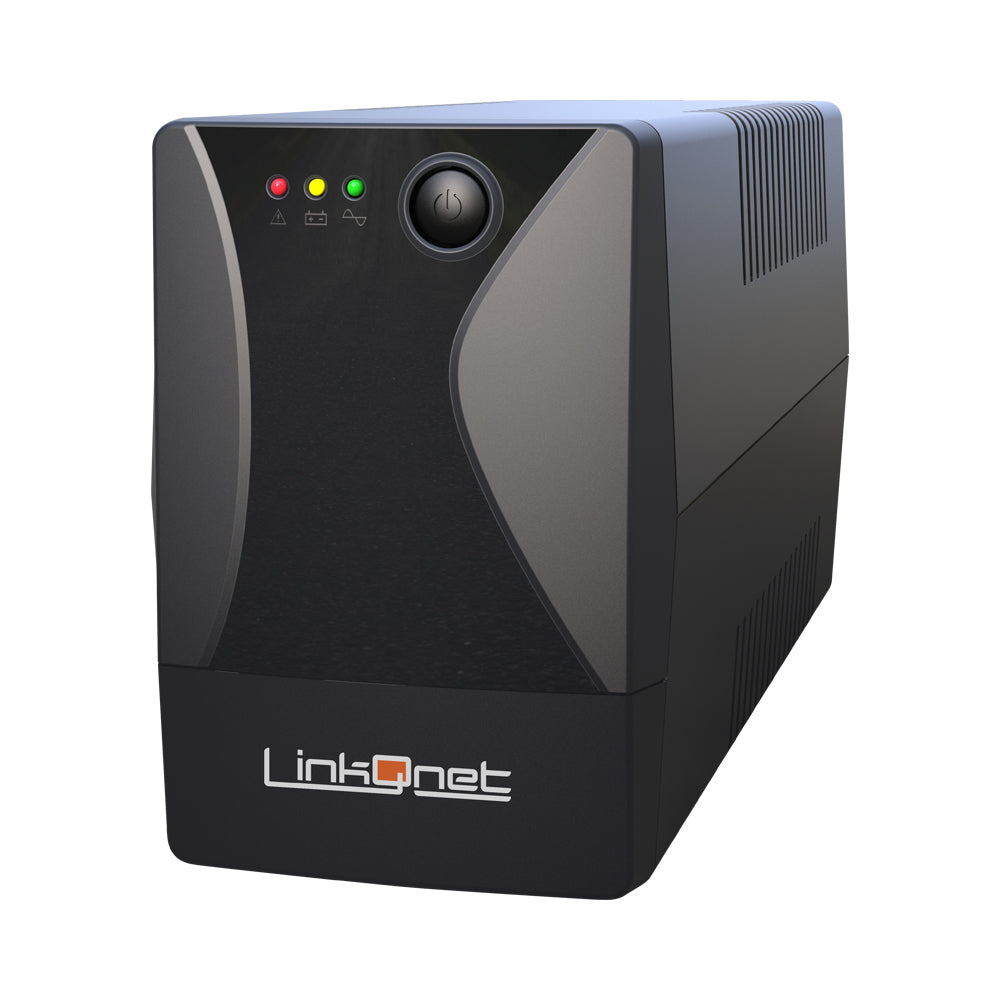

LINKQNET 2000VA/1200W,230AC/50HZ,LED DISPLAY,9AH

Features

• Comprehensive Power Protection - Protects connected devices from surges, spikes and power fluctuations
• Automatic Voltage Regulation (AVR) - Boost and buck AVR stabilises voltage for reliable power output
• Built-In Self-Diagnostics - Monitors system health to ensure reliable UPS operation
• Cold Start Capability - Allows the UPS to start directly from battery power when mains power is unavailable
• Off-Mode Charging - Charges the battery even when the UPS is switched off
• Auto Restart - Automatically restarts connected equipment once AC power is restored

Specifications

Capacity

• 2000VA / 1200W

Input

Voltage

• 230VAC

Voltage Range

• 140~300VAC

Frequency Range

• 50Hz / 60Hz (Auto-Sensing)

Output

Ac Voltage Regulation (Battery Mode)

• 220V / 230V / 240V ±10%

Frequency Range (Battery Mode)

• 50Hz ±1Hz or 60Hz ±1Hz

Transfer Time

• Typical 4~8ms, 13ms Max.

Waveform (Battery Mode)

• Simulated Sinewave

Battery

Battery Voltage

• 24V

Battery Number

• 2× 9Ah

Max. Charge Current

• 1A

Indicators

Ac Mode

• Green Light

Battery Mode

• Orange Flash

Fault

• Red Light

Protection

Full Protection

• Short Circuit
• Overload
• Over-Charge
• Over Discharge

Alarm

Battery Mode

• Sounding Every 10 Seconds

Low Battery

• Sounding Every Second

Overload

• Sounding Every 0.5 Seconds

Fault

• Continuous Sounding

Dimensions (W × D × H)

• 345 × 148 × 189mm

Humidity

• 0~90% RH @ 0~40°C (Non-Condensing)

Noise Level

• Less than 40dB

Shipping Dimensions

• Length: 28.5 cm
• Width: 44.5 cm
• Height: 21.5 cm
• Weight: 12.20 kg
