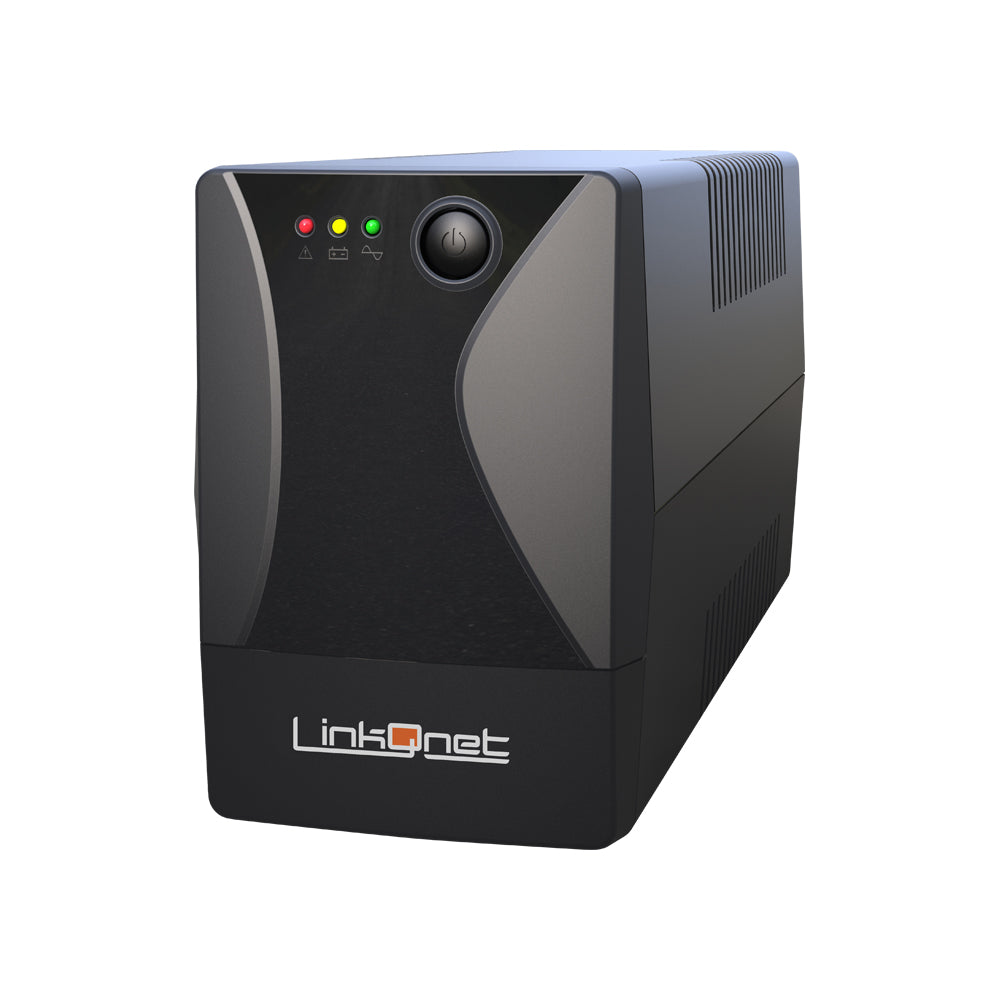

LINKQNET 1000VA/600W,230AC/50HZ LED DISPLAY 7AH

Features

• Comprehensive power protections for surges and spikes
• Boost and buck AVR for voltage stabilisation
• Built-in self-diagnostic function
• Supports cold-start
• Supports off-mode charging
• Auto restart while AC is recovering

Specifications

• Capacity: 1000 VA / 600 W
• Input Voltage: 230 V AC
• Accepted Input Voltage Range: 162 V AC – 290 V AC
• Input Frequency: 50 Hz
• Output Voltage (Rated): 230 V AC
• Output Voltage Regulation (On Battery): ±10%
• Output Frequency (On Battery): 49–51 Hz (50 Hz)
• Mains to Battery Transfer Time: 2 ms – 6 ms
• Output Waveform (On Battery): Simulated sinewave
• Battery Type: 12 V / 7 Ah
• Battery Quantity: 2
• Battery String Voltage: 24 V
• Typical Battery Recharge Time: ~4 hours to 90% capacity
• Protection: Overload, battery discharge, and overcharge protection
• Surge/Lightning Protection: >400 V for 2 seconds (Live to Neutral, Live to Earth, Neutral to Earth)
• Indicators: Red, Green & Yellow LEDs (AC, Power Fail, Fault)
• Operating Environment: 0% to 90% Relative Humidity; 0°C to 40°C (non-condensing)
• Dimensions: 149.3 × 162 × 338 mm
• Weight: ~7.8 kg

Shipping Dimensions

• Length: 19.2 cm
• Width: 23.5 cm
• Height: 40.5 cm
• Weight: 8.10 kg
