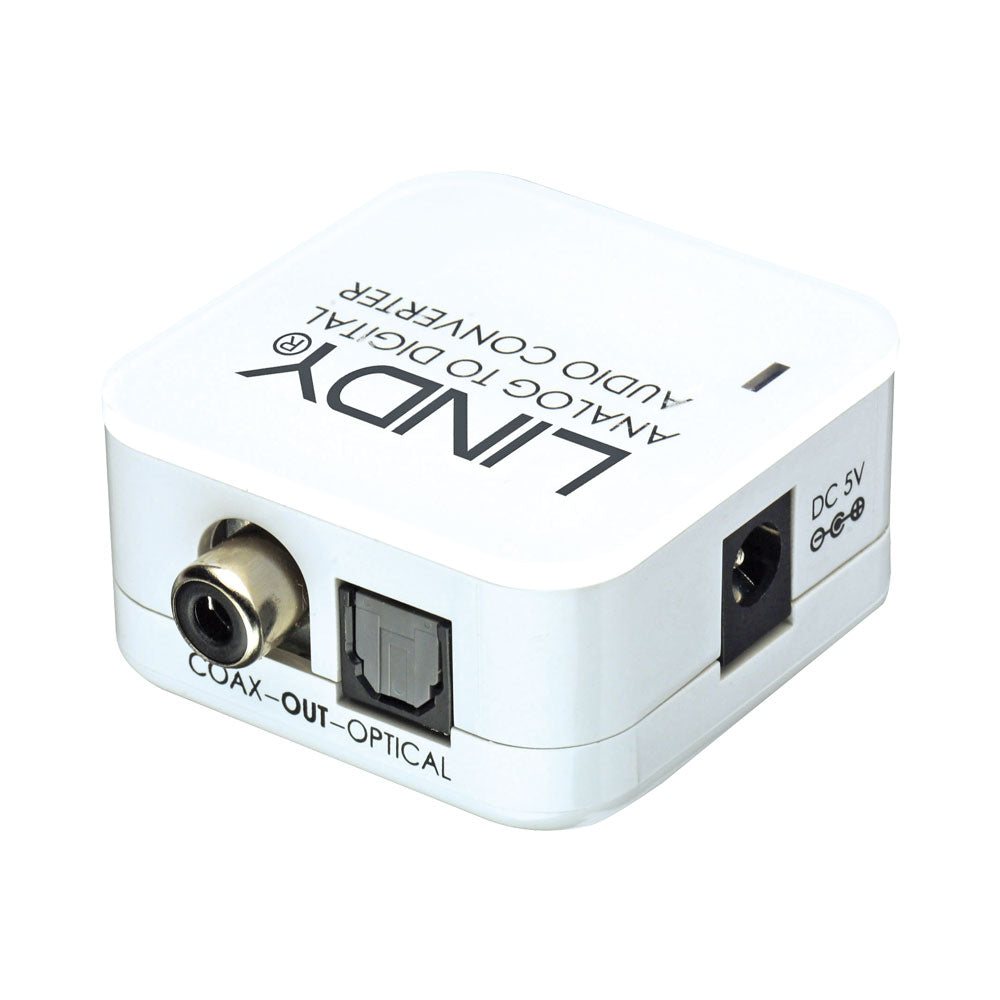

LINDY ANALOGUE STEREO-SPDIF AUDIO CONVERTER(70409)

Features

• Convert analogue stereo audio signals to digital coaxial or optical
• Supports uncompressed digital LPCM signals
• Digital Coaxial and Toslink (Optical) outputs for a dual connectivity and splitting solution
• Minimalistic, compact design and seamless functionality

Specifications

• Audio Interface: RCA (Phono)
• Chipset: MIC-SN75179B+, MIC-74HC04
• Supported Audio: LPCM
• Maximum Supported Audio Sample Rate: 48kHz
• Frequency Response: ±0.5dB
• Signal to Noise Ratio: 90 dB
• Special Features: Output Signal Switch

Connectors

• Input: L/R Analogue (Phono)
• Output: Toslink (Optical), SPDIF (Coaxial)
• Power: 5.5/2.1mm DC Socket

Physical Properties

• Dimensions (Approx.) WxDxH: 46x46x23.5mm
• Housing Material: Plastic
• Net Weight: 0.1kg
• Operating Temperature: 0°C - 40°C
• Storage Temperature: -20°C - 60°C
• Humidity: 20~90% RH (non-condensing)
• Power Requirements: 5VDC 1.2A

Shipping Dimensions

• Length: 18.7 cm
• Width: 14.1 cm
• Height: 5.8 cm
• Weight: 0.25 kg
