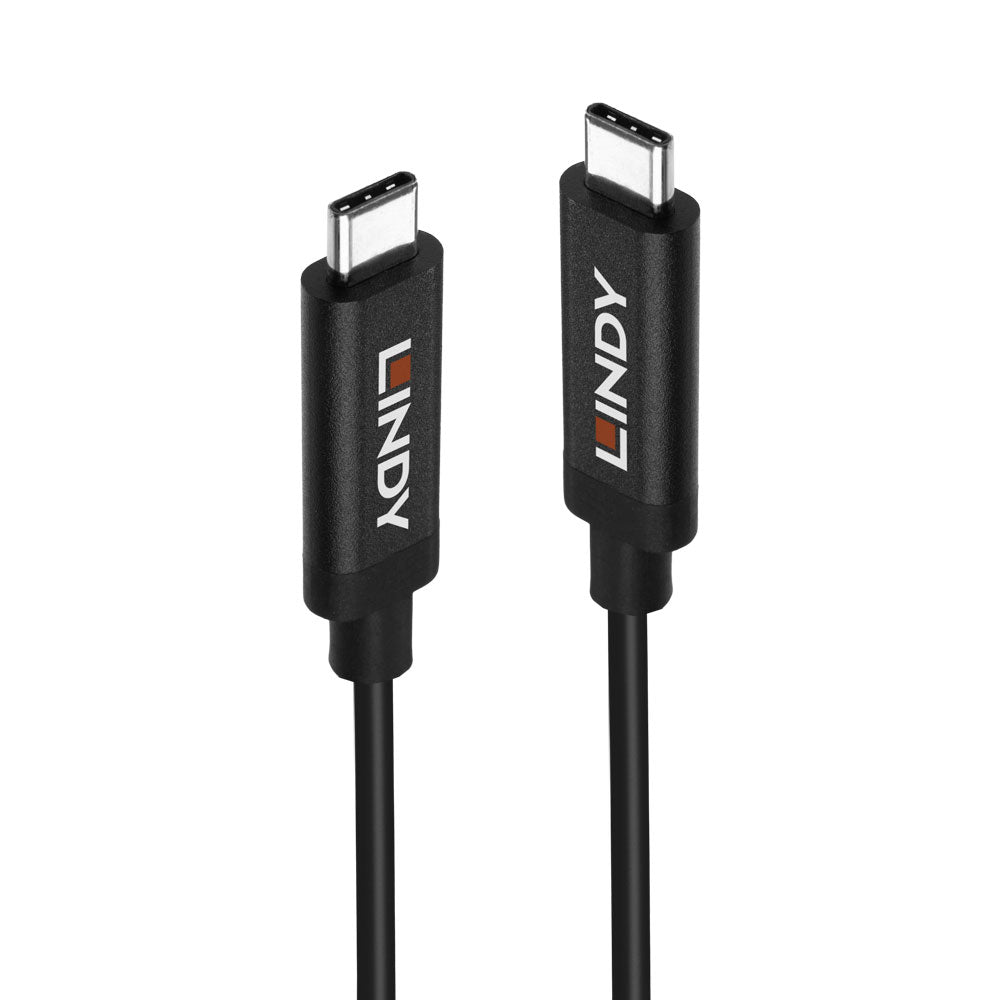

LINDY 5M USB3.1 GEN 2 ACTIVE CABLE (43308)

Features

• 5 metre USB3.2 Gen 2 Active Cable for data and video extension
• Data transfer rates up to 10Gbps
• Supports DisplayPort 1.4 Alternate Mode and video resolutions up to UHD 8K 7680 x 4320 @60Hz including 4K 4096 x 2160 @120Hz
• Supports Power Delivery up to 100W (20V 5A)
• 2 year warranty

Connectors

• Connector A: USB Type-C Male
• Connector B: USB Type-C Male
• Power: PD 5A/20V (100W)
• Housing Material: TPE
• Connector Plating: Nickel plated
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 41 x 12.4 x 8.8mm each

Cable Construction

• Length: 5m
• Standard: USB3.2 / 3.1 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 5.3mm
• Jacket Material: TPE, PP
• Conductor Material: Tinned Copper
• Conductor Gauge: 29AWG + 32AWG + 22AWG
• Shielding: 85% Tinned Copper

Specifications

• Supported Bandwidth: 10Gbps
• Maximum Resolution: UHD 8K 7680 x 4320 @60Hz including 4K 4096 x 2160 @120Hz
• Nominal Attenuation: -15.6Db @5GHz
• Minimum Bend Radius: 106mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 60°C
• Transmission Medium: Twisted Pair
• Transmission Technology: USB3.2 / 3.1 Gen 2

Shipping Dimensions

• Length: 25.5 cm
• Width: 23.6 cm
• Height: 2 cm
• Weight: 0.23 kg
