Features

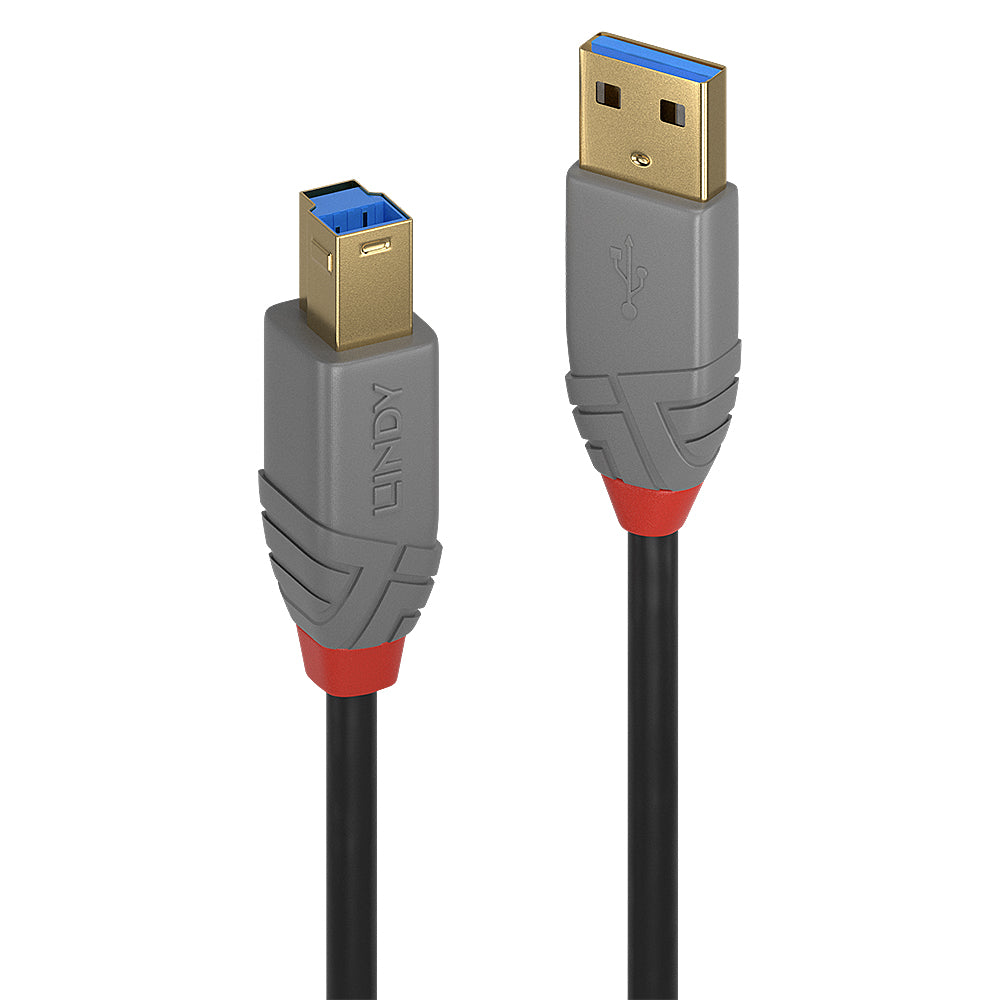

- Professional choice USB3.2 Gen 1 Type-A to B cable for commercial and high performance AV and IT installations
- SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB3.2 Gen 1, USB3.1 Gen 1, USB3.0)
- Robust PVC housing, gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
- 10 year warranty
Connectors
- Connector A: USB3.2 Type-A Male
- Connector B: USB3.2 Type-B Male
- Housing Material: PVC
- Connector Plating: Gold
- Pin Construction: Brass
- Pin Plating: Gold
- Dimensions (approx.) WxDxH:
A: 15.5 x 35 x 7.8mm
B: 12.2 x 35 x 13.5mm
Cable Construction
Standard: USB3.2 Gen 1 (USB3.1 Gen 1, USB3.0)
- Colour: Black
- Type: Round
- Jacket Diameter: 5.5mm
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 24AWG
- Conductor Gauge Data: 28AWG
- Shielding: Aluminium Magnesium Braid 80%
Specifications
- Supported Bandwidth: 5Gbps
- Nominal Attenuation: 0.5MHz - 7.5GHz < 25dB
- Minimum Bend Radius: 48mm
- Operating Temperature: 0°C - 40°C
- Storage Temperature: 0°C - 70°C
