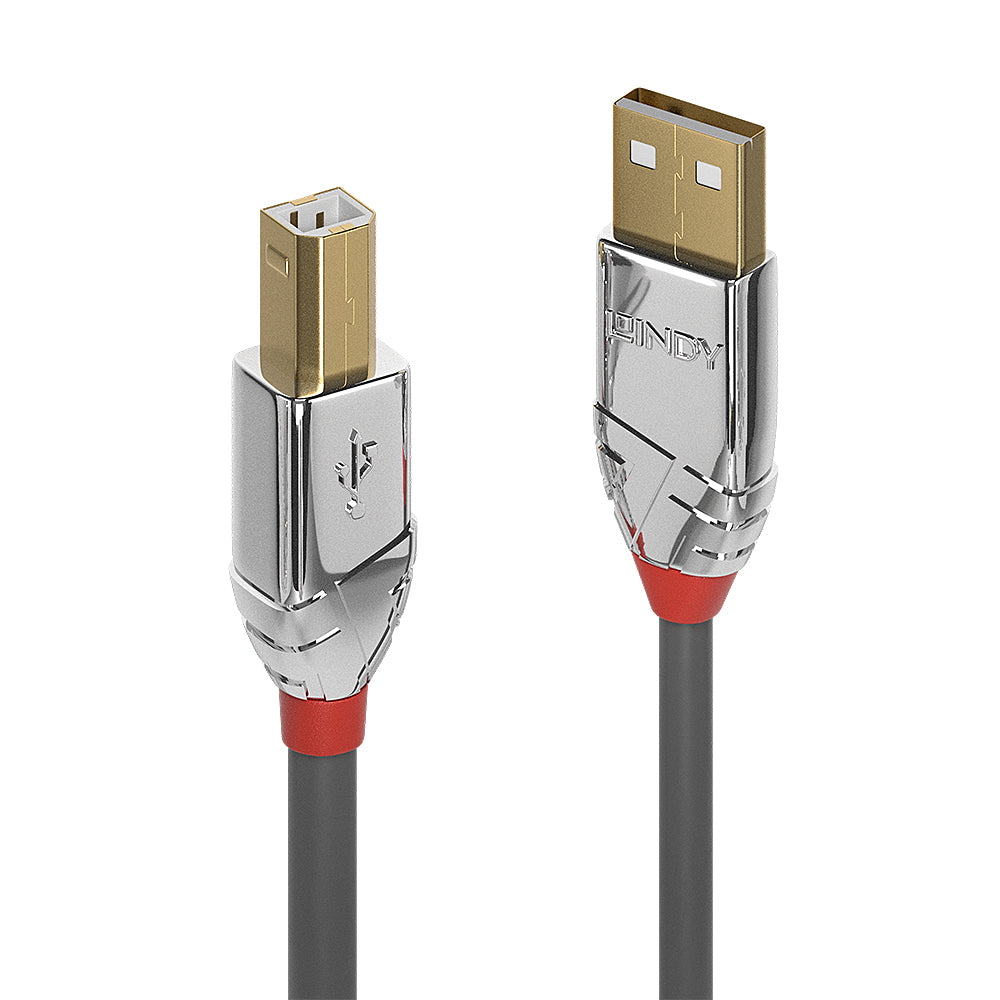

LINDY 3M USB2.0 AM TO BM CROMO L CABLE (36643)

Features

• Superior performance and design USB2.0 Type A to B cable
• Supports data transfer speeds up to 480Mbps
• Chrome design ABS housing, gold plated connectors and contacts
• Double shielded cable, corrosion resistant, high performance tinned copper conductors
• 10 year warranty

Connectors

• Connector A: USB2.0 Type-A Male
• Connector B: USB2.0 Type-B Male
• Housing Material: Chrome Plated, ABS
• Shielding in head shell: Tinplate
• Connector Plating: Gold 1µm
• Pin Construction: Brass
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:

A: 16x35x8.3mm

B: 11.8x35x10.2mm

Cable Construction

• Length: 3m
• Standard: USB2.0
• Colour: Grey
• Type: Round
• Jacket Diameter: 4.6mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 24AWG
• Conductor Gauge Data: 28AWG
• Shielding: Tinned Copper Braid 70%

Specifications

• Supported Bandwidth: 480Mbps
• Nominal Attenuation: 0.5-400MHz < 5.8dB
• Minimum Bend Radius: 55mm
• Operating Temperature: -20°C - 80°C
• Storage Temperature: -25°C - 85°C

Shipping Dimensions

• Length: 17.4 cm
• Width: 1 cm
• Height: 19.4 cm
• Weight: 0.12 kg
