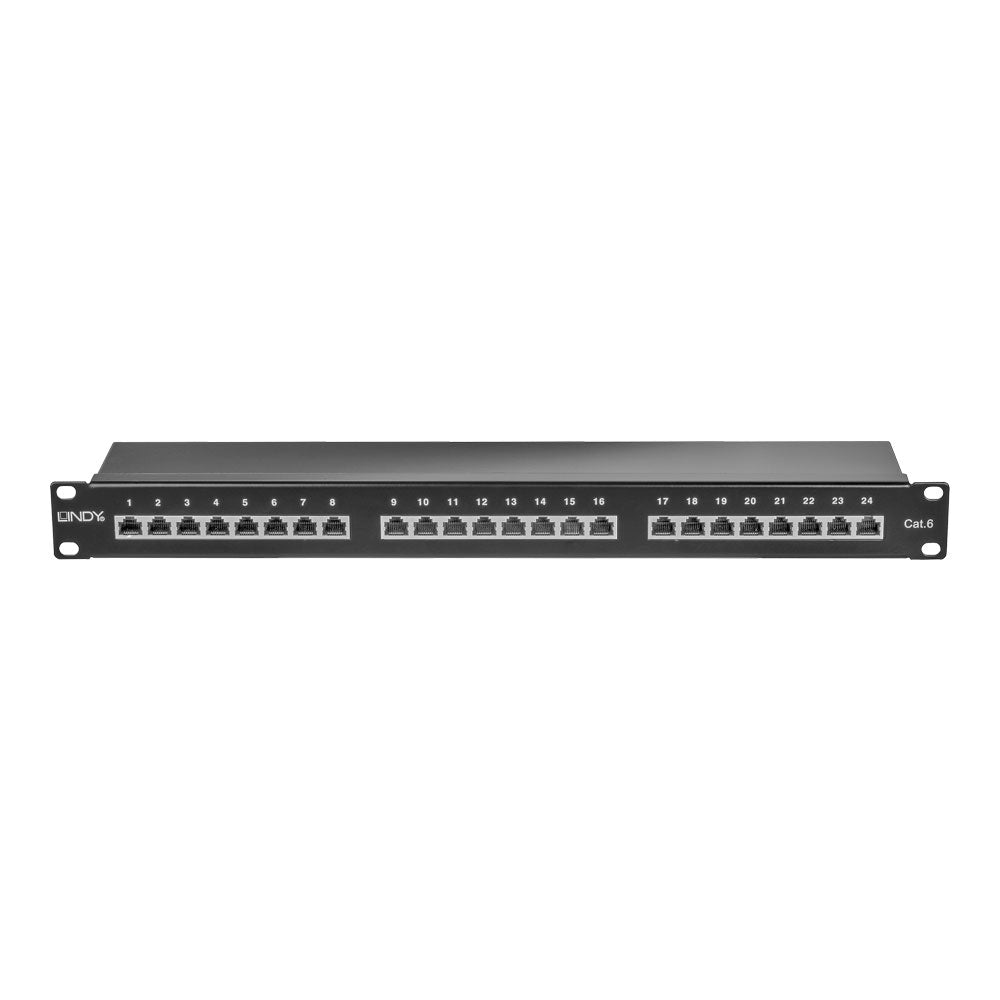

LINDY 24 PORT STP 1U CAT6 PATCHPANEL BLACK (25990)

Features

• 24 Fully shielded RJ45 ports
• High quality angled terminal block contacts
• CAT6 class E compliant

Specifications

• Compliant with EC60603-7-51, ISO/IEC 11801 AMD 2, CENELEC EN 50173-1, permanent link/channel ANSI/TIA-568-C.2
• Accepts 22-26AWG solid core wire
• Dual-type terminal blocks (for Krone/110 compatible punchdown tools)
• Minimum plug and jack contact force 100g
• Plug insertion lifespan, minimum 750-cycles
• Temperature range: Storage -40~85°C / Operation 0~70°C
• Cover and frame made from power coated steel
• Dimensions (W × D × H): 483 × 100 × 44mm

Shipping Dimensions

• Length: 55 cm
• Width: 15 cm
• Height: 10 cm
• Weight: 1.00 kg
