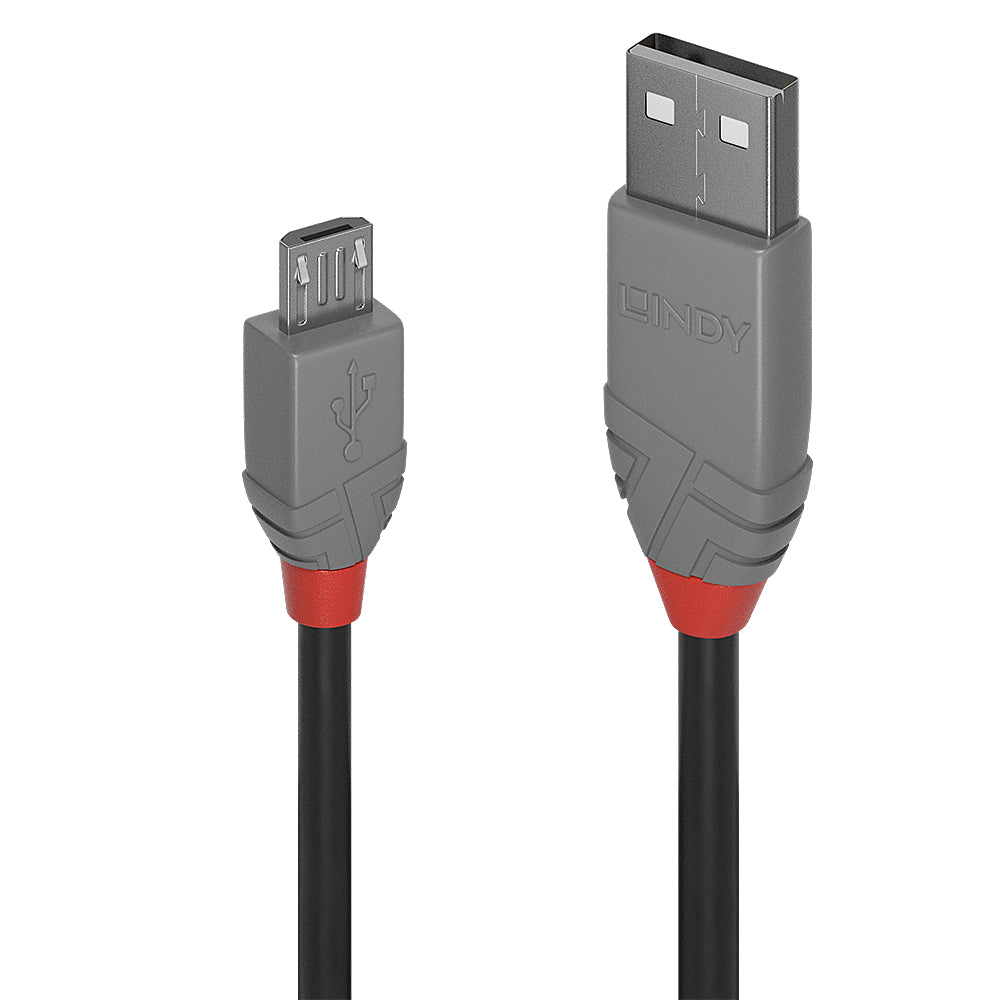

LINDY 1M USB2.0 AM TO MICRO-B CBL ANTHRA (36732)

Features

• Professional choice USB2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Connectors

• Connector A: USB2.0 Type A Male
• Connector B: USB2.0 Type Micro-B Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:

A: 15.5 x 35 x 7.8mm

Micro-B:10 x 24 x 7.6mm

Cable Construction

• Length: 1m
• Standard: USB2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 3.5mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 28AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Magnesium Braid 57%

Specifications

• Supported Bandwidth: 480Mbps
• Nominal Attenuation: 0.5-400MHz < 5.8dB
• Minumum Bend Radius: 16mm
• Operating Temperature: 0°C - 40°C
• Storage Temperature: 0°C - 70°C

Shipping Dimensions

• Length: 17.4 cm
• Width: 1 cm
• Height: 19.4 cm
• Weight: 0.04 kg
