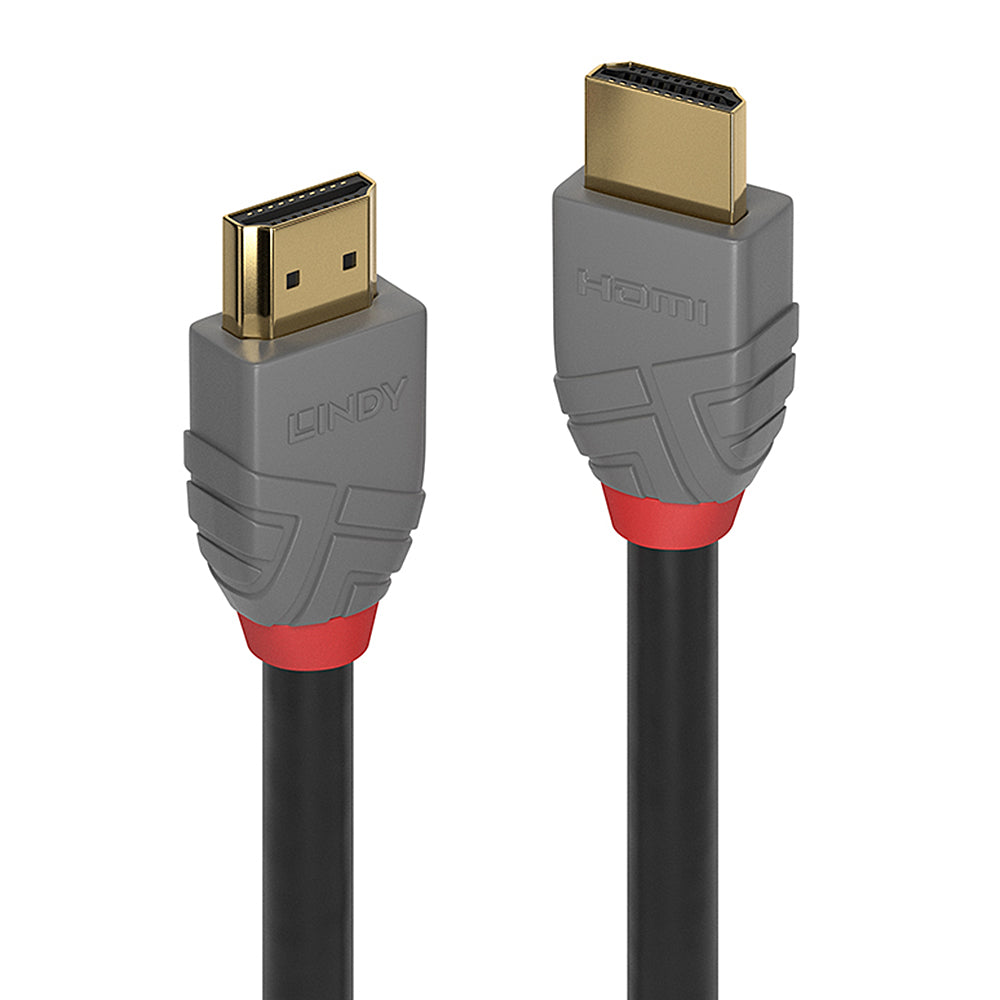

LINDY 1M HDMI MM HIGH SPEED CABLE-ANTHRA (36962)

Features

• Professional choice High Speed HDMI cable for commercial and high performance AV and IT installations
• Supports UHD resolutions up to 4096x2160 @60Hz and HDTV resolutions up to 1080p
• Robust PVC housing, 24K gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
• 10 year warranty

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: PVC
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20x34.2x10.9mm

Cable Construction

• Length: 1m
• Standard: High Speed HDMI with Ethernet
• Colour: Black
• Type: Round
• Jacket Diameter: 6mm
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Copper Braid, 65%

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 48mm
• Operating Temperature: -10°C - 80°C
• Storage Temperature: -10°C - 80°C
• ATC Approved: Yes

Shipping Dimensions

• Length: 17.4 cm
• Width: 1 cm
• Height: 19.4 cm
• Weight: 0.06 kg
